Reference documentation for deal.II version 9.4.0
\(\newcommand{\dealvcentcolon}{\mathrel{\mathop{:}}}\) \(\newcommand{\dealcoloneq}{\dealvcentcolon\mathrel{\mkern-1.2mu}=}\) \(\newcommand{\jump}[1]{\left[\!\left[ #1 \right]\!\right]}\) \(\newcommand{\average}[1]{\left\{\!\left\{ #1 \right\}\!\right\}}\)
Public Types | Public Member Functions | Static Public Member Functions | Public Attributes | List of all members
GridOutFlags::Vtu Struct Reference

#include <deal.II/grid/grid_out.h>

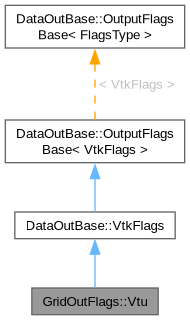

Inheritance diagram for GridOutFlags::Vtu:
[legend]

Public Types

enum  ZlibCompressionLevel { no_compression , best_speed , best_compression , default_compression }


Public Member Functions

 Vtu (const bool serialize_triangulation=false)

void parse_parameters (const ParameterHandler &prm)

std::size_t memory_consumption () const


Static Public Member Functions

static void declare_parameters (ParameterHandler &prm)


Public Attributes

bool serialize_triangulation

double time

unsigned int cycle

bool print_date_and_time

ZlibCompressionLevel compression_level

bool write_higher_order_cells

std::map< std::string, std::string > physical_units


Detailed Description

Flags for grid output in Vtu format. These flags are the same as those declared in DataOutBase::VtkFlags, with the addition of a flag that determines if you want to add a entry in the vtu file (which is really a xml file) containing the entire serialization of the triangulation.

Definition at line 905 of file grid_out.h.

Constructor & Destructor Documentation

◆ Vtu()

GridOutFlags::Vtu::Vtu ( const bool  serialize_triangulation = false)
inline

Definition at line 907 of file grid_out.h.

Member Function Documentation

◆ declare_parameters()

void DataOutBase::OutputFlagsBase< VtkFlags >::declare_parameters ( ParameterHandler prm)
staticinherited

Declare all flags with name and type as offered by this class, for use in input files.

This method does nothing, but child classes may override this method to add fields to prm.

Definition at line 555 of file data_out_base.h.

◆ parse_parameters()

void DataOutBase::OutputFlagsBase< VtkFlags >::parse_parameters ( const ParameterHandler prm)
inherited

Read the parameters declared in declare_parameters() and set the flags for this output format accordingly.

This method does nothing, but child classes may override this method to add fields to prm.

Definition at line 565 of file data_out_base.h.

◆ memory_consumption()

std::size_t DataOutBase::OutputFlagsBase< VtkFlags >::memory_consumption
inherited

Return an estimate for the memory consumption, in bytes, of this object. This is not exact (but will usually be close) because calculating the memory usage of trees (e.g., std::map) is difficult.

Definition at line 574 of file data_out_base.h.

Member Data Documentation

◆ serialize_triangulation

bool GridOutFlags::Vtu::serialize_triangulation

Add to the vtu file also the serialized triangulation.

Definition at line 914 of file grid_out.h.


The documentation for this struct was generated from the following file:
