Functions::CutOffFunctionW1< dim > Class Template Reference

#include <deal.II/base/function_lib.h>

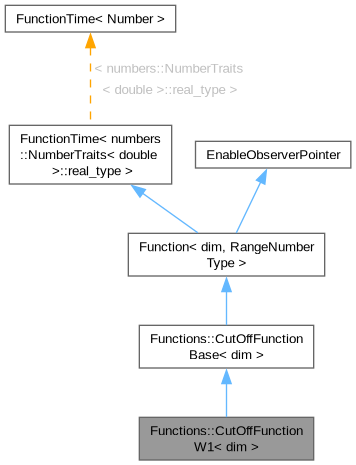

Inheritance diagram for Functions::CutOffFunctionW1< dim >:

Public Types
using	time_type

Public Member Functions
	CutOffFunctionW1 (const double radius=1., const Point< dim >=Point< dim >(), const unsigned int n_components=1, const unsigned int select=CutOffFunctionBase< dim >::no_component, const bool integrate_to_one=false)
virtual double	value (const Point< dim > &p, const unsigned int component=0) const override
virtual void	value_list (const std::vector< Point< dim > > &points, std::vector< double > &values, const unsigned int component=0) const override
virtual void	vector_value_list (const std::vector< Point< dim > > &points, std::vector< Vector< double > > &values) const override
virtual void	set_center (const Point< dim > &p)
virtual void	set_radius (const double r)
const Point< dim > &	get_center () const
double	get_radius () const
bool	integrates_to_one () const
virtual void	vector_value (const Point< dim > &p, Vector< RangeNumberType > &values) const
virtual void	value_list (const std::vector< Point< dim > > &points, std::vector< RangeNumberType > &values, const unsigned int component=0) const
virtual void	vector_value_list (const std::vector< Point< dim > > &points, std::vector< Vector< RangeNumberType > > &values) const
virtual void	vector_values (const std::vector< Point< dim > > &points, std::vector< std::vector< RangeNumberType > > &values) const
virtual Tensor< 1, dim, RangeNumberType >	gradient (const Point< dim > &p, const unsigned int component=0) const
virtual void	vector_gradient (const Point< dim > &p, std::vector< Tensor< 1, dim, RangeNumberType > > &gradients) const
virtual void	gradient_list (const std::vector< Point< dim > > &points, std::vector< Tensor< 1, dim, RangeNumberType > > &gradients, const unsigned int component=0) const
virtual void	vector_gradients (const std::vector< Point< dim > > &points, std::vector< std::vector< Tensor< 1, dim, RangeNumberType > > > &gradients) const
virtual void	vector_gradient_list (const std::vector< Point< dim > > &points, std::vector< std::vector< Tensor< 1, dim, RangeNumberType > > > &gradients) const
virtual RangeNumberType	laplacian (const Point< dim > &p, const unsigned int component=0) const
virtual void	vector_laplacian (const Point< dim > &p, Vector< RangeNumberType > &values) const
virtual void	laplacian_list (const std::vector< Point< dim > > &points, std::vector< RangeNumberType > &values, const unsigned int component=0) const
virtual void	vector_laplacian_list (const std::vector< Point< dim > > &points, std::vector< Vector< RangeNumberType > > &values) const
virtual SymmetricTensor< 2, dim, RangeNumberType >	hessian (const Point< dim > &p, const unsigned int component=0) const
virtual void	vector_hessian (const Point< dim > &p, std::vector< SymmetricTensor< 2, dim, RangeNumberType > > &values) const
virtual void	hessian_list (const std::vector< Point< dim > > &points, std::vector< SymmetricTensor< 2, dim, RangeNumberType > > &values, const unsigned int component=0) const
virtual void	vector_hessian_list (const std::vector< Point< dim > > &points, std::vector< std::vector< SymmetricTensor< 2, dim, RangeNumberType > > > &values) const
virtual std::size_t	memory_consumption () const
numbers::NumberTraits< double >::real_type	get_time () const
virtual void	set_time (const numbers::NumberTraits< double >::real_type new_time)
virtual void	advance_time (const numbers::NumberTraits< double >::real_type delta_t)
template<class Archive >
void	serialize (Archive &ar, const unsigned int version)
Subscriptor functionality
Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.
void	subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const
void	unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const
unsigned int	n_subscriptions () const
template<typename StreamType >
void	list_subscribers (StreamType &stream) const
void	list_subscribers () const

Static Public Member Functions
static ::ExceptionBase &	ExcInUse (int arg1, std::string arg2, std::string arg3)
static ::ExceptionBase &	ExcNoSubscriber (std::string arg1, std::string arg2)

Public Attributes
const unsigned int	n_components

Static Public Attributes
static const unsigned int	no_component = numbers::invalid_unsigned_int
static constexpr unsigned int	dimension = dim

Protected Attributes
Point< dim >	center
double	radius
const unsigned int	selected
bool	integrate_to_one
const double	unitary_integral_value
double	rescaling

Private Types
using	map_value_type = decltype(counter_map)::value_type
using	map_iterator = decltype(counter_map)::iterator

Private Member Functions
void	check_no_subscribers () const noexcept

Private Attributes
numbers::NumberTraits< double >::real_type	time
std::atomic< unsigned int >	counter
std::map< std::string, unsigned int >	counter_map
std::vector< std::atomic< bool > * >	validity_pointers
const std::type_info *	object_info

Static Private Attributes
static std::mutex	mutex

Detailed Description

template<int dim>
class Functions::CutOffFunctionW1< dim >

Cut-off function for an arbitrary ball. This function is a cone with support in a ball of certain radius around center. The maximum value is 1. If vector valued, it can be restricted to a single component.

Definition at line 1153 of file function_lib.h.

Member Typedef Documentation

time_type

template<int dim, typename RangeNumberType = double>

using Function< dim, RangeNumberType >::time_type

inherited

Initial value:

 typename FunctionTime<
    typename numbers::NumberTraits<RangeNumberType>::real_type>::time_type

The scalar-valued real type used for representing time.

Definition at line 168 of file function.h.

map_value_type

using Subscriptor::map_value_type = decltype(counter_map)::value_type

privateinherited

The data type used in counter_map.

Definition at line 229 of file subscriptor.h.

map_iterator

using Subscriptor::map_iterator = decltype(counter_map)::iterator

privateinherited

The iterator type used in counter_map.

Definition at line 234 of file subscriptor.h.

Constructor & Destructor Documentation

CutOffFunctionW1()

template<int dim>

Functions::CutOffFunctionW1< dim >::CutOffFunctionW1	(	const double	radius = 1.,
		const Point< dim >	p = Point<dim>(),
		const unsigned int	n_components = 1,
		const unsigned int	select = CutOffFunctionBase<dim>::no_component,
		const bool	integrate_to_one = false )

Constructor. Arguments are the center of the ball and its radius.

If an argument select is given, the cut-off function will be non-zero for this component only.

Definition at line 280 of file function_lib_cutoff.cc.

Member Function Documentation

value()

template<int dim>

double Functions::CutOffFunctionW1< dim >::value ( const Point< dim > & p, const unsigned int component = 0 ) const

overridevirtual

Function value at one point.

Reimplemented from Function< dim, RangeNumberType >.

Definition at line 296 of file function_lib_cutoff.cc.

value_list() [1/2]

template<int dim>

void Functions::CutOffFunctionW1< dim >::value_list ( const std::vector< Point< dim > > & points, std::vector< double > & values, const unsigned int component = 0 ) const

overridevirtual

Function values at multiple points.

Definition at line 313 of file function_lib_cutoff.cc.

vector_value_list() [1/2]

template<int dim>

void Functions::CutOffFunctionW1< dim >::vector_value_list ( const std::vector< Point< dim > > & points, std::vector< Vector< double > > & values ) const

overridevirtual

Function values at multiple points.

Definition at line 337 of file function_lib_cutoff.cc.

set_center()

template<int dim>

void Functions::CutOffFunctionBase< dim >::set_center ( const Point< dim > & p )

virtualinherited

Set the center of the ball to the point p.

Reimplemented in Functions::CutOffFunctionTensorProduct< dim >.

Definition at line 53 of file function_lib_cutoff.cc.

set_radius()

template<int dim>

void Functions::CutOffFunctionBase< dim >::set_radius ( const double r )

virtualinherited

Set the radius of the ball to r

Reimplemented in Functions::CutOffFunctionTensorProduct< dim >.

Definition at line 71 of file function_lib_cutoff.cc.

get_center()

template<int dim>

const Point< dim > & Functions::CutOffFunctionBase< dim >::get_center ( ) const

inherited

Return the center stored in this object.

Definition at line 62 of file function_lib_cutoff.cc.

get_radius()

template<int dim>

double Functions::CutOffFunctionBase< dim >::get_radius ( ) const

inherited

Return the radius stored in this object.

Definition at line 86 of file function_lib_cutoff.cc.

integrates_to_one()

template<int dim>

bool Functions::CutOffFunctionBase< dim >::integrates_to_one ( ) const

inherited

Return a boolean indicating whether this function integrates to one.

Definition at line 95 of file function_lib_cutoff.cc.

vector_value()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_value ( const Point< dim > & p, Vector< RangeNumberType > & values ) const

virtualinherited

Return all components of a vector-valued function at a given point.

values shall have the right size beforehand, i.e. n_components.

The default implementation will call value() for each component.

Reimplemented in Functions::ConstantFunction< dim, double >.

value_list() [2/2]

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::value_list ( const std::vector< Point< dim > > & points, std::vector< RangeNumberType > & values, const unsigned int component = 0 ) const

virtualinherited

Set values to the point values of the specified component of the function at the points. It is assumed that values already has the right size, i.e. the same size as the points array.

By default, this function repeatedly calls value() for each point separately, to fill the output array.

Reimplemented in Functions::ConstantFunction< dim, double >.

vector_value_list() [2/2]

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_value_list ( const std::vector< Point< dim > > & points, std::vector< Vector< RangeNumberType > > & values ) const

virtualinherited

Set values to the point values of the function at the points. It is assumed that values already has the right size, i.e. the same size as the points array, and that all elements be vectors with the same number of components as this function has.

By default, this function repeatedly calls vector_value() for each point separately, to fill the output array.

Reimplemented in Functions::ConstantFunction< dim, double >.

vector_values()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_values ( const std::vector< Point< dim > > & points, std::vector< std::vector< RangeNumberType > > & values ) const

virtualinherited

For each component of the function, fill a vector of values, one for each point.

The default implementation of this function in Function calls value_list() for each component. In order to improve performance, this can be reimplemented in derived classes to speed up performance.

gradient()

template<int dim, typename RangeNumberType = double>

virtual Tensor< 1, dim, RangeNumberType > Function< dim, RangeNumberType >::gradient ( const Point< dim > & p, const unsigned int component = 0 ) const

virtualinherited

Return the gradient of the specified component of the function at the given point.

Reimplemented in AutoDerivativeFunction< dim >, FunctionFromFunctionObjects< dim, RangeNumberType >, Functions::Bessel1< dim >, Functions::ConstantFunction< dim, RangeNumberType >, Functions::ConstantFunction< dim, double >, Functions::CoordinateRestriction< dim >, Functions::CosineFunction< dim >, Functions::CosineGradFunction< dim >, Functions::CSpline< dim >, Functions::CutOffFunctionC1< dim >, Functions::CutOffFunctionCinfty< dim >, Functions::CutOffFunctionTensorProduct< dim >, Functions::ExpFunction< dim >, Functions::FEFieldFunction< dim, VectorType, spacedim >, Functions::FourierCosineFunction< dim >, Functions::FourierCosineSum< dim >, Functions::FourierSineFunction< dim >, Functions::FourierSineSum< dim >, Functions::IdentityFunction< dim, RangeNumberType >, Functions::InterpolatedTensorProductGridData< dim >, Functions::InterpolatedUniformGridData< dim >, Functions::JumpFunction< dim >, Functions::Monomial< dim, Number >, Functions::PillowFunction< dim >, Functions::Polynomial< dim >, Functions::Q1WedgeFunction< dim >, Functions::SignedDistance::Ellipsoid< dim >, Functions::SignedDistance::Plane< dim >, Functions::SignedDistance::Sphere< dim >, Functions::SlitSingularityFunction< dim >, Functions::Spherical< dim >, Functions::SquareFunction< dim >, Functions::SymbolicFunction< dim, RangeNumberType >, NonMatching::internal::DiscreteQuadratureGeneratorImplementation::RefSpaceFEFieldFunction< dim, VectorType >, and VectorFunctionFromTensorFunction< dim, RangeNumberType >.

vector_gradient()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_gradient ( const Point< dim > & p, std::vector< Tensor< 1, dim, RangeNumberType > > & gradients ) const

virtualinherited

Return the gradient of all components of the function at the given point.

Reimplemented in Functions::ConstantFunction< dim, double >.

gradient_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::gradient_list ( const std::vector< Point< dim > > & points, std::vector< Tensor< 1, dim, RangeNumberType > > & gradients, const unsigned int component = 0 ) const

virtualinherited

Set gradients to the gradients of the specified component of the function at the points. It is assumed that gradients already has the right size, i.e. the same size as the points array.

Reimplemented in Functions::ConstantFunction< dim, double >.

vector_gradients()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_gradients ( const std::vector< Point< dim > > & points, std::vector< std::vector< Tensor< 1, dim, RangeNumberType > > > & gradients ) const

virtualinherited

For each component of the function, fill a vector of gradient values, one for each point.

The default implementation of this function in Function calls value_list() for each component. In order to improve performance, this can be reimplemented in derived classes to speed up performance.

vector_gradient_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_gradient_list ( const std::vector< Point< dim > > & points, std::vector< std::vector< Tensor< 1, dim, RangeNumberType > > > & gradients ) const

virtualinherited

Set gradients to the gradients of the function at the points, for all components. It is assumed that gradients already has the right size, i.e. the same size as the points array.

The outer loop over gradients is over the points in the list, the inner loop over the different components of the function.

Reimplemented in Functions::ConstantFunction< dim, double >.

laplacian()

template<int dim, typename RangeNumberType = double>

virtual RangeNumberType Function< dim, RangeNumberType >::laplacian ( const Point< dim > & p, const unsigned int component = 0 ) const

virtualinherited

Compute the Laplacian of a given component at point p.

Reimplemented in Functions::ConstantFunction< dim, RangeNumberType >, Functions::ConstantFunction< dim, double >, Functions::CosineFunction< dim >, Functions::CosineGradFunction< dim >, Functions::CSpline< dim >, Functions::ExpFunction< dim >, Functions::FEFieldFunction< dim, VectorType, spacedim >, Functions::FourierCosineFunction< dim >, Functions::FourierCosineSum< dim >, Functions::FourierSineFunction< dim >, Functions::FourierSineSum< dim >, Functions::IdentityFunction< dim, RangeNumberType >, Functions::JumpFunction< dim >, Functions::PillowFunction< dim >, Functions::Q1WedgeFunction< dim >, Functions::SlitSingularityFunction< dim >, Functions::SquareFunction< dim >, and Functions::SymbolicFunction< dim, RangeNumberType >.

vector_laplacian()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_laplacian ( const Point< dim > & p, Vector< RangeNumberType > & values ) const

virtualinherited

Compute the Laplacian of all components at point p and store them in values.

laplacian_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::laplacian_list ( const std::vector< Point< dim > > & points, std::vector< RangeNumberType > & values, const unsigned int component = 0 ) const

virtualinherited

Compute the Laplacian of one component at a set of points.

vector_laplacian_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_laplacian_list ( const std::vector< Point< dim > > & points, std::vector< Vector< RangeNumberType > > & values ) const

virtualinherited

Compute the Laplacians of all components at a set of points.

hessian()

template<int dim, typename RangeNumberType = double>

virtual SymmetricTensor< 2, dim, RangeNumberType > Function< dim, RangeNumberType >::hessian ( const Point< dim > & p, const unsigned int component = 0 ) const

virtualinherited

Compute the Hessian of a given component at point p, that is the gradient of the gradient of the function.

Reimplemented in Functions::ConstantFunction< dim, RangeNumberType >, Functions::ConstantFunction< dim, double >, Functions::CoordinateRestriction< dim >, Functions::CosineFunction< dim >, Functions::CSpline< dim >, Functions::IdentityFunction< dim, RangeNumberType >, Functions::SignedDistance::Plane< dim >, Functions::SignedDistance::Sphere< dim >, Functions::Spherical< dim >, Functions::SymbolicFunction< dim, RangeNumberType >, and NonMatching::internal::DiscreteQuadratureGeneratorImplementation::RefSpaceFEFieldFunction< dim, VectorType >.

vector_hessian()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_hessian ( const Point< dim > & p, std::vector< SymmetricTensor< 2, dim, RangeNumberType > > & values ) const

virtualinherited

Compute the Hessian of all components at point p and store them in values.

hessian_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::hessian_list ( const std::vector< Point< dim > > & points, std::vector< SymmetricTensor< 2, dim, RangeNumberType > > & values, const unsigned int component = 0 ) const

virtualinherited

Compute the Hessian of one component at a set of points.

vector_hessian_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_hessian_list ( const std::vector< Point< dim > > & points, std::vector< std::vector< SymmetricTensor< 2, dim, RangeNumberType > > > & values ) const

virtualinherited

Compute the Hessians of all components at a set of points.

memory_consumption()

template<int dim, typename RangeNumberType = double>

virtual std::size_t Function< dim, RangeNumberType >::memory_consumption ( ) const

virtualinherited

Return an estimate for the memory consumption, in bytes, of this object.

This function is virtual and can be overloaded by derived classes.

Reimplemented in ComponentSelectFunction< dim, RangeNumberType >, FunctionDerivative< dim >, Functions::ConstantFunction< dim, RangeNumberType >, Functions::ConstantFunction< dim, double >, Functions::CSpline< dim >, Functions::FlowFunction< dim >, Functions::FlowFunction< 2 >, Functions::InterpolatedTensorProductGridData< dim >, Functions::InterpolatedUniformGridData< dim >, Functions::JumpFunction< dim >, Functions::Polynomial< dim >, and Functions::Spherical< dim >.

get_time()

numbers::NumberTraits< double >::real_type FunctionTime< numbers::NumberTraits< double >::real_type >::get_time ( ) const

inherited

Return the value of the time variable.

set_time()

virtual void FunctionTime< numbers::NumberTraits< double >::real_type >::set_time ( const numbers::NumberTraits< double >::real_type new_time )

virtualinherited

Set the time to new_time, overwriting the old value.

advance_time()

virtual void FunctionTime< numbers::NumberTraits< double >::real_type >::advance_time ( const numbers::NumberTraits< double >::real_type delta_t )

virtualinherited

Advance the time by the given time step delta_t.

subscribe()

void Subscriptor::subscribe ( std::atomic< bool > *const validity, const std::string & identifier = "" ) const

inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 135 of file subscriptor.cc.

unsubscribe()

void Subscriptor::unsubscribe ( std::atomic< bool > *const validity, const std::string & identifier = "" ) const

inherited

Unsubscribes a user from the object.

Note

The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 155 of file subscriptor.cc.

n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const

inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 300 of file subscriptor.h.

list_subscribers() [1/2]

template<typename StreamType >

void Subscriptor::list_subscribers ( StreamType & stream ) const

inlineinherited

List the subscribers to the input stream.

Definition at line 317 of file subscriptor.h.

list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const

inherited

List the subscribers to deallog.

Definition at line 203 of file subscriptor.cc.

serialize()

template<class Archive >

void Subscriptor::serialize ( Archive & ar, const unsigned int version )

inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 309 of file subscriptor.h.

check_no_subscribers()

void Subscriptor::check_no_subscribers ( ) const

privatenoexceptinherited

Check that there are no objects subscribing to this object. If this check passes then it is safe to destroy the current object. It this check fails then this function will either abort or print an error message to deallog (by using the AssertNothrow mechanism), but will not throw an exception.

Note

Since this function is just a consistency check it does nothing in release mode.

If this function is called when there is an uncaught exception then, rather than aborting, this function prints an error message to the standard error stream and returns.

Definition at line 52 of file subscriptor.cc.

Member Data Documentation

no_component

template<int dim>

const unsigned int Functions::CutOffFunctionBase< dim >::no_component = numbers::invalid_unsigned_int

staticinherited

Value used in the constructor of this and derived classes to denote that no component is selected.

Definition at line 931 of file function_lib.h.

center

template<int dim>

Point<dim> Functions::CutOffFunctionBase< dim >::center

protectedinherited

Center of the integration ball.

Definition at line 995 of file function_lib.h.

radius

template<int dim>

double Functions::CutOffFunctionBase< dim >::radius

protectedinherited

Radius of the ball.

Definition at line 1000 of file function_lib.h.

selected

template<int dim>

const unsigned int Functions::CutOffFunctionBase< dim >::selected

protectedinherited

Component selected. If no_component, the function is the same in all components.

Definition at line 1006 of file function_lib.h.

integrate_to_one

template<int dim>

bool Functions::CutOffFunctionBase< dim >::integrate_to_one

protectedinherited

Flag that controls whether we rescale the value when the radius changes.

Definition at line 1011 of file function_lib.h.

unitary_integral_value

template<int dim>

const double Functions::CutOffFunctionBase< dim >::unitary_integral_value

protectedinherited

The reference integral value. Derived classes should specify what their integral is when radius = 1.0.

Definition at line 1017 of file function_lib.h.

rescaling

template<int dim>

double Functions::CutOffFunctionBase< dim >::rescaling

protectedinherited

Current rescaling to apply the cut-off function.

Definition at line 1022 of file function_lib.h.

dimension

template<int dim, typename RangeNumberType = double>

unsigned int Function< dim, RangeNumberType >::dimension = dim

staticconstexprinherited

Export the value of the template parameter as a static member constant. Sometimes useful for some expression template programming.

Definition at line 158 of file function.h.

n_components

template<int dim, typename RangeNumberType = double>

const unsigned int Function< dim, RangeNumberType >::n_components

inherited

Number of vector components.

Definition at line 163 of file function.h.

time

numbers::NumberTraits< double >::real_type FunctionTime< numbers::NumberTraits< double >::real_type >::time

privateinherited

Store the present time.

Definition at line 112 of file function_time.h.

counter

std::atomic<unsigned int> Subscriptor::counter

mutableprivateinherited

Store the number of objects which subscribed to this object. Initially, this number is zero, and upon destruction it shall be zero again (i.e. all objects which subscribed should have unsubscribed again).

The creator (and owner) of an object is counted in the map below if HE manages to supply identification.

We use the mutable keyword in order to allow subscription to constant objects also.

This counter may be read from and written to concurrently in multithreaded code: hence we use the std::atomic class template.

Definition at line 218 of file subscriptor.h.

counter_map

std::map<std::string, unsigned int> Subscriptor::counter_map

mutableprivateinherited

In this map, we count subscriptions for each different identification string supplied to subscribe().

Definition at line 224 of file subscriptor.h.

validity_pointers

std::vector<std::atomic<bool> *> Subscriptor::validity_pointers

mutableprivateinherited

In this vector, we store pointers to the validity bool in the SmartPointer objects that subscribe to this class.

Definition at line 240 of file subscriptor.h.

object_info

const std::type_info* Subscriptor::object_info

mutableprivateinherited

Pointer to the typeinfo object of this object, from which we can later deduce the class name. Since this information on the derived class is neither available in the destructor, nor in the constructor, we obtain it in between and store it here.

Definition at line 248 of file subscriptor.h.

mutex

std::mutex Subscriptor::mutex

staticprivateinherited

A mutex used to ensure data consistency when accessing the mutable members of this class. This lock is used in the subscribe() and unsubscribe() functions, as well as in list_subscribers().

Definition at line 271 of file subscriptor.h.

---

The documentation for this class was generated from the following files:

• include/deal.II/base/function_lib.h
• source/base/function_lib_cutoff.cc
