#include <deal.II/base/function_derivative.h>

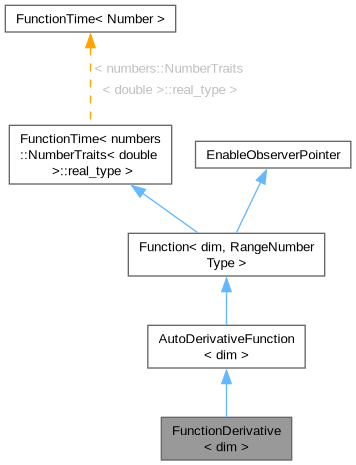

Inheritance diagram for FunctionDerivative< dim >:

[legend]

Public Types
enum	DifferenceFormula { Euler , UpwindEuler , FourthOrder }

using	time_type

Public Member Functions
	FunctionDerivative (const Function< dim > &f, const Point< dim > &direction, const double h=1.e-6)

	FunctionDerivative (const Function< dim > &f, const std::vector< Point< dim > > &direction, const double h=1.e-6)

void	set_formula (typename AutoDerivativeFunction< dim >::DifferenceFormula formula=AutoDerivativeFunction< dim >::Euler)

void	set_h (const double h)

virtual double	value (const Point< dim > &p, const unsigned int component=0) const override

virtual void	vector_value (const Point< dim > &p, Vector< double > &value) const override

virtual void	value_list (const std::vector< Point< dim > > &points, std::vector< double > &values, const unsigned int component=0) const override

virtual std::size_t	memory_consumption () const override

void	set_formula (const DifferenceFormula formula=Euler)

virtual Tensor< 1, dim >	gradient (const Point< dim > &p, const unsigned int component=0) const override

virtual void	vector_gradient (const Point< dim > &p, std::vector< Tensor< 1, dim > > &gradients) const override

virtual void	vector_gradient (const Point< dim > &p, std::vector< Tensor< 1, dim, RangeNumberType > > &gradients) const

virtual void	gradient_list (const std::vector< Point< dim > > &points, std::vector< Tensor< 1, dim > > &gradients, const unsigned int component=0) const override

virtual void	gradient_list (const std::vector< Point< dim > > &points, std::vector< Tensor< 1, dim, RangeNumberType > > &gradients, const unsigned int component=0) const

virtual void	vector_gradient_list (const std::vector< Point< dim > > &points, std::vector< std::vector< Tensor< 1, dim > > > &gradients) const override

virtual void	vector_gradient_list (const std::vector< Point< dim > > &points, std::vector< std::vector< Tensor< 1, dim, RangeNumberType > > > &gradients) const

virtual void	vector_value (const Point< dim > &p, Vector< RangeNumberType > &values) const

virtual void	value_list (const std::vector< Point< dim > > &points, std::vector< RangeNumberType > &values, const unsigned int component=0) const

virtual void	vector_value_list (const std::vector< Point< dim > > &points, std::vector< Vector< RangeNumberType > > &values) const

virtual void	vector_values (const std::vector< Point< dim > > &points, std::vector< std::vector< RangeNumberType > > &values) const

virtual void	vector_gradients (const std::vector< Point< dim > > &points, std::vector< std::vector< Tensor< 1, dim, RangeNumberType > > > &gradients) const

virtual RangeNumberType	laplacian (const Point< dim > &p, const unsigned int component=0) const

virtual void	vector_laplacian (const Point< dim > &p, Vector< RangeNumberType > &values) const

virtual void	laplacian_list (const std::vector< Point< dim > > &points, std::vector< RangeNumberType > &values, const unsigned int component=0) const

virtual void	vector_laplacian_list (const std::vector< Point< dim > > &points, std::vector< Vector< RangeNumberType > > &values) const

virtual SymmetricTensor< 2, dim, RangeNumberType >	hessian (const Point< dim > &p, const unsigned int component=0) const

virtual void	vector_hessian (const Point< dim > &p, std::vector< SymmetricTensor< 2, dim, RangeNumberType > > &values) const

virtual void	hessian_list (const std::vector< Point< dim > > &points, std::vector< SymmetricTensor< 2, dim, RangeNumberType > > &values, const unsigned int component=0) const

virtual void	vector_hessian_list (const std::vector< Point< dim > > &points, std::vector< std::vector< SymmetricTensor< 2, dim, RangeNumberType > > > &values) const

numbers::NumberTraits< double >::real_type	get_time () const

virtual void	set_time (const numbers::NumberTraits< double >::real_type new_time)

virtual void	advance_time (const numbers::NumberTraits< double >::real_type delta_t)

template<class Archive >
void	serialize (Archive &ar, const unsigned int version)

Subscriptor functionality
Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.
void	subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void	unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int	n_subscriptions () const

template<typename StreamType >
void	list_subscribers (StreamType &stream) const

void	list_subscribers () const

Static Public Member Functions
static DifferenceFormula	get_formula_of_order (const unsigned int ord)

static ::ExceptionBase &	ExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBase &	ExcNoSubscriber (std::string arg1, std::string arg2)

Public Attributes
const unsigned int	n_components

Static Public Attributes
static constexpr unsigned int	dimension = dim

Private Types
using	map_value_type = decltype(counter_map)::value_type

using	map_iterator = decltype(counter_map)::iterator

Private Member Functions
void	check_no_subscribers () const noexcept

Private Attributes
const Function< dim > &	f

double	h

AutoDerivativeFunction< dim >::DifferenceFormula	formula

std::vector< Tensor< 1, dim > >	incr

std::vector< Tensor< 1, dim > >	ht

numbers::NumberTraits< double >::real_type	time

std::atomic< unsigned int >	counter

std::map< std::string, unsigned int >	counter_map

std::vector< std::atomic< bool > * >	validity_pointers

const std::type_info *	object_info

Static Private Attributes
static std::mutex	mutex

Detailed Description

template<int dim>
class FunctionDerivative< dim >

Derivative of a function object. The value access functions of this class return the directional derivative of a function with respect to a direction provided on construction. If b is the vector, the derivative b . grad f is computed. This derivative is evaluated directly, not by computing the gradient of f and its scalar product with b.

The derivative is computed numerically, using one of the provided difference formulas (see set_formula for available schemes). Experimenting with h and the difference scheme may be necessary to obtain sufficient results.

Definition at line 43 of file function_derivative.h.

Member Typedef Documentation

◆ time_type

template<int dim, typename RangeNumberType = double>

using Function< dim, RangeNumberType >::time_type

inherited

Initial value:

typename FunctionTime<

typename numbers::NumberTraits<RangeNumberType>::real_type>::time_type

FunctionTime

Definition function_time.h:72

Function::time_type

typename FunctionTime< typename numbers::NumberTraits< RangeNumberType >::real_type >::time_type time_type

Definition function.h:168

numbers::NumberTraits::real_type

number real_type

Definition numbers.h:441

The scalar-valued real type used for representing time.

Definition at line 168 of file function.h.

◆ map_value_type

using Subscriptor::map_value_type = decltype(counter_map)::value_type

privateinherited

The data type used in counter_map.

Definition at line 229 of file subscriptor.h.

◆ map_iterator

using Subscriptor::map_iterator = decltype(counter_map)::iterator

privateinherited

The iterator type used in counter_map.

Definition at line 234 of file subscriptor.h.

Member Enumeration Documentation

◆ DifferenceFormula

template<int dim>

enum AutoDerivativeFunction::DifferenceFormula

inherited

Names of difference formulas.

Enumerator

Euler

The symmetric Euler formula of second order:

\[ u'(t) \approx \frac{u(t+h) - u(t-h)}{2h}. \]

UpwindEuler

The upwind Euler formula of first order:

\[ u'(t) \approx \frac{u(t) - u(t-h)}{h}. \]

FourthOrder

The fourth order scheme

\[ u'(t) \approx \frac{u(t-2h) - 8u(t-h) + 8u(t+h) - u(t+2h)}{12h}. \]

Definition at line 87 of file auto_derivative_function.h.

Constructor & Destructor Documentation

◆ FunctionDerivative() [1/2]

template<int dim>

FunctionDerivative< dim >::FunctionDerivative	(	const Function< dim > &	f,
		const Point< dim > &	direction,
		const double	h = 1.e-6 )

Constructor. Provided are the functions to compute derivatives of, the direction vector of the differentiation and the step size h of the difference formula.

Definition at line 25 of file function_derivative.cc.

◆ FunctionDerivative() [2/2]

template<int dim>

FunctionDerivative< dim >::FunctionDerivative	(	const Function< dim > &	f,
		const std::vector< Point< dim > > &	direction,
		const double	h = 1.e-6 )

Constructor. Provided are the functions to compute derivatives of and the direction vector of the differentiation in each quadrature point and the difference step size.

This is the constructor for a variable velocity field. Most probably, a new object of FunctionDerivative has to be constructed for each set of quadrature points.

The number of quadrature point must still be the same, when values are accessed.

Definition at line 39 of file function_derivative.cc.

Member Function Documentation

◆ set_formula() [1/2]

template<int dim>

void FunctionDerivative< dim >::set_formula ( typename AutoDerivativeFunction< dim >::DifferenceFormula formula = AutoDerivativeFunction<dim>::Euler )

Choose the difference formula. This is set to the default in the constructor.

Formulas implemented right now are first order backward Euler (UpwindEuler), second order symmetric Euler (Euler) and a symmetric fourth order formula (FourthOrder).

Definition at line 56 of file function_derivative.cc.

◆ set_h()

template<int dim>

void FunctionDerivative< dim >::set_h ( const double h )

Change the base step size of the difference formula

Definition at line 80 of file function_derivative.cc.

◆ value()

template<int dim>

double FunctionDerivative< dim >::value	(	const Point< dim > &	p,
		const unsigned int	component = 0 ) const

overridevirtual

Return the value of the function at the given point. Unless there is only one component (i.e. the function is scalar), you should state the component you want to have evaluated; it defaults to zero, i.e. the first component.

Reimplemented from Function< dim, RangeNumberType >.

Definition at line 91 of file function_derivative.cc.

◆ vector_value() [1/2]

template<int dim>

void FunctionDerivative< dim >::vector_value	(	const Point< dim > &	p,
		Vector< double > &	value ) const

overridevirtual

Definition at line 122 of file function_derivative.cc.

◆ value_list() [1/2]

template<int dim>

void FunctionDerivative< dim >::value_list	(	const std::vector< Point< dim > > &	points,
		std::vector< double > &	values,
		const unsigned int	component = 0 ) const

overridevirtual

Definition at line 164 of file function_derivative.cc.

◆ memory_consumption()

template<int dim>

std::size_t FunctionDerivative< dim >::memory_consumption ( ) const

overridevirtual

Return an estimate for the memory consumption, in bytes, of this object. This is not exact (but will usually be close) because calculating the memory usage of trees (e.g., std::map) is difficult.

Reimplemented from Function< dim, RangeNumberType >.

Definition at line 230 of file function_derivative.cc.

◆ set_formula() [2/2]

template<int dim>

void AutoDerivativeFunction< dim >::set_formula ( const DifferenceFormula formula = Euler )

inherited

Choose the difference formula. See the enum DifferenceFormula for available choices.

Definition at line 42 of file auto_derivative_function.cc.

◆ gradient()

template<int dim>

Tensor< 1, dim > AutoDerivativeFunction< dim >::gradient	(	const Point< dim > &	p,
		const unsigned int	component = 0 ) const

overridevirtualinherited

Return the gradient of the specified component of the function at the given point.

Compute numerical difference quotients using the preset DifferenceFormula.

Reimplemented from Function< dim, RangeNumberType >.

Definition at line 74 of file auto_derivative_function.cc.

◆ vector_gradient() [1/2]

template<int dim>

void AutoDerivativeFunction< dim >::vector_gradient	(	const Point< dim > &	p,
		std::vector< Tensor< 1, dim > > &	gradients ) const

overridevirtualinherited

Return the gradient of all components of the function at the given point.

Compute numerical difference quotients using the preset DifferenceFormula.

Definition at line 126 of file auto_derivative_function.cc.

◆ vector_gradient() [2/2]

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_gradient	(	const Point< dim > &	p,
		std::vector< Tensor< 1, dim, RangeNumberType > > &	gradients ) const

virtualinherited

Return the gradient of all components of the function at the given point.

Reimplemented in Functions::ConstantFunction< dim, double >.

◆ gradient_list() [1/2]

template<int dim>

void AutoDerivativeFunction< dim >::gradient_list	(	const std::vector< Point< dim > > &	points,
		std::vector< Tensor< 1, dim > > &	gradients,
		const unsigned int	component = 0 ) const

overridevirtualinherited

Set gradients to the gradients of the specified component of the function at the points. It is assumed that gradients already has the right size, i.e. the same size as the points array.

Compute numerical difference quotients using the preset DifferenceFormula.

Definition at line 203 of file auto_derivative_function.cc.

◆ gradient_list() [2/2]

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::gradient_list	(	const std::vector< Point< dim > > &	points,
		std::vector< Tensor< 1, dim, RangeNumberType > > &	gradients,
		const unsigned int	component = 0 ) const

virtualinherited

Set gradients to the gradients of the specified component of the function at the points. It is assumed that gradients already has the right size, i.e. the same size as the points array.

Reimplemented in Functions::ConstantFunction< dim, double >.

◆ vector_gradient_list() [1/2]

template<int dim>

void AutoDerivativeFunction< dim >::vector_gradient_list	(	const std::vector< Point< dim > > &	points,
		std::vector< std::vector< Tensor< 1, dim > > > &	gradients ) const

overridevirtualinherited

Set gradients to the gradients of the function at the points, for all components. It is assumed that gradients already has the right size, i.e. the same size as the points array.

The outer loop over gradients is over the points in the list, the inner loop over the different components of the function.

Compute numerical difference quotients using the preset DifferenceFormula.

Definition at line 267 of file auto_derivative_function.cc.

◆ vector_gradient_list() [2/2]

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_gradient_list	(	const std::vector< Point< dim > > &	points,
		std::vector< std::vector< Tensor< 1, dim, RangeNumberType > > > &	gradients ) const

virtualinherited

Set gradients to the gradients of the function at the points, for all components. It is assumed that gradients already has the right size, i.e. the same size as the points array.

The outer loop over gradients is over the points in the list, the inner loop over the different components of the function.

Reimplemented in Functions::ConstantFunction< dim, double >.

◆ get_formula_of_order()

template<int dim>

AutoDerivativeFunction< dim >::DifferenceFormula AutoDerivativeFunction< dim >::get_formula_of_order ( const unsigned int ord )

staticinherited

Return a DifferenceFormula of the order ord at minimum.

Definition at line 335 of file auto_derivative_function.cc.

◆ vector_value() [2/2]

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_value	(	const Point< dim > &	p,
		Vector< RangeNumberType > &	values ) const

virtualinherited

Return all components of a vector-valued function at a given point.

values shall have the right size beforehand, i.e. n_components.

The default implementation will call value() for each component.

Reimplemented in Functions::ConstantFunction< dim, double >.

◆ value_list() [2/2]

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::value_list	(	const std::vector< Point< dim > > &	points,
		std::vector< RangeNumberType > &	values,
		const unsigned int	component = 0 ) const

virtualinherited

Set values to the point values of the specified component of the function at the points. It is assumed that values already has the right size, i.e. the same size as the points array.

By default, this function repeatedly calls value() for each point separately, to fill the output array.

Reimplemented in Functions::ConstantFunction< dim, double >.

◆ vector_value_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_value_list	(	const std::vector< Point< dim > > &	points,
		std::vector< Vector< RangeNumberType > > &	values ) const

virtualinherited

Set values to the point values of the function at the points. It is assumed that values already has the right size, i.e. the same size as the points array, and that all elements be vectors with the same number of components as this function has.

By default, this function repeatedly calls vector_value() for each point separately, to fill the output array.

Reimplemented in Functions::ConstantFunction< dim, double >.

◆ vector_values()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_values	(	const std::vector< Point< dim > > &	points,
		std::vector< std::vector< RangeNumberType > > &	values ) const

virtualinherited

For each component of the function, fill a vector of values, one for each point.

The default implementation of this function in Function calls value_list() for each component. In order to improve performance, this can be reimplemented in derived classes to speed up performance.

◆ vector_gradients()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_gradients	(	const std::vector< Point< dim > > &	points,
		std::vector< std::vector< Tensor< 1, dim, RangeNumberType > > > &	gradients ) const

virtualinherited

For each component of the function, fill a vector of gradient values, one for each point.

The default implementation of this function in Function calls value_list() for each component. In order to improve performance, this can be reimplemented in derived classes to speed up performance.

◆ laplacian()

template<int dim, typename RangeNumberType = double>

virtual RangeNumberType Function< dim, RangeNumberType >::laplacian	(	const Point< dim > &	p,
		const unsigned int	component = 0 ) const

virtualinherited

Compute the Laplacian of a given component at point p.

Reimplemented in Functions::ConstantFunction< dim, RangeNumberType >, Functions::ConstantFunction< dim, double >, Functions::CosineFunction< dim >, Functions::CosineGradFunction< dim >, Functions::CSpline< dim >, Functions::ExpFunction< dim >, Functions::FEFieldFunction< dim, VectorType, spacedim >, Functions::FourierCosineFunction< dim >, Functions::FourierCosineSum< dim >, Functions::FourierSineFunction< dim >, Functions::FourierSineSum< dim >, Functions::IdentityFunction< dim, RangeNumberType >, Functions::JumpFunction< dim >, Functions::PillowFunction< dim >, Functions::Q1WedgeFunction< dim >, Functions::SlitSingularityFunction< dim >, Functions::SquareFunction< dim >, and Functions::SymbolicFunction< dim, RangeNumberType >.

◆ vector_laplacian()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_laplacian	(	const Point< dim > &	p,
		Vector< RangeNumberType > &	values ) const

virtualinherited

Compute the Laplacian of all components at point p and store them in values.

◆ laplacian_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::laplacian_list	(	const std::vector< Point< dim > > &	points,
		std::vector< RangeNumberType > &	values,
		const unsigned int	component = 0 ) const

virtualinherited

Compute the Laplacian of one component at a set of points.

◆ vector_laplacian_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_laplacian_list	(	const std::vector< Point< dim > > &	points,
		std::vector< Vector< RangeNumberType > > &	values ) const

virtualinherited

Compute the Laplacians of all components at a set of points.

◆ hessian()

template<int dim, typename RangeNumberType = double>

virtual SymmetricTensor< 2, dim, RangeNumberType > Function< dim, RangeNumberType >::hessian	(	const Point< dim > &	p,
		const unsigned int	component = 0 ) const

virtualinherited

Compute the Hessian of a given component at point p, that is the gradient of the gradient of the function.

Reimplemented in Functions::ConstantFunction< dim, RangeNumberType >, Functions::ConstantFunction< dim, double >, Functions::CoordinateRestriction< dim >, Functions::CosineFunction< dim >, Functions::CSpline< dim >, Functions::IdentityFunction< dim, RangeNumberType >, Functions::SignedDistance::Plane< dim >, Functions::SignedDistance::Sphere< dim >, Functions::Spherical< dim >, Functions::SymbolicFunction< dim, RangeNumberType >, and NonMatching::internal::DiscreteQuadratureGeneratorImplementation::RefSpaceFEFieldFunction< dim, VectorType >.

◆ vector_hessian()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_hessian	(	const Point< dim > &	p,
		std::vector< SymmetricTensor< 2, dim, RangeNumberType > > &	values ) const

virtualinherited

Compute the Hessian of all components at point p and store them in values.

◆ hessian_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::hessian_list	(	const std::vector< Point< dim > > &	points,
		std::vector< SymmetricTensor< 2, dim, RangeNumberType > > &	values,
		const unsigned int	component = 0 ) const

virtualinherited

Compute the Hessian of one component at a set of points.

◆ vector_hessian_list()

template<int dim, typename RangeNumberType = double>

virtual void Function< dim, RangeNumberType >::vector_hessian_list	(	const std::vector< Point< dim > > &	points,
		std::vector< std::vector< SymmetricTensor< 2, dim, RangeNumberType > > > &	values ) const

virtualinherited

Compute the Hessians of all components at a set of points.

◆ get_time()

numbers::NumberTraits< double >::real_type FunctionTime< numbers::NumberTraits< double >::real_type >::get_time ( ) const

inherited

Return the value of the time variable.

◆ set_time()

virtual void FunctionTime< numbers::NumberTraits< double >::real_type >::set_time ( const numbers::NumberTraits< double >::real_type new_time )

virtualinherited

Set the time to new_time, overwriting the old value.

◆ advance_time()

virtual void FunctionTime< numbers::NumberTraits< double >::real_type >::advance_time ( const numbers::NumberTraits< double >::real_type delta_t )

virtualinherited

Advance the time by the given time step delta_t.

◆ subscribe()

void Subscriptor::subscribe	(	std::atomic< bool > *const	validity,
		const std::string &	identifier = "" ) const

inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 135 of file subscriptor.cc.

◆ unsubscribe()

void Subscriptor::unsubscribe	(	std::atomic< bool > *const	validity,
		const std::string &	identifier = "" ) const

inherited

Unsubscribes a user from the object.

Note: The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 155 of file subscriptor.cc.

◆ n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const

inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 300 of file subscriptor.h.

◆ list_subscribers() [1/2]

template<typename StreamType >

void Subscriptor::list_subscribers ( StreamType & stream ) const

inlineinherited

List the subscribers to the input stream.

Definition at line 317 of file subscriptor.h.

◆ list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const

inherited

List the subscribers to deallog.

Definition at line 203 of file subscriptor.cc.

◆ serialize()

template<class Archive >

void Subscriptor::serialize	(	Archive &	ar,
		const unsigned int	version )

inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 309 of file subscriptor.h.

◆ check_no_subscribers()

void Subscriptor::check_no_subscribers ( ) const

privatenoexceptinherited

Check that there are no objects subscribing to this object. If this check passes then it is safe to destroy the current object. It this check fails then this function will either abort or print an error message to deallog (by using the AssertNothrow mechanism), but will not throw an exception.

Note: Since this function is just a consistency check it does nothing in release mode.; If this function is called when there is an uncaught exception then, rather than aborting, this function prints an error message to the standard error stream and returns.

Definition at line 52 of file subscriptor.cc.

Member Data Documentation

◆ f

template<int dim>

const Function<dim>& FunctionDerivative< dim >::f

private

Function for differentiation.

Definition at line 111 of file function_derivative.h.

◆ h

template<int dim>

double FunctionDerivative< dim >::h

private

Step size of the difference formula.

Definition at line 116 of file function_derivative.h.

◆ formula

template<int dim>

AutoDerivativeFunction<dim>::DifferenceFormula FunctionDerivative< dim >::formula

private

Difference formula.

Definition at line 121 of file function_derivative.h.

◆ incr

template<int dim>

std::vector<Tensor<1, dim> > FunctionDerivative< dim >::incr

private

Helper object. Contains the increment vector for the formula.

Definition at line 126 of file function_derivative.h.

◆ ht

template<int dim>

std::vector<Tensor<1, dim> > AutoDerivativeFunction< dim >::ht

privateinherited

Includes the unit vectors scaled by h.

Definition at line 227 of file auto_derivative_function.h.

◆ dimension

template<int dim, typename RangeNumberType = double>

unsigned int Function< dim, RangeNumberType >::dimension = dim

staticconstexprinherited

Export the value of the template parameter as a static member constant. Sometimes useful for some expression template programming.

Definition at line 158 of file function.h.

◆ n_components

template<int dim, typename RangeNumberType = double>

const unsigned int Function< dim, RangeNumberType >::n_components

inherited

Number of vector components.

Definition at line 163 of file function.h.

◆ time

numbers::NumberTraits< double >::real_type FunctionTime< numbers::NumberTraits< double >::real_type >::time

privateinherited

Store the present time.

Definition at line 112 of file function_time.h.

◆ counter

std::atomic<unsigned int> Subscriptor::counter

mutableprivateinherited

Store the number of objects which subscribed to this object. Initially, this number is zero, and upon destruction it shall be zero again (i.e. all objects which subscribed should have unsubscribed again).

The creator (and owner) of an object is counted in the map below if HE manages to supply identification.

We use the mutable keyword in order to allow subscription to constant objects also.

This counter may be read from and written to concurrently in multithreaded code: hence we use the std::atomic class template.

Definition at line 218 of file subscriptor.h.

◆ counter_map

std::map<std::string, unsigned int> Subscriptor::counter_map

mutableprivateinherited

In this map, we count subscriptions for each different identification string supplied to subscribe().

Definition at line 224 of file subscriptor.h.

◆ validity_pointers

std::vector<std::atomic<bool> *> Subscriptor::validity_pointers

mutableprivateinherited

In this vector, we store pointers to the validity bool in the SmartPointer objects that subscribe to this class.

Definition at line 240 of file subscriptor.h.

◆ object_info

const std::type_info* Subscriptor::object_info

mutableprivateinherited

Pointer to the typeinfo object of this object, from which we can later deduce the class name. Since this information on the derived class is neither available in the destructor, nor in the constructor, we obtain it in between and store it here.

Definition at line 248 of file subscriptor.h.

◆ mutex

std::mutex Subscriptor::mutex

staticprivateinherited

A mutex used to ensure data consistency when accessing the mutable members of this class. This lock is used in the subscribe() and unsubscribe() functions, as well as in list_subscribers().

Definition at line 271 of file subscriptor.h.

The documentation for this class was generated from the following files:

include/deal.II/base/function_derivative.h
source/base/function_derivative.cc

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ time_type

◆ map_value_type

◆ map_iterator

Member Enumeration Documentation

◆ DifferenceFormula

Constructor & Destructor Documentation

◆ FunctionDerivative() [1/2]

◆ FunctionDerivative() [2/2]

Member Function Documentation

◆ set_formula() [1/2]

◆ set_h()

◆ value()

◆ vector_value() [1/2]

◆ value_list() [1/2]

◆ memory_consumption()

◆ set_formula() [2/2]

◆ gradient()

◆ vector_gradient() [1/2]

◆ vector_gradient() [2/2]

◆ gradient_list() [1/2]

◆ gradient_list() [2/2]

◆ vector_gradient_list() [1/2]

◆ vector_gradient_list() [2/2]

◆ get_formula_of_order()

◆ vector_value() [2/2]

◆ value_list() [2/2]

◆ vector_value_list()

◆ vector_values()

◆ vector_gradients()

◆ laplacian()

◆ vector_laplacian()

◆ laplacian_list()

◆ vector_laplacian_list()

◆ hessian()

◆ vector_hessian()

◆ hessian_list()

◆ vector_hessian_list()

◆ get_time()

◆ set_time()

◆ advance_time()

◆ subscribe()

◆ unsubscribe()

◆ n_subscriptions()

◆ list_subscribers() [1/2]

◆ list_subscribers() [2/2]

◆ serialize()

◆ check_no_subscribers()

Member Data Documentation

◆ f

◆ h

◆ formula

◆ incr

◆ ht

◆ dimension

◆ n_components

◆ time

◆ counter

◆ counter_map

◆ validity_pointers

◆ object_info

◆ mutex
