Public Types | Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
ChunkSparseMatrixIterators::Accessor< number, Constness > Class Template Reference

#include <deal.II/lac/chunk_sparse_matrix.h>

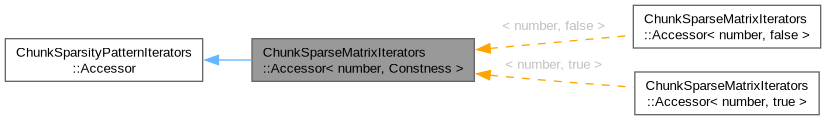

Inheritance diagram for ChunkSparseMatrixIterators::Accessor< number, Constness >:
Inheritance graph
[legend]

Public Types

using size_type = types::global_dof_index


Public Member Functions

number value () const

number & value ()

const ChunkSparseMatrix< number > & get_matrix () const

size_type row () const

std::size_t reduced_index () const

size_type column () const

bool is_valid_entry () const

bool operator== (const Accessor &) const

bool operator< (const Accessor &) const


Protected Member Functions

void advance ()


Protected Attributes

const ChunkSparsityPattern * sparsity_pattern

SparsityPatternIterators::Accessor reduced_accessor

size_type chunk_row

size_type chunk_col


Detailed Description

template<typename number, bool Constness>
class ChunkSparseMatrixIterators::Accessor< number, Constness >

General template for sparse matrix accessors. The first template argument denotes the underlying numeric type, the second the constness of the matrix.

The general template is not implemented, only the specializations for the two possible values of the second template argument. Therefore, the interface listed here only serves as a template provided since doxygen does not link the specializations.

Definition at line 68 of file chunk_sparse_matrix.h.

Member Typedef Documentation

◆ size_type

using ChunkSparsityPatternIterators::Accessor::size_type = types::global_dof_index
inherited

Declare the type for container size.

Definition at line 68 of file chunk_sparsity_pattern.h.

Member Function Documentation

◆ value() [1/2]

template<typename number , bool Constness>
number ChunkSparseMatrixIterators::Accessor< number, Constness >::value ( ) const

Value of this matrix entry.

◆ value() [2/2]

template<typename number , bool Constness>
number & ChunkSparseMatrixIterators::Accessor< number, Constness >::value ( )

Value of this matrix entry.

◆ get_matrix()

template<typename number , bool Constness>
const ChunkSparseMatrix< number > & ChunkSparseMatrixIterators::Accessor< number, Constness >::get_matrix ( ) const

Return a reference to the matrix into which this accessor points. Note that in the present case, this is a constant reference.

◆ row()

size_type ChunkSparsityPatternIterators::Accessor::row ( ) const
inherited

Row number of the element represented by this object. This function can only be called for entries for which is_valid_entry() is true.

◆ reduced_index()

std::size_t ChunkSparsityPatternIterators::Accessor::reduced_index ( ) const
inherited

Return the global index from the reduced sparsity pattern.

◆ column()

size_type ChunkSparsityPatternIterators::Accessor::column ( ) const
inherited

Column number of the element represented by this object. This function can only be called for entries for which is_valid_entry() is true.

◆ is_valid_entry()

bool ChunkSparsityPatternIterators::Accessor::is_valid_entry ( ) const
inherited

Return whether the sparsity pattern entry pointed to by this iterator is valid or not. Note that after compressing the sparsity pattern, all entries are valid. However, before compression, the sparsity pattern allocated some memory to be used while still adding new nonzero entries; if you create iterators in this phase of the sparsity pattern's lifetime, you will iterate over elements that are not valid. If this is so, then this function will return false.

◆ operator==()

bool ChunkSparsityPatternIterators::Accessor::operator== ( const Accessor & ) const
inherited

Comparison. True, if both iterators point to the same matrix position.

◆ operator<()

bool ChunkSparsityPatternIterators::Accessor::operator< ( const Accessor & ) const
inherited

Comparison operator. Result is true if either the first row number is smaller or if the row numbers are equal and the first index is smaller.

This function is only valid if both iterators point into the same sparsity pattern.

◆ advance()

void ChunkSparsityPatternIterators::Accessor::advance ( )
protectedinherited

Move the accessor to the next nonzero entry in the matrix.

Member Data Documentation

◆ sparsity_pattern

const ChunkSparsityPattern* ChunkSparsityPatternIterators::Accessor::sparsity_pattern
protectedinherited

The sparsity pattern we operate on accessed.

Definition at line 134 of file chunk_sparsity_pattern.h.

◆ reduced_accessor

SparsityPatternIterators::Accessor ChunkSparsityPatternIterators::Accessor::reduced_accessor
protectedinherited

The accessor of the (reduced) sparsity pattern.

Definition at line 139 of file chunk_sparsity_pattern.h.

◆ chunk_row

size_type ChunkSparsityPatternIterators::Accessor::chunk_row
protectedinherited

Current chunk row number.

Definition at line 144 of file chunk_sparsity_pattern.h.

◆ chunk_col

size_type ChunkSparsityPatternIterators::Accessor::chunk_col
protectedinherited

Current chunk col number.

Definition at line 149 of file chunk_sparsity_pattern.h.

The documentation for this class was generated from the following file:
