ChunkSparsityPatternIterators::Accessor Class Reference

#include <deal.II/lac/chunk_sparsity_pattern.h>

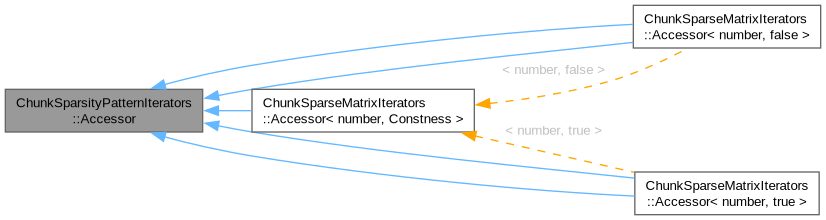

Inheritance diagram for ChunkSparsityPatternIterators::Accessor:
[legend]

Public Types

using size_type = types::global_dof_index


Public Member Functions

 Accessor (const ChunkSparsityPattern *matrix, const size_type row)

 Accessor (const ChunkSparsityPattern *matrix)

size_type row () const

std::size_t reduced_index () const

size_type column () const

bool is_valid_entry () const

bool operator== (const Accessor &) const

bool operator< (const Accessor &) const


Protected Member Functions

void advance ()


Protected Attributes

const ChunkSparsityPatternsparsity_pattern

SparsityPatternIterators::Accessor reduced_accessor

size_type chunk_row

size_type chunk_col


Friends

class Iterator


Detailed Description

Accessor class for iterators into sparsity patterns. This class is also the base class for both const and non-const accessor classes into sparse matrices.

Note that this class only allows read access to elements, providing their row and column number. It does not allow modifying the sparsity pattern itself.

Definition at line 63 of file chunk_sparsity_pattern.h.

Member Typedef Documentation

◆ size_type

Declare the type for container size.

Definition at line 69 of file chunk_sparsity_pattern.h.

Constructor & Destructor Documentation

◆ Accessor() [1/2]

ChunkSparsityPatternIterators::Accessor::Accessor ( const ChunkSparsityPattern matrix,
const size_type  row
)

Constructor.

◆ Accessor() [2/2]

ChunkSparsityPatternIterators::Accessor::Accessor ( const ChunkSparsityPattern matrix)

Constructor. Construct the end accessor for the given sparsity pattern.

Member Function Documentation

◆ row()

size_type ChunkSparsityPatternIterators::Accessor::row ( ) const

Row number of the element represented by this object. This function can only be called for entries for which is_valid_entry() is true.

◆ reduced_index()

std::size_t ChunkSparsityPatternIterators::Accessor::reduced_index ( ) const

Return the global index from the reduced sparsity pattern.

◆ column()

size_type ChunkSparsityPatternIterators::Accessor::column ( ) const

Column number of the element represented by this object. This function can only be called for entries for which is_valid_entry() is true.

◆ is_valid_entry()

bool ChunkSparsityPatternIterators::Accessor::is_valid_entry ( ) const

Return whether the sparsity pattern entry pointed to by this iterator is valid or not. Note that after compressing the sparsity pattern, all entries are valid. However, before compression, the sparsity pattern allocated some memory to be used while still adding new nonzero entries; if you create iterators in this phase of the sparsity pattern's lifetime, you will iterate over elements that are not valid. If this is so, then this function will return false.

◆ operator==()

bool ChunkSparsityPatternIterators::Accessor::operator== ( const Accessor ) const

Comparison. True, if both iterators point to the same matrix position.

◆ operator<()

bool ChunkSparsityPatternIterators::Accessor::operator< ( const Accessor ) const

Comparison operator. Result is true if either the first row number is smaller or if the row numbers are equal and the first index is smaller.

This function is only valid if both iterators point into the same sparsity pattern.

◆ advance()

void ChunkSparsityPatternIterators::Accessor::advance ( )
protected

Move the accessor to the next nonzero entry in the matrix.

Friends And Related Symbol Documentation

◆ Iterator

friend class Iterator
friend

Definition at line 159 of file chunk_sparsity_pattern.h.

Member Data Documentation

◆ sparsity_pattern

const ChunkSparsityPattern* ChunkSparsityPatternIterators::Accessor::sparsity_pattern
protected

The sparsity pattern we operate on accessed.

Definition at line 135 of file chunk_sparsity_pattern.h.

◆ reduced_accessor

SparsityPatternIterators::Accessor ChunkSparsityPatternIterators::Accessor::reduced_accessor
protected

The accessor of the (reduced) sparsity pattern.

Definition at line 140 of file chunk_sparsity_pattern.h.

◆ chunk_row

size_type ChunkSparsityPatternIterators::Accessor::chunk_row
protected

Current chunk row number.

Definition at line 145 of file chunk_sparsity_pattern.h.

◆ chunk_col

size_type ChunkSparsityPatternIterators::Accessor::chunk_col
protected

Current chunk col number.

Definition at line 150 of file chunk_sparsity_pattern.h.


The documentation for this class was generated from the following file:
