LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace > Class Template Reference

#include <deal.II/lac/trilinos_tpetra_precondition.h>

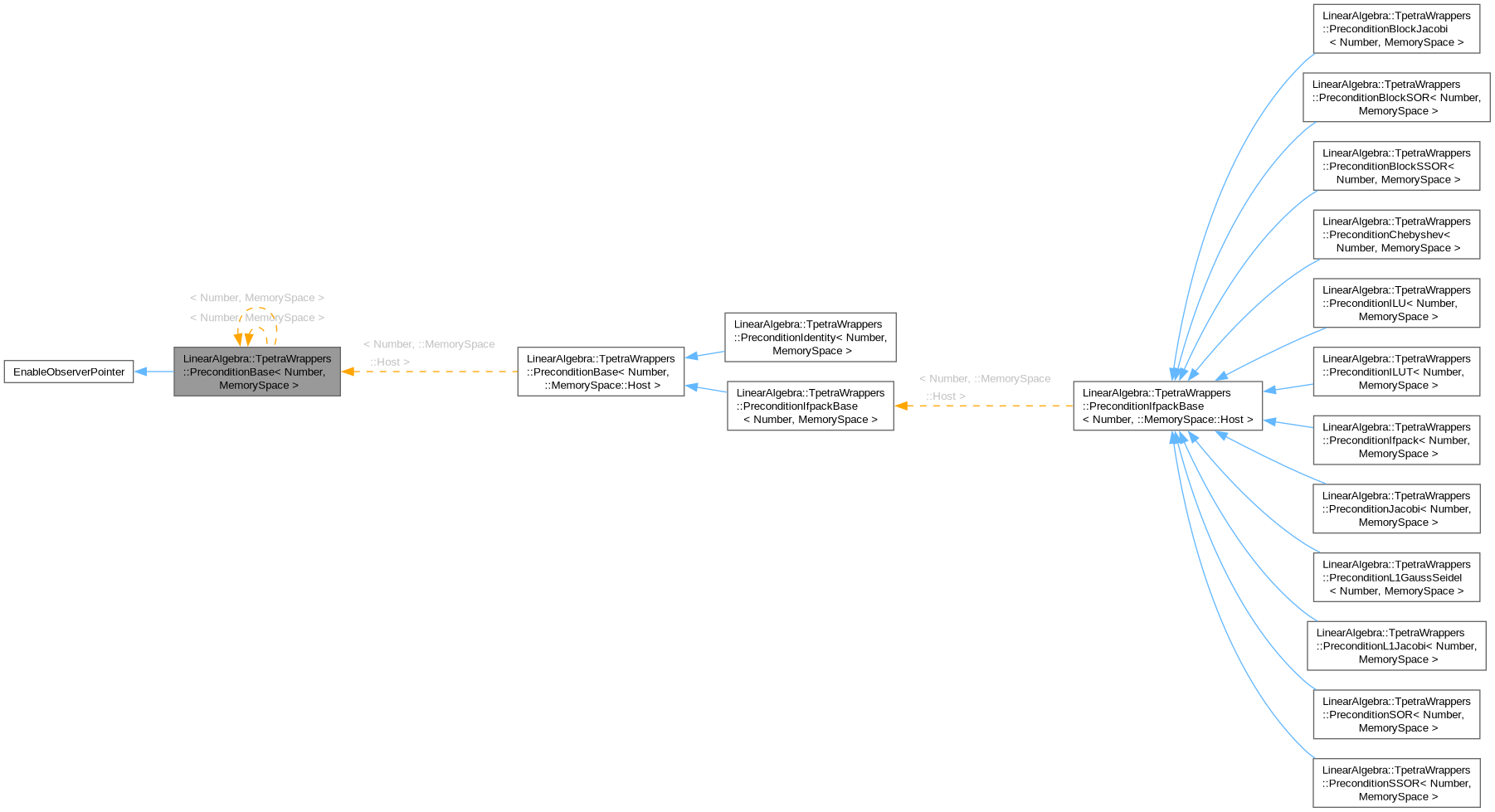

Inheritance diagram for LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >:

Classes

struct  AdditionalData
 Standardized data struct to pipe additional flags to the preconditioner. More...


Public Member Functions

 PreconditionBase ()=default
 Constructor. Does not do anything. The initialize function of the derived classes will have to create the preconditioner from a given sparse matrix.

void clear ()
 Desctructor. Destroys the preconditioner, leaving an object like just after having called the constructor.

virtual void vmult (Vector< Number, MemorySpace > &dst, const Vector< Number, MemorySpace > &src) const
 Apply the preconditioner.

virtual void Tvmult (Vector< Number, MemorySpace > &dst, const Vector< Number, MemorySpace > &src) const
 Apply the transpose preconditioner.

virtual void vmult (::Vector< Number > &dst, ::Vector< Number > &src) const
 Apply the preconditioner.

virtual void Tvmult (::Vector< Number > &dst, ::Vector< Number > &src) const
 Apply the transpose preconditioner.

const TpetraTypes::LinearOperator< Number, MemorySpace > & trilinos_operator () const
 Access to underlying Trilinos data.

Teuchos::RCP< TpetraTypes::LinearOperator< Number, MemorySpace > > trilinos_rcp () const
 Access to underlying Trilinos data.

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

Partitioners
IndexSet locally_owned_domain_indices () const

IndexSet locally_owned_range_indices () const

Subscriptor functionality

Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const


Static Public Member Functions

static ::ExceptionBaseExcNonMatchingMaps (std::string arg1)

static ::ExceptionBaseExcTransposeNotSupported ()

static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)


Protected Attributes

Teuchos::RCP< TpetraTypes::LinearOperator< Number, MemorySpace > > preconditioner

Teuchos::ParameterList parameter_list
 The list of preconditioner parameters.


Private Types

using map_value_type = decltype(counter_map)::value_type

using map_iterator = decltype(counter_map)::iterator


Private Member Functions

void check_no_subscribers () const noexcept


Private Attributes

std::atomic< unsigned intcounter

std::map< std::string, unsigned intcounter_map

std::vector< std::atomic< bool > * > validity_pointers

const std::type_info * object_info


Static Private Attributes

static std::mutex mutex


Detailed Description

template<typename Number, typename MemorySpace = ::MemorySpace::Host>
class LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >

The base class for all preconditioners based on Tpetra sparse matrices.

Definition at line 56 of file trilinos_tpetra_precondition.h.

Member Typedef Documentation

◆ map_value_type

using Subscriptor::map_value_type = decltype(counter_map)::value_type
privateinherited

The data type used in counter_map.

Definition at line 229 of file subscriptor.h.

◆ map_iterator

using Subscriptor::map_iterator = decltype(counter_map)::iterator
privateinherited

The iterator type used in counter_map.

Definition at line 234 of file subscriptor.h.

Constructor & Destructor Documentation

◆ PreconditionBase()

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::PreconditionBase ( )
default

Constructor. Does not do anything. The initialize function of the derived classes will have to create the preconditioner from a given sparse matrix.

Member Function Documentation

◆ clear()

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
void LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::clear ( )

Desctructor. Destroys the preconditioner, leaving an object like just after having called the constructor.

◆ vmult() [1/2]

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
virtual void LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::vmult ( Vector< Number, MemorySpace > & dst,
const Vector< Number, MemorySpace > & src ) const
virtual

Apply the preconditioner.

Parameters
dstInput vector to apply the preconditioner to
srcResult vector

◆ Tvmult() [1/2]

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
virtual void LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::Tvmult ( Vector< Number, MemorySpace > & dst,
const Vector< Number, MemorySpace > & src ) const
virtual

Apply the transpose preconditioner.

Parameters
dstInput vector to apply the preconditioner to
srcResult vector

◆ vmult() [2/2]

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
virtual void LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::vmult ( ::Vector< Number > & dst,
::Vector< Number > & src ) const
virtual

Apply the preconditioner.

Parameters
dstInput vector to apply the preconditioner to
srcResult vector

◆ Tvmult() [2/2]

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
virtual void LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::Tvmult ( ::Vector< Number > & dst,
::Vector< Number > & src ) const
virtual

Apply the transpose preconditioner.

◆ trilinos_operator()

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
const TpetraTypes::LinearOperator< Number, MemorySpace > & LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::trilinos_operator ( ) const

Access to underlying Trilinos data.

Calling this function from an uninitialized object will cause an exception.

◆ trilinos_rcp()

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
Teuchos::RCP< TpetraTypes::LinearOperator< Number, MemorySpace > > LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::trilinos_rcp ( ) const

Access to underlying Trilinos data.

Calling this function from an uninitialized object will cause an exception.

◆ locally_owned_domain_indices()

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
IndexSet LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::locally_owned_domain_indices ( ) const

Return the partitioning of the domain space of this matrix, i.e., the partitioning of the vectors this matrix has to be multiplied with.

Returns
IndexSet of the domain of this preconditioner

◆ locally_owned_range_indices()

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
IndexSet LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::locally_owned_range_indices ( ) const

Return the partitioning of the range space of this matrix, i.e., the partitioning of the vectors that are result from matrix-vector products.

Returns
IndexSet of the range of this preconditioner

◆ subscribe()

void Subscriptor::subscribe ( std::atomic< bool > *const validity,
const std::string & identifier = "" ) const
inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 135 of file subscriptor.cc.

◆ unsubscribe()

void Subscriptor::unsubscribe ( std::atomic< bool > *const validity,
const std::string & identifier = "" ) const
inherited

Unsubscribes a user from the object.

Note
The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 155 of file subscriptor.cc.

◆ n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const
inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 300 of file subscriptor.h.

◆ list_subscribers() [1/2]

template<typename StreamType >
void Subscriptor::list_subscribers ( StreamType & stream) const
inlineinherited

List the subscribers to the input stream.

Definition at line 317 of file subscriptor.h.

◆ list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const
inherited

List the subscribers to deallog.

Definition at line 203 of file subscriptor.cc.

◆ serialize()

template<class Archive >
void Subscriptor::serialize ( Archive & ar,
const unsigned int version )
inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 309 of file subscriptor.h.

◆ check_no_subscribers()

void Subscriptor::check_no_subscribers ( ) const
privatenoexceptinherited

Check that there are no objects subscribing to this object. If this check passes then it is safe to destroy the current object. It this check fails then this function will either abort or print an error message to deallog (by using the AssertNothrow mechanism), but will not throw an exception.

Note
Since this function is just a consistency check it does nothing in release mode.
If this function is called when there is an uncaught exception then, rather than aborting, this function prints an error message to the standard error stream and returns.

Definition at line 52 of file subscriptor.cc.

Member Data Documentation

◆ preconditioner

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
Teuchos::RCP<TpetraTypes::LinearOperator<Number, MemorySpace> > LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::preconditioner
protected

This is a pointer to the preconditioner object that is used when applying the preconditioner.

Definition at line 191 of file trilinos_tpetra_precondition.h.

◆ parameter_list

template<typename Number , typename MemorySpace = ::MemorySpace::Host>
Teuchos::ParameterList LinearAlgebra::TpetraWrappers::PreconditionBase< Number, MemorySpace >::parameter_list
protected

The list of preconditioner parameters.

This structure is Trilinos counterpart to the AdditionalData structures in deal.II. Therefore any initialize will at some point pass this to the preconditioner. Most derived classes will handle building this list based on an AdditionalData object that exposes and defaults the most sensible parameters. But some classes will also offer full customization for experienced Trilinos users.

Definition at line 204 of file trilinos_tpetra_precondition.h.

◆ counter

std::atomic<unsigned int> Subscriptor::counter
mutableprivateinherited

Store the number of objects which subscribed to this object. Initially, this number is zero, and upon destruction it shall be zero again (i.e. all objects which subscribed should have unsubscribed again).

The creator (and owner) of an object is counted in the map below if HE manages to supply identification.

We use the mutable keyword in order to allow subscription to constant objects also.

This counter may be read from and written to concurrently in multithreaded code: hence we use the std::atomic class template.

Definition at line 218 of file subscriptor.h.

◆ counter_map

std::map<std::string, unsigned int> Subscriptor::counter_map
mutableprivateinherited

In this map, we count subscriptions for each different identification string supplied to subscribe().

Definition at line 224 of file subscriptor.h.

◆ validity_pointers

std::vector<std::atomic<bool> *> Subscriptor::validity_pointers
mutableprivateinherited

In this vector, we store pointers to the validity bool in the SmartPointer objects that subscribe to this class.

Definition at line 240 of file subscriptor.h.

◆ object_info

const std::type_info* Subscriptor::object_info
mutableprivateinherited

Pointer to the typeinfo object of this object, from which we can later deduce the class name. Since this information on the derived class is neither available in the destructor, nor in the constructor, we obtain it in between and store it here.

Definition at line 248 of file subscriptor.h.

◆ mutex

std::mutex Subscriptor::mutex
staticprivateinherited

A mutex used to ensure data consistency when accessing the mutable members of this class. This lock is used in the subscribe() and unsubscribe() functions, as well as in list_subscribers().

Definition at line 271 of file subscriptor.h.


The documentation for this class was generated from the following file:
