LinearAlgebra::EpetraWrappers::Vector Class Reference

#include <deal.II/lac/trilinos_epetra_vector.h>

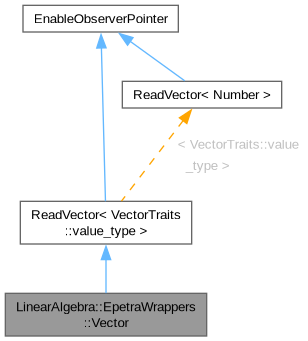

Inheritance diagram for LinearAlgebra::EpetraWrappers::Vector:

Public Types
using	value_type = VectorTraits::value_type
using	size_type = VectorTraits::size_type
using	real_type = value_type
using	reference = internal::VectorReference
using	const_reference = const internal::VectorReference

Public Member Functions
virtual void	extract_subvector_to (const ArrayView< const types::global_dof_index > &indices, ArrayView< VectorTraits::value_type > &elements) const=0
template<class Archive >
void	serialize (Archive &ar, const unsigned int version)
1: Basic Object-handling
	Vector ()
	Vector (const Vector &V)
	Vector (const IndexSet &parallel_partitioner, const MPI_Comm communicator)
void	reinit (const IndexSet &parallel_partitioner, const MPI_Comm communicator, const bool omit_zeroing_entries=false)
void	reinit (const Vector &V, const bool omit_zeroing_entries=false)
virtual void	extract_subvector_to (const ArrayView< const types::global_dof_index > &indices, ArrayView< double > &elements) const override
Vector &	operator= (const Vector &V)
Vector &	operator= (const double s)
void	import_elements (const ReadWriteVector< double > &V, VectorOperation::values operation, const std::shared_ptr< const Utilities::MPI::CommunicationPatternBase > &communication_pattern={})
void	import (const ReadWriteVector< double > &V, const VectorOperation::values operation, const std::shared_ptr< const Utilities::MPI::CommunicationPatternBase > &communication_pattern={})
2: Data-Access
reference	operator() (const size_type index)
value_type	operator() (const size_type index) const
reference	operator[] (const size_type index)
value_type	operator[] (const size_type index) const
3: Modification of vectors
Vector &	operator*= (const double factor)
Vector &	operator/= (const double factor)
Vector &	operator+= (const Vector &V)
Vector &	operator-= (const Vector &V)
double	operator* (const Vector &V) const
void	add (const double a)
void	add (const double a, const Vector &V)
void	add (const double a, const Vector &V, const double b, const Vector &W)
void	sadd (const double s, const double a, const Vector &V)
void	scale (const Vector &scaling_factors)
void	equ (const double a, const Vector &V)
bool	all_zero () const
4: Scalar products, norms and related operations
double	mean_value () const
double	l1_norm () const
double	l2_norm () const
double	linfty_norm () const
double	add_and_dot (const double a, const Vector &V, const Vector &W)
5: Scalar products, norms and related operations
bool	has_ghost_elements () const
virtual size_type	size () const override
size_type	locally_owned_size () const
MPI_Comm	get_mpi_communicator () const
::IndexSet	locally_owned_elements () const
6: Mixed stuff
void	compress (const VectorOperation::values operation)
const Epetra_FEVector &	trilinos_vector () const
Epetra_FEVector &	trilinos_vector ()
void	print (std::ostream &out, const unsigned int precision=3, const bool scientific=true, const bool across=true) const
std::size_t	memory_consumption () const
Subscriptor functionality
Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.
void	subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const
void	unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const
unsigned int	n_subscriptions () const
template<typename StreamType >
void	list_subscribers (StreamType &stream) const
void	list_subscribers () const

Static Public Member Functions
static ::ExceptionBase &	ExcDifferentParallelPartitioning ()
static ::ExceptionBase &	ExcVectorTypeNotCompatible ()
static ::ExceptionBase &	ExcTrilinosError (int arg1)
static ::ExceptionBase &	ExcInUse (int arg1, std::string arg2, std::string arg3)
static ::ExceptionBase &	ExcNoSubscriber (std::string arg1, std::string arg2)

Private Types
using	map_value_type = decltype(counter_map)::value_type
using	map_iterator = decltype(counter_map)::iterator

Private Member Functions
void	create_epetra_comm_pattern (const IndexSet &source_index_set, const MPI_Comm mpi_comm)
void	check_no_subscribers () const noexcept

Private Attributes
std::unique_ptr< Epetra_FEVector >	vector
::IndexSet	source_stored_elements
std::shared_ptr< const CommunicationPattern >	epetra_comm_pattern
std::atomic< unsigned int >	counter
std::map< std::string, unsigned int >	counter_map
std::vector< std::atomic< bool > * >	validity_pointers
const std::type_info *	object_info

Static Private Attributes
static std::mutex	mutex

Friends
class	internal::VectorReference

Detailed Description

This class implements a wrapper to the Trilinos distributed vector class Epetra_FEVector. This class requires Trilinos to be compiled with MPI support.

Definition at line 225 of file trilinos_epetra_vector.h.

Member Typedef Documentation

value_type

using LinearAlgebra::EpetraWrappers::Vector::value_type = VectorTraits::value_type

Definition at line 229 of file trilinos_epetra_vector.h.

size_type

using LinearAlgebra::EpetraWrappers::Vector::size_type = VectorTraits::size_type

Definition at line 230 of file trilinos_epetra_vector.h.

real_type

using LinearAlgebra::EpetraWrappers::Vector::real_type = value_type

Definition at line 231 of file trilinos_epetra_vector.h.

reference

using LinearAlgebra::EpetraWrappers::Vector::reference = internal::VectorReference

Definition at line 232 of file trilinos_epetra_vector.h.

const_reference

using LinearAlgebra::EpetraWrappers::Vector::const_reference = const internal::VectorReference

Definition at line 233 of file trilinos_epetra_vector.h.

map_value_type

using Subscriptor::map_value_type = decltype(counter_map)::value_type

privateinherited

The data type used in counter_map.

Definition at line 229 of file subscriptor.h.

map_iterator

using Subscriptor::map_iterator = decltype(counter_map)::iterator

privateinherited

The iterator type used in counter_map.

Definition at line 234 of file subscriptor.h.

Constructor & Destructor Documentation

Vector() [1/3]

Vector< Number >::Vector

(

)

Constructor. Create a vector of dimension zero.

Definition at line 83 of file trilinos_epetra_vector.cc.

Vector() [2/3]

Vector< Number >::Vector

(

const Vector &

V

)

Copy constructor. Sets the dimension and the partitioning to that of the given vector and copies all elements.

Definition at line 91 of file trilinos_epetra_vector.cc.

Vector() [3/3]

Vector< Number >::Vector ( const IndexSet & parallel_partitioner, const MPI_Comm communicator )

explicit

This constructor takes an IndexSet that defines how to distribute the individual components among the MPI processors. Since it also includes information about the size of the vector, this is all we need to generate a parallel vector.

Definition at line 98 of file trilinos_epetra_vector.cc.

Member Function Documentation

reinit() [1/2]

void Vector< Number >::reinit	(	const IndexSet &	parallel_partitioner,
		const MPI_Comm	communicator,
		const bool	omit_zeroing_entries = false )

Reinit functionality. This function destroys the old vector content and generates a new one based on the input partitioning. The flag omit_zeroing_entries determines whether the vector should be filled with zeros (false) or left in an undetermined state (true).

Definition at line 108 of file trilinos_epetra_vector.cc.

reinit() [2/2]

void Vector< Number >::reinit	(	const Vector &	V,
		const bool	omit_zeroing_entries = false )

Change the dimension to that of the vector V. The elements of V are not copied.

Definition at line 127 of file trilinos_epetra_vector.cc.

extract_subvector_to() [1/2]

void Vector< Number >::extract_subvector_to ( const ArrayView< const types::global_dof_index > & indices, ArrayView< double > & elements ) const

overridevirtual

Extract a range of elements all at once.

Definition at line 137 of file trilinos_epetra_vector.cc.

operator=() [1/2]

Vector & Vector< Number >::operator=

(

const Vector &

V

)

Copy function. This function takes a Vector and copies all the elements. The Vector will have the same parallel distribution as V.

The semantics of this operator are complex. If the two vectors have the same size, and if either the left or right hand side vector of the assignment (i.e., either the input vector on the right hand side, or the calling vector to the left of the assignment operator) currently has ghost elements, then the left hand side vector will also have ghost values and will consequently be a read-only vector (see also the glossary entry on the issue). Otherwise, the left hand vector will be a writable vector after this operation. These semantics facilitate having a vector with ghost elements on the left hand side of the assignment, and a vector without ghost elements on the right hand side, with the resulting left hand side vector having the correct values in both its locally owned and its ghost elements.

On the other hand, if the left hand side vector does not have the correct size yet, or is perhaps an entirely uninitialized vector, then the assignment is simply a copy operation in the usual sense: In that case, if the right hand side has no ghost elements (i.e., is a completely distributed vector), then the left hand side will have no ghost elements either. And if the right hand side has ghost elements (and is consequently read-only), then the left hand side will have these same properties after the operation.

Definition at line 157 of file trilinos_epetra_vector.cc.

operator=() [2/2]

Vector & Vector< Number >::operator=

(

const double

s

)

Sets all elements of the vector to the scalar s. This operation is only allowed if s is equal to zero.

Definition at line 187 of file trilinos_epetra_vector.cc.

import_elements()

void Vector< Number >::import_elements	(	const ReadWriteVector< double > &	V,
		VectorOperation::values	operation,
		const std::shared_ptr< const Utilities::MPI::CommunicationPatternBase > &	communication_pattern = {} )

Imports all the elements present in the vector's IndexSet from the input vector V. VectorOperation::values operation is used to decide if the elements in V should be added to the current vector or replace the current elements. The last parameter can be used if the same communication pattern is used multiple times. This can be used to improve performance.

Definition at line 201 of file trilinos_epetra_vector.cc.

import()

void LinearAlgebra::EpetraWrappers::Vector::import ( const ReadWriteVector< double > & V, const VectorOperation::values operation, const std::shared_ptr< const Utilities::MPI::CommunicationPatternBase > & communication_pattern = {} )

inline

Deprecated

Use import_elements() instead.

Definition at line 345 of file trilinos_epetra_vector.h.

operator()() [1/2]

internal::VectorReference Vector< Number >::operator() ( const size_type index )

inline

Provide access to a given element, both read and write.

When using a vector distributed with MPI, this operation only makes sense for elements that are actually present on the calling processor. Otherwise, an exception is thrown.

Definition at line 792 of file trilinos_epetra_vector.h.

operator()() [2/2]

value_type LinearAlgebra::EpetraWrappers::Vector::operator()

(

const size_type

index

)

const

Provide read-only access to an element.

When using a vector distributed with MPI, this operation only makes sense for elements that are actually present on the calling processor. Otherwise, an exception is thrown.

operator[]() [1/2]

internal::VectorReference Vector< Number >::operator[] ( const size_type index )

inline

Provide access to a given element, both read and write.

Exactly the same as operator().

Definition at line 798 of file trilinos_epetra_vector.h.

operator[]() [2/2]

Vector::value_type Vector< Number >::operator[] ( const size_type index ) const

inline

Provide read-only access to an element.

Exactly the same as operator().

Definition at line 804 of file trilinos_epetra_vector.h.

operator*=()

Vector & Vector< Number >::operator*=

(

const double

factor

)

Multiply the entire vector by a fixed factor.

Definition at line 257 of file trilinos_epetra_vector.cc.

operator/=()

Vector & Vector< Number >::operator/=

(

const double

factor

)

Divide the entire vector by a fixed factor.

Definition at line 268 of file trilinos_epetra_vector.cc.

operator+=()

Vector & Vector< Number >::operator+=

(

const Vector &

V

)

Add the vector V to the present one.

Definition at line 280 of file trilinos_epetra_vector.cc.

operator-=()

Vector & Vector< Number >::operator-=

(

const Vector &

V

)

Subtract the vector V from the present one.

Definition at line 323 of file trilinos_epetra_vector.cc.

operator*()

double Vector< Number >::operator*

(

const Vector &

V

)

const

Return the scalar product of two vectors. The vectors need to have the same layout.

Definition at line 333 of file trilinos_epetra_vector.cc.

add() [1/3]

void Vector< Number >::add

(

const double

a

)

Add a to all components. Note that is a scalar not a vector.

Definition at line 351 of file trilinos_epetra_vector.cc.

add() [2/3]

void Vector< Number >::add	(	const double	a,
		const Vector &	V )

Simple addition of a multiple of a vector, i.e. *this += a*V. The vectors need to have the same layout.

Definition at line 362 of file trilinos_epetra_vector.cc.

add() [3/3]

void Vector< Number >::add	(	const double	a,
		const Vector &	V,
		const double	b,
		const Vector &	W )

Multiple addition of multiple of a vector, i.e. *this> += a*V+b*W. The vectors need to have the same layout.

Definition at line 376 of file trilinos_epetra_vector.cc.

sadd()

void Vector< Number >::sadd	(	const double	s,
		const double	a,
		const Vector &	V )

Scaling and simple addition of a multiple of a vector, i.e. this = s(*this)+a*V.

Definition at line 397 of file trilinos_epetra_vector.cc.

scale()

void Vector< Number >::scale

(

const Vector &

scaling_factors

)

Scale each element of this vector by the corresponding element in the argument. This function is mostly meant to simulate multiplication (and immediate re-assignment) by a diagonal scaling matrix. The vectors need to have the same layout.

Definition at line 408 of file trilinos_epetra_vector.cc.

equ()

void Vector< Number >::equ	(	const double	a,
		const Vector &	V )

Assignment *this = a*V.

Definition at line 422 of file trilinos_epetra_vector.cc.

all_zero()

bool Vector< Number >::all_zero

(

)

const

Return whether the vector contains only elements with value zero.

Definition at line 439 of file trilinos_epetra_vector.cc.

mean_value()

double Vector< Number >::mean_value

(

)

const

Return the mean value of the element of this vector.

Definition at line 468 of file trilinos_epetra_vector.cc.

l1_norm()

double Vector< Number >::l1_norm

(

)

const

Return the l₁ norm of the vector (i.e., the sum of the absolute values of all entries among all processors).

Definition at line 482 of file trilinos_epetra_vector.cc.

l2_norm()

double Vector< Number >::l2_norm

(

)

const

Return the l₂ norm of the vector (i.e., the square root of the sum of the square of all entries among all processors).

Definition at line 495 of file trilinos_epetra_vector.cc.

linfty_norm()

double Vector< Number >::linfty_norm

(

)

const

Return the maximum norm of the vector (i.e., the maximum absolute value among all entries and among all processors).

Definition at line 508 of file trilinos_epetra_vector.cc.

add_and_dot()

double Vector< Number >::add_and_dot	(	const double	a,
		const Vector &	V,
		const Vector &	W )

Performs a combined operation of a vector addition and a subsequent inner product, returning the value of the inner product. In other words, the result of this function is the same as if the user called

this->add(a, V);
return_value = *this * W;

The reason this function exists is that this operation involves less memory transfer than calling the two functions separately. This method only needs to load three vectors, this, V, W, whereas calling separate methods means to load the calling vector this twice. Since most vector operations are memory transfer limited, this reduces the time by 25% (or 50% if W equals this).

The vectors need to have the same layout.

For complex-valued vectors, the scalar product in the second step is implemented as \(\left<v,w\right>=\sum_i v_i \bar{w_i}\).

Definition at line 521 of file trilinos_epetra_vector.cc.

has_ghost_elements()

bool Vector< Number >::has_ghost_elements ( ) const

inline

This function always returns false and is present only for backward compatibility.

Definition at line 811 of file trilinos_epetra_vector.h.

size()

Vector::size_type Vector< Number >::size ( ) const

overridevirtual

Return the global size of the vector, equal to the sum of the number of locally owned indices among all processors.

Implements ReadVector< VectorTraits::value_type >.

Definition at line 531 of file trilinos_epetra_vector.cc.

locally_owned_size()

Vector::size_type Vector< Number >::locally_owned_size

(

)

const

Return the local size of the vector, i.e., the number of indices owned locally.

Definition at line 543 of file trilinos_epetra_vector.cc.

get_mpi_communicator()

MPI_Comm Vector< Number >::get_mpi_communicator

(

)

const

Return the underlying MPI communicator.

Definition at line 551 of file trilinos_epetra_vector.cc.

locally_owned_elements()

IndexSet Vector< Number >::locally_owned_elements

(

)

const

Return an index set that describes which elements of this vector are owned by the current processor. As a consequence, the index sets returned on different processors if this is a distributed vector will form disjoint sets that add up to the complete index set. Obviously, if a vector is created on only one processor, then the result would satisfy

vec.locally_owned_elements() == complete_index_set(vec.size())

Definition at line 562 of file trilinos_epetra_vector.cc.

compress()

void Vector< Number >::compress

(

const VectorOperation::values

operation

)

Compress the underlying representation of the Trilinos object, i.e. flush the buffers of the vector object if it has any. This function is necessary after writing into a vector element-by-element and before anything else can be done on it.

See Compressing distributed objects for more information.

Definition at line 595 of file trilinos_epetra_vector.cc.

trilinos_vector() [1/2]

const Epetra_FEVector & Vector< Number >::trilinos_vector

(

)

const

Return a const reference to the underlying Trilinos Epetra_FEVector class.

Definition at line 601 of file trilinos_epetra_vector.cc.

trilinos_vector() [2/2]

Epetra_FEVector & Vector< Number >::trilinos_vector

(

)

Return a (modifiable) reference to the underlying Trilinos Epetra_FEVector class.

Definition at line 609 of file trilinos_epetra_vector.cc.

print()

void Vector< Number >::print	(	std::ostream &	out,
		const unsigned int	precision = 3,
		const bool	scientific = true,
		const bool	across = true ) const

Prints the vector to the output stream out.

Definition at line 617 of file trilinos_epetra_vector.cc.

memory_consumption()

std::size_t Vector< Number >::memory_consumption

(

)

const

Return the memory consumption of this class in bytes.

Definition at line 655 of file trilinos_epetra_vector.cc.

create_epetra_comm_pattern()

void Vector< Number >::create_epetra_comm_pattern ( const IndexSet & source_index_set, const MPI_Comm mpi_comm )

private

Create the CommunicationPattern for the communication between the IndexSet source_index_set and the current vector based on the communicator mpi_comm.

Definition at line 665 of file trilinos_epetra_vector.cc.

extract_subvector_to() [2/2]

virtual void ReadVector< VectorTraits::value_type >::extract_subvector_to ( const ArrayView< const types::global_dof_index > & indices, ArrayView< VectorTraits::value_type > & elements ) const

pure virtualinherited

Extract a subset of the vector specified by indices into the output array elements.

subscribe()

void Subscriptor::subscribe ( std::atomic< bool > *const validity, const std::string & identifier = "" ) const

inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 135 of file subscriptor.cc.

unsubscribe()

void Subscriptor::unsubscribe ( std::atomic< bool > *const validity, const std::string & identifier = "" ) const

inherited

Unsubscribes a user from the object.

Note

The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 155 of file subscriptor.cc.

n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const

inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 300 of file subscriptor.h.

list_subscribers() [1/2]

template<typename StreamType >

void Subscriptor::list_subscribers ( StreamType & stream ) const

inlineinherited

List the subscribers to the input stream.

Definition at line 317 of file subscriptor.h.

list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const

inherited

List the subscribers to deallog.

Definition at line 203 of file subscriptor.cc.

serialize()

template<class Archive >

void Subscriptor::serialize ( Archive & ar, const unsigned int version )

inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 309 of file subscriptor.h.

check_no_subscribers()

void Subscriptor::check_no_subscribers ( ) const

privatenoexceptinherited

Check that there are no objects subscribing to this object. If this check passes then it is safe to destroy the current object. It this check fails then this function will either abort or print an error message to deallog (by using the AssertNothrow mechanism), but will not throw an exception.

Note

Since this function is just a consistency check it does nothing in release mode.

If this function is called when there is an uncaught exception then, rather than aborting, this function prints an error message to the standard error stream and returns.

Definition at line 52 of file subscriptor.cc.

Friends And Related Symbol Documentation

internal::VectorReference

friend class internal::VectorReference

friend

Definition at line 694 of file trilinos_epetra_vector.h.

Member Data Documentation

vector

std::unique_ptr<Epetra_FEVector> LinearAlgebra::EpetraWrappers::Vector::vector

private

Pointer to the actual Epetra vector object.

Definition at line 680 of file trilinos_epetra_vector.h.

source_stored_elements

::IndexSet LinearAlgebra::EpetraWrappers::Vector::source_stored_elements

private

IndexSet of the elements of the last imported vector.

Definition at line 685 of file trilinos_epetra_vector.h.

epetra_comm_pattern

std::shared_ptr<const CommunicationPattern> LinearAlgebra::EpetraWrappers::Vector::epetra_comm_pattern

private

CommunicationPattern for the communication between the source_stored_elements IndexSet and the current vector.

Definition at line 691 of file trilinos_epetra_vector.h.

counter

std::atomic<unsigned int> Subscriptor::counter

mutableprivateinherited

Store the number of objects which subscribed to this object. Initially, this number is zero, and upon destruction it shall be zero again (i.e. all objects which subscribed should have unsubscribed again).

The creator (and owner) of an object is counted in the map below if HE manages to supply identification.

We use the mutable keyword in order to allow subscription to constant objects also.

This counter may be read from and written to concurrently in multithreaded code: hence we use the std::atomic class template.

Definition at line 218 of file subscriptor.h.

counter_map

std::map<std::string, unsigned int> Subscriptor::counter_map

mutableprivateinherited

In this map, we count subscriptions for each different identification string supplied to subscribe().

Definition at line 224 of file subscriptor.h.

validity_pointers

std::vector<std::atomic<bool> *> Subscriptor::validity_pointers

mutableprivateinherited

In this vector, we store pointers to the validity bool in the SmartPointer objects that subscribe to this class.

Definition at line 240 of file subscriptor.h.

object_info

const std::type_info* Subscriptor::object_info

mutableprivateinherited

Pointer to the typeinfo object of this object, from which we can later deduce the class name. Since this information on the derived class is neither available in the destructor, nor in the constructor, we obtain it in between and store it here.

Definition at line 248 of file subscriptor.h.

mutex

std::mutex Subscriptor::mutex

staticprivateinherited

A mutex used to ensure data consistency when accessing the mutable members of this class. This lock is used in the subscribe() and unsubscribe() functions, as well as in list_subscribers().

Definition at line 271 of file subscriptor.h.

---

The documentation for this class was generated from the following files:

• include/deal.II/lac/trilinos_epetra_vector.h
• source/lac/trilinos_epetra_vector.cc
