Reference documentation for deal.II version 9.3.0
\(\newcommand{\dealvcentcolon}{\mathrel{\mathop{:}}}\) \(\newcommand{\dealcoloneq}{\dealvcentcolon\mathrel{\mkern-1.2mu}=}\) \(\newcommand{\jump}[1]{\left[\!\left[ #1 \right]\!\right]}\) \(\newcommand{\average}[1]{\left\{\!\left\{ #1 \right\}\!\right\}}\)
Public Types | Public Member Functions | Static Public Member Functions | Public Attributes | Static Public Attributes | Protected Attributes | Private Attributes | List of all members
Functions::StokesCosine< dim > Class Template Reference

#include <deal.II/base/flow_function.h>

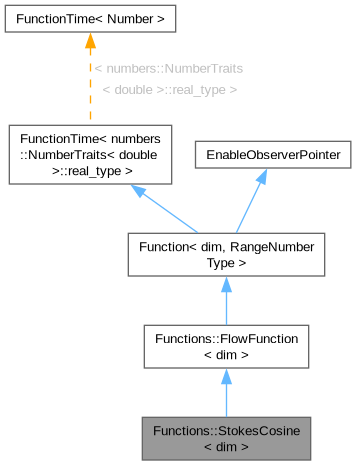

Inheritance diagram for Functions::StokesCosine< dim >:
[legend]

Public Types

using time_type = typename FunctionTime< typename numbers::NumberTraits< double >::real_type >::time_type


Public Member Functions

 StokesCosine (const double viscosity=1., const double reaction=0.)

void set_parameters (const double viscosity, const double reaction)

virtual ~StokesCosine () override=default

virtual void vector_values (const std::vector< Point< dim >> &points, std::vector< std::vector< double >> &values) const override

virtual void vector_gradients (const std::vector< Point< dim >> &points, std::vector< std::vector< Tensor< 1, dim >>> &gradients) const override

virtual void vector_laplacians (const std::vector< Point< dim >> &points, std::vector< std::vector< double >> &values) const override

void pressure_adjustment (double p)

virtual void vector_gradients (const std::vector< Point< dim >> &points, std::vector< std::vector< Tensor< 1, dim, double >>> &gradients) const

virtual void vector_value (const Point< dim > &points, Vector< double > &value) const override

virtual double value (const Point< dim > &points, const unsigned int component) const override

virtual void vector_value_list (const std::vector< Point< dim >> &points, std::vector< Vector< double >> &values) const override

virtual void vector_gradient_list (const std::vector< Point< dim >> &points, std::vector< std::vector< Tensor< 1, dim >>> &gradients) const override

virtual void vector_gradient_list (const std::vector< Point< dim >> &points, std::vector< std::vector< Tensor< 1, dim, double >>> &gradients) const

virtual void vector_laplacian_list (const std::vector< Point< dim >> &points, std::vector< Vector< double >> &values) const override

virtual std::size_t memory_consumption () const override

virtual void value_list (const std::vector< Point< dim >> &points, std::vector< double > &values, const unsigned int component=0) const

virtual Tensor< 1, dim, doublegradient (const Point< dim > &p, const unsigned int component=0) const

virtual void vector_gradient (const Point< dim > &p, std::vector< Tensor< 1, dim, double >> &gradients) const

virtual void gradient_list (const std::vector< Point< dim >> &points, std::vector< Tensor< 1, dim, double >> &gradients, const unsigned int component=0) const

virtual double laplacian (const Point< dim > &p, const unsigned int component=0) const

virtual void vector_laplacian (const Point< dim > &p, Vector< double > &values) const

virtual void laplacian_list (const std::vector< Point< dim >> &points, std::vector< double > &values, const unsigned int component=0) const

virtual SymmetricTensor< 2, dim, doublehessian (const Point< dim > &p, const unsigned int component=0) const

virtual void vector_hessian (const Point< dim > &p, std::vector< SymmetricTensor< 2, dim, double >> &values) const

virtual void hessian_list (const std::vector< Point< dim >> &points, std::vector< SymmetricTensor< 2, dim, double >> &values, const unsigned int component=0) const

virtual void vector_hessian_list (const std::vector< Point< dim >> &points, std::vector< std::vector< SymmetricTensor< 2, dim, double >>> &values) const

Number get_time () const

virtual void set_time (const Number new_time)

virtual void advance_time (const Number delta_t)

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

Subscriptor functionality

Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const


Static Public Member Functions

static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)


Public Attributes

const unsigned int n_components


Static Public Attributes

static const unsigned int dimension


Protected Attributes

double mean_pressure


Private Attributes

double viscosity
 The viscosity. More...

double reaction
 The reaction parameter. More...


Detailed Description

template<int dim>
class Functions::StokesCosine< dim >

Artificial divergence free function with homogeneous boundary conditions on the cube [-1,1]dim.

The function in 2D is

\[ \left(\begin{array}{c}u\\v\\p\end{array}\right) \left(\begin{array}{c}\cos^2x \sin y\cos y\\-\sin x\cos x\cos^2y\\ \sin x\cos x\sin y\cos y\end{array}\right) \]

Definition at line 195 of file flow_function.h.

Member Typedef Documentation

◆ time_type

using Function< dim, double >::time_type = typename FunctionTime< typename numbers::NumberTraits<double >::real_type>::time_type
inherited

The scalar-valued real type used for representing time.

Definition at line 170 of file function.h.

Constructor & Destructor Documentation

◆ StokesCosine()

template<int dim>
Functions::StokesCosine< dim >::StokesCosine ( const double  viscosity = 1.,
const double  reaction = 0.
)

Constructor setting the Reynolds number required for pressure computation and scaling of the right hand side.

Definition at line 291 of file flow_function.cc.

◆ ~StokesCosine()

template<int dim>
virtual Functions::StokesCosine< dim >::~StokesCosine ( )
overridevirtualdefault

Member Function Documentation

◆ set_parameters()

template<int dim>
void Functions::StokesCosine< dim >::set_parameters ( const double  viscosity,
const double  reaction
)

Change the viscosity and the reaction parameter.

Definition at line 300 of file flow_function.cc.

◆ vector_values()

template<int dim>
void Functions::StokesCosine< dim >::vector_values ( const std::vector< Point< dim >> &  points,
std::vector< std::vector< double >> &  values
) const
overridevirtual

Values in a structure more suitable for vector valued functions. The outer vector is indexed by solution component, the inner by quadrature point.

Implements Functions::FlowFunction< dim >.

Definition at line 309 of file flow_function.cc.

◆ vector_gradients() [1/2]

template<int dim>
void Functions::StokesCosine< dim >::vector_gradients ( const std::vector< Point< dim >> &  points,
std::vector< std::vector< Tensor< 1, dim >>> &  gradients
) const
overridevirtual

Gradients in a structure more suitable for vector valued functions. The outer vector is indexed by solution component, the inner by quadrature point.

Implements Functions::FlowFunction< dim >.

Definition at line 358 of file flow_function.cc.

◆ vector_laplacians()

template<int dim>
void Functions::StokesCosine< dim >::vector_laplacians ( const std::vector< Point< dim >> &  points,
std::vector< std::vector< double >> &  values
) const
overridevirtual

Force terms in a structure more suitable for vector valued functions. The outer vector is indexed by solution component, the inner by quadrature point.

Warning
This is not the true Laplacian, but the force term to be used as right hand side in Stokes' equations

Implements Functions::FlowFunction< dim >.

Definition at line 424 of file flow_function.cc.

◆ pressure_adjustment()

template<int dim>
void Functions::FlowFunction< dim >::pressure_adjustment ( double  p)
inherited

Store an adjustment for the pressure function, such that its mean value is p.

Definition at line 42 of file flow_function.cc.

◆ vector_gradients() [2/2]

virtual void Function< dim, double >::vector_gradients ( const std::vector< Point< dim >> &  points,
std::vector< std::vector< Tensor< 1, dim, double >>> &  gradients
) const
virtualinherited

For each component of the function, fill a vector of gradient values, one for each point.

The default implementation of this function in Function calls value_list() for each component. In order to improve performance, this can be reimplemented in derived classes to speed up performance.

◆ vector_value()

template<int dim>
void Functions::FlowFunction< dim >::vector_value ( const Point< dim > &  p,
Vector< double > &  values
) const
overridevirtualinherited

Return all components of a vector-valued function at a given point.

values shall have the right size beforehand, i.e. n_components.

The default implementation will call value() for each component.

Reimplemented from Function< dim >.

Definition at line 78 of file flow_function.cc.

◆ value()

template<int dim>
double Functions::FlowFunction< dim >::value ( const Point< dim > &  p,
const unsigned int  component
) const
overridevirtualinherited

Return the value of the function at the given point. Unless there is only one component (i.e. the function is scalar), you should state the component you want to have evaluated; it defaults to zero, i.e. the first component.

Reimplemented from Function< dim >.

Definition at line 103 of file flow_function.cc.

◆ vector_value_list()

template<int dim>
void Functions::FlowFunction< dim >::vector_value_list ( const std::vector< Point< dim >> &  points,
std::vector< Vector< double >> &  values
) const
overridevirtualinherited

Set values to the point values of the function at the points. It is assumed that values already has the right size, i.e. the same size as the points array, and that all elements be vectors with the same number of components as this function has.

By default, this function repeatedly calls vector_value() for each point separately, to fill the output array.

Reimplemented from Function< dim >.

Definition at line 50 of file flow_function.cc.

◆ vector_gradient_list() [1/2]

template<int dim>
void Functions::FlowFunction< dim >::vector_gradient_list ( const std::vector< Point< dim >> &  points,
std::vector< std::vector< Tensor< 1, dim >>> &  gradients
) const
overridevirtualinherited

Definition at line 125 of file flow_function.cc.

◆ vector_gradient_list() [2/2]

virtual void Function< dim, double >::vector_gradient_list ( const std::vector< Point< dim >> &  points,
std::vector< std::vector< Tensor< 1, dim, double >>> &  gradients
) const
virtualinherited

Set gradients to the gradients of the function at the points, for all components. It is assumed that gradients already has the right size, i.e. the same size as the points array.

The outer loop over gradients is over the points in the list, the inner loop over the different components of the function.

◆ vector_laplacian_list()

template<int dim>
void Functions::FlowFunction< dim >::vector_laplacian_list ( const std::vector< Point< dim >> &  points,
std::vector< Vector< double >> &  values
) const
overridevirtualinherited

The force term in the momentum equation.

Reimplemented from Function< dim >.

Definition at line 153 of file flow_function.cc.

◆ memory_consumption()

template<int dim>
std::size_t Functions::FlowFunction< dim >::memory_consumption ( ) const
overridevirtualinherited

Return an estimate for the memory consumption, in bytes, of this object.

Reimplemented from Function< dim >.

Definition at line 181 of file flow_function.cc.

◆ value_list()

virtual void Function< dim, double >::value_list ( const std::vector< Point< dim >> &  points,
std::vector< double > &  values,
const unsigned int  component = 0
) const
virtualinherited

Set values to the point values of the specified component of the function at the points. It is assumed that values already has the right size, i.e. the same size as the points array.

By default, this function repeatedly calls value() for each point separately, to fill the output array.

Reimplemented in Functions::Polynomial< dim >, Functions::CutOffFunctionCinfty< dim >, Functions::CutOffFunctionC1< dim >, Functions::CutOffFunctionW1< dim >, Functions::CutOffFunctionLinfty< dim >, Functions::JumpFunction< dim >, Functions::SlitSingularityFunction< dim >, Functions::ExpFunction< dim >, Functions::CosineGradFunction< dim >, Functions::CosineFunction< dim >, Functions::PillowFunction< dim >, Functions::Q1WedgeFunction< dim >, FunctionDerivative< dim >, Functions::SquareFunction< dim >, and Functions::Bessel1< dim >.

◆ gradient()

virtual Tensor<1, dim, double > Function< dim, double >::gradient ( const Point< dim > &  p,
const unsigned int  component = 0
) const
virtualinherited

◆ vector_gradient()

virtual void Function< dim, double >::vector_gradient ( const Point< dim > &  p,
std::vector< Tensor< 1, dim, double >> &  gradients
) const
virtualinherited

Return the gradient of all components of the function at the given point.

◆ gradient_list()

virtual void Function< dim, double >::gradient_list ( const std::vector< Point< dim >> &  points,
std::vector< Tensor< 1, dim, double >> &  gradients,
const unsigned int  component = 0
) const
virtualinherited

Set gradients to the gradients of the specified component of the function at the points. It is assumed that gradients already has the right size, i.e. the same size as the points array.

◆ laplacian()

virtual double Function< dim, double >::laplacian ( const Point< dim > &  p,
const unsigned int  component = 0
) const
virtualinherited

◆ vector_laplacian()

virtual void Function< dim, double >::vector_laplacian ( const Point< dim > &  p,
Vector< double > &  values
) const
virtualinherited

Compute the Laplacian of all components at point p and store them in values.

◆ laplacian_list()

virtual void Function< dim, double >::laplacian_list ( const std::vector< Point< dim >> &  points,
std::vector< double > &  values,
const unsigned int  component = 0
) const
virtualinherited

◆ hessian()

virtual SymmetricTensor<2, dim, double > Function< dim, double >::hessian ( const Point< dim > &  p,
const unsigned int  component = 0
) const
virtualinherited

Compute the Hessian of a given component at point p, that is the gradient of the gradient of the function.

Reimplemented in Functions::CosineFunction< dim >, Functions::LevelSet::Plane< dim >, Functions::CSpline< dim >, Functions::Spherical< dim >, Functions::LevelSet::Sphere< dim >, and Functions::CoordinateRestriction< dim >.

◆ vector_hessian()

virtual void Function< dim, double >::vector_hessian ( const Point< dim > &  p,
std::vector< SymmetricTensor< 2, dim, double >> &  values
) const
virtualinherited

Compute the Hessian of all components at point p and store them in values.

◆ hessian_list()

virtual void Function< dim, double >::hessian_list ( const std::vector< Point< dim >> &  points,
std::vector< SymmetricTensor< 2, dim, double >> &  values,
const unsigned int  component = 0
) const
virtualinherited

Compute the Hessian of one component at a set of points.

◆ vector_hessian_list()

virtual void Function< dim, double >::vector_hessian_list ( const std::vector< Point< dim >> &  points,
std::vector< std::vector< SymmetricTensor< 2, dim, double >>> &  values
) const
virtualinherited

Compute the Hessians of all components at a set of points.

◆ get_time()

template<typename Number = double>
Number FunctionTime< Number >::get_time ( ) const
inherited

Return the value of the time variable.

◆ set_time()

template<typename Number = double>
virtual void FunctionTime< Number >::set_time ( const Number  new_time)
virtualinherited

Set the time to new_time, overwriting the old value.

◆ advance_time()

template<typename Number = double>
virtual void FunctionTime< Number >::advance_time ( const Number  delta_t)
virtualinherited

Advance the time by the given time step delta_t.

◆ subscribe()

void Subscriptor::subscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 136 of file subscriptor.cc.

◆ unsubscribe()

void Subscriptor::unsubscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Unsubscribes a user from the object.

Note
The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 156 of file subscriptor.cc.

◆ n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const
inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 301 of file subscriptor.h.

◆ list_subscribers() [1/2]

template<typename StreamType >
void Subscriptor::list_subscribers ( StreamType &  stream) const
inlineinherited

List the subscribers to the input stream.

Definition at line 318 of file subscriptor.h.

◆ list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const
inherited

List the subscribers to deallog.

Definition at line 204 of file subscriptor.cc.

◆ serialize()

template<class Archive >
void Subscriptor::serialize ( Archive &  ar,
const unsigned int  version
)
inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 310 of file subscriptor.h.

Member Data Documentation

◆ viscosity

template<int dim>
double Functions::StokesCosine< dim >::viscosity
private

The viscosity.

Definition at line 224 of file flow_function.h.

◆ reaction

template<int dim>
double Functions::StokesCosine< dim >::reaction
private

The reaction parameter.

Definition at line 226 of file flow_function.h.

◆ mean_pressure

template<int dim>
double Functions::FlowFunction< dim >::mean_pressure
protectedinherited

Mean value of the pressure to be added by derived classes.

Definition at line 127 of file flow_function.h.

◆ dimension

const unsigned int Function< dim, double >::dimension
staticinherited

Export the value of the template parameter as a static member constant. Sometimes useful for some expression template programming.

Definition at line 159 of file function.h.

◆ n_components

const unsigned int Function< dim, double >::n_components
inherited

Number of vector components.

Definition at line 164 of file function.h.


The documentation for this class was generated from the following files:
