ConstantTensorFunction< rank, dim, Number > Class Template Reference

#include <deal.II/base/tensor_function.h>

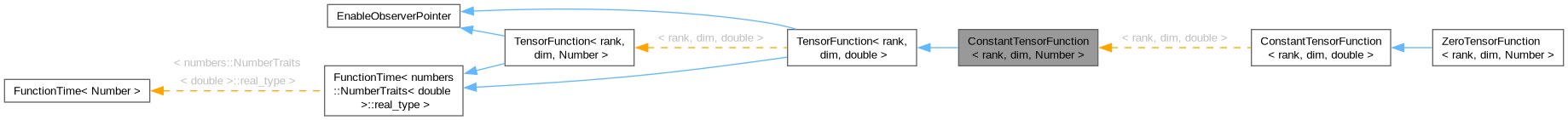

Inheritance diagram for ConstantTensorFunction< rank, dim, Number >:
[legend]

Public Types

using time_type = typename TensorFunction< rank, dim, Number >::time_type

using value_type = Tensor< rank, dim, Number >

using gradient_type = Tensor< rank+1, dim, Number >


Public Member Functions

 ConstantTensorFunction (const ::Tensor< rank, dim, Number > &value, const time_type initial_time=0.0)

virtual ~ConstantTensorFunction () override=default

virtual typename::TensorFunction< rank, dim, Number >::value_type value (const Point< dim > &p) const override

virtual void value_list (const std::vector< Point< dim > > &points, std::vector< typename ::TensorFunction< rank, dim, Number >::value_type > &values) const override

virtual typename::TensorFunction< rank, dim, Number >::gradient_type gradient (const Point< dim > &p) const override

virtual void gradient_list (const std::vector< Point< dim > > &points, std::vector< typename ::TensorFunction< rank, dim, Number >::gradient_type > &gradients) const override

virtual void value_list (const std::vector< Point< dim > > &points, std::vector< value_type > &values) const

virtual void gradient_list (const std::vector< Point< dim > > &points, std::vector< gradient_type > &gradients) const

Number get_time () const

virtual void set_time (const Number new_time)

virtual void advance_time (const Number delta_t)

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

Subscriptor functionality

Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const


Static Public Member Functions

static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)


Private Types

using map_value_type = decltype(counter_map)::value_type

using map_iterator = decltype(counter_map)::iterator


Private Member Functions

void check_no_subscribers () const noexcept


Private Attributes

const ::Tensor< rank, dim, Number > _value

Number time

std::atomic< unsigned intcounter

std::map< std::string, unsigned intcounter_map

std::vector< std::atomic< bool > * > validity_pointers

const std::type_info * object_info


Static Private Attributes

static std::mutex mutex


Detailed Description

template<int rank, int dim, typename Number = double>
class ConstantTensorFunction< rank, dim, Number >

Provide a tensor valued function which always returns a constant tensor value. Obviously, all derivates of this function are zero.

Definition at line 130 of file tensor_function.h.

Member Typedef Documentation

◆ time_type

template<int rank, int dim, typename Number = double>
using ConstantTensorFunction< rank, dim, Number >::time_type = typename TensorFunction<rank, dim, Number>::time_type

The scalar-valued real type used for representing time.

Definition at line 136 of file tensor_function.h.

◆ value_type

template<int rank, int dim, typename Number = double>
using TensorFunction< rank, dim, Number >::value_type = Tensor<rank, dim, Number>
inherited

Alias for the return types of the value function.

Definition at line 64 of file tensor_function.h.

◆ gradient_type

template<int rank, int dim, typename Number = double>
using TensorFunction< rank, dim, Number >::gradient_type = Tensor<rank + 1, dim, Number>
inherited

Alias for the return types of the gradient functions.

Definition at line 69 of file tensor_function.h.

◆ map_value_type

using Subscriptor::map_value_type = decltype(counter_map)::value_type
privateinherited

The data type used in counter_map.

Definition at line 230 of file subscriptor.h.

◆ map_iterator

using Subscriptor::map_iterator = decltype(counter_map)::iterator
privateinherited

The iterator type used in counter_map.

Definition at line 235 of file subscriptor.h.

Constructor & Destructor Documentation

◆ ConstantTensorFunction()

template<int rank, int dim, typename Number = double>
ConstantTensorFunction< rank, dim, Number >::ConstantTensorFunction ( const ::Tensor< rank, dim, Number > &  value,
const time_type  initial_time = 0.0
)

Constructor; takes the constant tensor value as an argument. The reference value is copied internally.

An initial value for the time variable may be specified, otherwise it defaults to zero.

◆ ~ConstantTensorFunction()

template<int rank, int dim, typename Number = double>
virtual ConstantTensorFunction< rank, dim, Number >::~ConstantTensorFunction ( )
overridevirtualdefault

Member Function Documentation

◆ value()

template<int rank, int dim, typename Number = double>
virtual typename::TensorFunction< rank, dim, Number >::value_type ConstantTensorFunction< rank, dim, Number >::value ( const Point< dim > &  p) const
overridevirtual

Return the value of the function at the given point.

Reimplemented from TensorFunction< rank, dim, Number >.

◆ value_list() [1/2]

template<int rank, int dim, typename Number = double>
virtual void ConstantTensorFunction< rank, dim, Number >::value_list ( const std::vector< Point< dim > > &  points,
std::vector< typename ::TensorFunction< rank, dim, Number >::value_type > &  values
) const
overridevirtual

◆ gradient()

template<int rank, int dim, typename Number = double>
virtual typename::TensorFunction< rank, dim, Number >::gradient_type ConstantTensorFunction< rank, dim, Number >::gradient ( const Point< dim > &  p) const
overridevirtual

Return the gradient of the function at the given point.

Reimplemented from TensorFunction< rank, dim, Number >.

◆ gradient_list() [1/2]

template<int rank, int dim, typename Number = double>
virtual void ConstantTensorFunction< rank, dim, Number >::gradient_list ( const std::vector< Point< dim > > &  points,
std::vector< typename ::TensorFunction< rank, dim, Number >::gradient_type > &  gradients
) const
overridevirtual

◆ value_list() [2/2]

template<int rank, int dim, typename Number = double>
virtual void TensorFunction< rank, dim, Number >::value_list ( const std::vector< Point< dim > > &  points,
std::vector< value_type > &  values
) const
virtualinherited

Set values to the point values of the function at the points. It is assumed that values already has the right size, i.e. the same size as the points array.

Reimplemented in TensorFunctionParser< rank, dim, Number >.

◆ gradient_list() [2/2]

template<int rank, int dim, typename Number = double>
virtual void TensorFunction< rank, dim, Number >::gradient_list ( const std::vector< Point< dim > > &  points,
std::vector< gradient_type > &  gradients
) const
virtualinherited

Set gradients to the gradients of the function at the points. It is assumed that values already has the right size, i.e. the same size as the points array.

◆ get_time()

template<typename Number = double>
Number FunctionTime< Number >::get_time ( ) const
inherited

Return the value of the time variable.

◆ set_time()

template<typename Number = double>
virtual void FunctionTime< Number >::set_time ( const Number  new_time)
virtualinherited

Set the time to new_time, overwriting the old value.

◆ advance_time()

template<typename Number = double>
virtual void FunctionTime< Number >::advance_time ( const Number  delta_t)
virtualinherited

Advance the time by the given time step delta_t.

◆ subscribe()

void Subscriptor::subscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 136 of file subscriptor.cc.

◆ unsubscribe()

void Subscriptor::unsubscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Unsubscribes a user from the object.

Note
The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 156 of file subscriptor.cc.

◆ n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const
inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 300 of file subscriptor.h.

◆ list_subscribers() [1/2]

template<typename StreamType >
void Subscriptor::list_subscribers ( StreamType &  stream) const
inlineinherited

List the subscribers to the input stream.

Definition at line 317 of file subscriptor.h.

◆ list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const
inherited

List the subscribers to deallog.

Definition at line 204 of file subscriptor.cc.

◆ serialize()

template<class Archive >
void Subscriptor::serialize ( Archive &  ar,
const unsigned int  version
)
inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 309 of file subscriptor.h.

◆ check_no_subscribers()

void Subscriptor::check_no_subscribers ( ) const
privatenoexceptinherited

Check that there are no objects subscribing to this object. If this check passes then it is safe to destroy the current object. It this check fails then this function will either abort or print an error message to deallog (by using the AssertNothrow mechanism), but will not throw an exception.

Note
Since this function is just a consistency check it does nothing in release mode.
If this function is called when there is an uncaught exception then, rather than aborting, this function prints an error message to the standard error stream and returns.

Definition at line 53 of file subscriptor.cc.

Member Data Documentation

◆ _value

template<int rank, int dim, typename Number = double>
const ::Tensor<rank, dim, Number> ConstantTensorFunction< rank, dim, Number >::_value
private

Definition at line 170 of file tensor_function.h.

◆ time

template<typename Number = double>
Number FunctionTime< Number >::time
privateinherited

Store the present time.

Definition at line 113 of file function_time.h.

◆ counter

std::atomic<unsigned int> Subscriptor::counter
mutableprivateinherited

Store the number of objects which subscribed to this object. Initially, this number is zero, and upon destruction it shall be zero again (i.e. all objects which subscribed should have unsubscribed again).

The creator (and owner) of an object is counted in the map below if HE manages to supply identification.

We use the mutable keyword in order to allow subscription to constant objects also.

This counter may be read from and written to concurrently in multithreaded code: hence we use the std::atomic class template.

Definition at line 219 of file subscriptor.h.

◆ counter_map

std::map<std::string, unsigned int> Subscriptor::counter_map
mutableprivateinherited

In this map, we count subscriptions for each different identification string supplied to subscribe().

Definition at line 225 of file subscriptor.h.

◆ validity_pointers

std::vector<std::atomic<bool> *> Subscriptor::validity_pointers
mutableprivateinherited

In this vector, we store pointers to the validity bool in the SmartPointer objects that subscribe to this class.

Definition at line 241 of file subscriptor.h.

◆ object_info

const std::type_info* Subscriptor::object_info
mutableprivateinherited

Pointer to the typeinfo object of this object, from which we can later deduce the class name. Since this information on the derived class is neither available in the destructor, nor in the constructor, we obtain it in between and store it here.

Definition at line 249 of file subscriptor.h.

◆ mutex

std::mutex Subscriptor::mutex
staticprivateinherited

A mutex used to ensure data consistency when printing out the list of subscribers.

Definition at line 271 of file subscriptor.h.


The documentation for this class was generated from the following file:
