#include <deal.II/lac/block_vector_base.h>

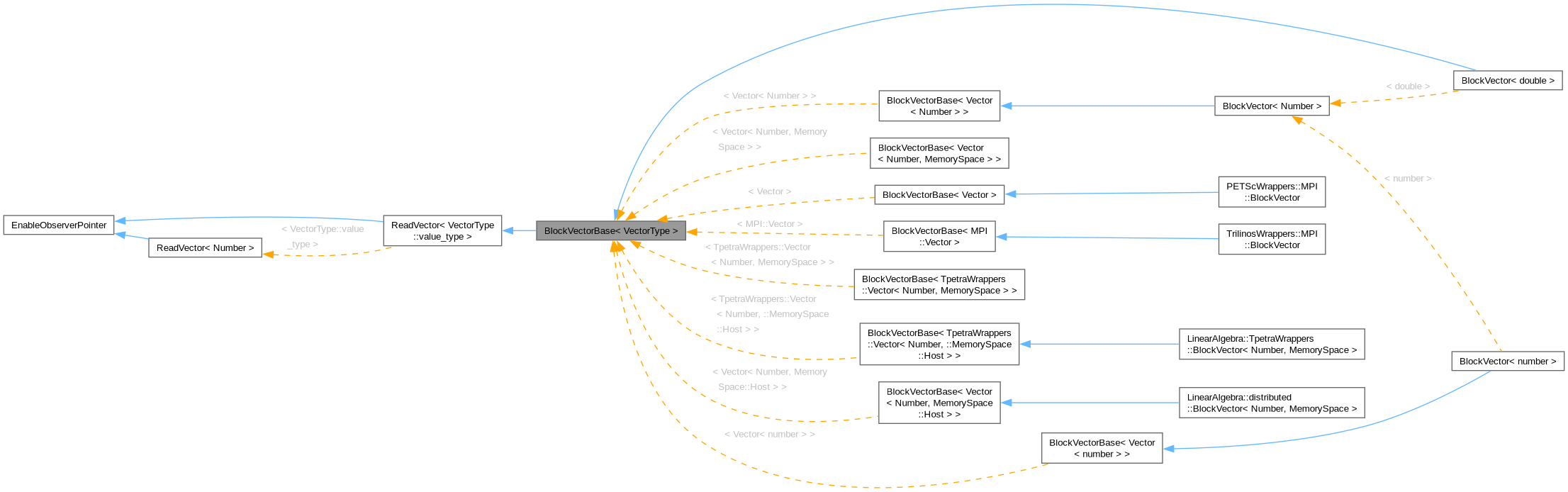

Inheritance diagram for BlockVectorBase< VectorType >:

[legend]

Public Types
using	BlockType = VectorType

using	value_type = typename BlockType::value_type

using	pointer = value_type *

using	const_pointer = const value_type *

using	iterator

using	const_iterator

using	reference = typename BlockType::reference

using	const_reference = typename BlockType::const_reference

using	size_type = types::global_dof_index

using	real_type = typename BlockType::real_type

Public Member Functions
	BlockVectorBase ()=default

	BlockVectorBase (const BlockVectorBase &)=default

	BlockVectorBase (BlockVectorBase &&) noexcept=default

void	collect_sizes ()

void	compress (VectorOperation::values operation)

BlockType &	block (const unsigned int i)

const BlockType &	block (const unsigned int i) const

const BlockIndices &	get_block_indices () const

unsigned int	n_blocks () const

virtual size_type	size () const override

std::size_t	locally_owned_size () const

IndexSet	locally_owned_elements () const

iterator	begin ()

const_iterator	begin () const

iterator	end ()

const_iterator	end () const

value_type	operator() (const size_type i) const

reference	operator() (const size_type i)

value_type	operator[] (const size_type i) const

reference	operator[] (const size_type i)

template<typename OtherNumber >
void	extract_subvector_to (const std::vector< size_type > &indices, std::vector< OtherNumber > &values) const

virtual void	extract_subvector_to (const ArrayView< const types::global_dof_index > &indices, ArrayView< value_type > &entries) const override

template<typename ForwardIterator , typename OutputIterator >
void	extract_subvector_to (ForwardIterator indices_begin, const ForwardIterator indices_end, OutputIterator values_begin) const

BlockVectorBase &	operator= (const value_type s)

BlockVectorBase &	operator= (const BlockVectorBase &V)

BlockVectorBase &	operator= (BlockVectorBase &&)=default

template<typename VectorType2 >
BlockVectorBase &	operator= (const BlockVectorBase< VectorType2 > &V)

BlockVectorBase &	operator= (const VectorType &v)

template<typename VectorType2 >
bool	operator== (const BlockVectorBase< VectorType2 > &v) const

value_type	operator* (const BlockVectorBase &V) const

real_type	norm_sqr () const

value_type	mean_value () const

real_type	l1_norm () const

real_type	l2_norm () const

real_type	linfty_norm () const

value_type	add_and_dot (const value_type a, const BlockVectorBase &V, const BlockVectorBase &W)

bool	in_local_range (const size_type global_index) const

bool	all_zero () const

bool	is_non_negative () const

BlockVectorBase &	operator+= (const BlockVectorBase &V)

BlockVectorBase &	operator-= (const BlockVectorBase &V)

template<typename Number >
void	add (const std::vector< size_type > &indices, const std::vector< Number > &values)

template<typename Number >
void	add (const std::vector< size_type > &indices, const Vector< Number > &values)

template<typename Number >
void	add (const size_type n_elements, const size_type indices, const Number values)

void	add (const value_type s)

void	add (const value_type a, const BlockVectorBase &V)

void	add (const value_type a, const BlockVectorBase &V, const value_type b, const BlockVectorBase &W)

void	sadd (const value_type s, const BlockVectorBase &V)

void	sadd (const value_type s, const value_type a, const BlockVectorBase &V)

void	sadd (const value_type s, const value_type a, const BlockVectorBase &V, const value_type b, const BlockVectorBase &W)

void	sadd (const value_type s, const value_type a, const BlockVectorBase &V, const value_type b, const BlockVectorBase &W, const value_type c, const BlockVectorBase &X)

BlockVectorBase &	operator*= (const value_type factor)

BlockVectorBase &	operator/= (const value_type factor)

template<class BlockVector2 >
void	scale (const BlockVector2 &v)

template<class BlockVector2 >
void	equ (const value_type a, const BlockVector2 &V)

void	update_ghost_values () const

std::size_t	memory_consumption () const

template<class Archive >
void	serialize (Archive &ar, const unsigned int version)

virtual void	extract_subvector_to (const ArrayView< const types::global_dof_index > &indices, ArrayView< VectorType::value_type > &elements) const=0

Subscriptor functionality
Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.
void	subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void	unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int	n_subscriptions () const

template<typename StreamType >
void	list_subscribers (StreamType &stream) const

void	list_subscribers () const

Static Public Member Functions
static ::ExceptionBase &	ExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBase &	ExcNoSubscriber (std::string arg1, std::string arg2)

Protected Attributes
std::vector< VectorType >	components

BlockIndices	block_indices

Private Types
using	map_value_type = decltype(counter_map)::value_type

using	map_iterator = decltype(counter_map)::iterator

Private Member Functions
void	check_no_subscribers () const noexcept

Private Attributes
std::atomic< unsigned int >	counter

std::map< std::string, unsigned int >	counter_map

std::vector< std::atomic< bool > * >	validity_pointers

const std::type_info *	object_info

Static Private Attributes
static std::mutex	mutex

Friends
template<typename N , bool C>
class	::internal::BlockVectorIterators::Iterator

template<typename >
class	BlockVectorBase

Detailed Description

template<typename VectorType>
class BlockVectorBase< VectorType >

A vector composed of several blocks each representing a vector of its own.

The BlockVector is a collection of vectors of a given type (e.g., deal.II Vector objects, PETScWrappers::MPI::Vector objects, etc.). Each of the vectors inside can have a different size.

The functionality of BlockVector includes everything a Vector can do, plus the access to a single Vector inside the BlockVector by block(i). It also has a complete random access iterator, just as the other Vector classes or the standard C++ library template std::vector. Therefore, all algorithms working on iterators also work with objects of this class.

While this base class implements most of the functionality by dispatching calls to its member functions to the respective functions on each of the individual blocks, this class does not actually allocate some memory or change the size of vectors. For this, the constructors, assignment operators and reinit() functions of derived classes are responsible. This class only handles the common part that is independent of the actual vector type the block vector is built on.

Accessing individual blocks, and resizing vectors

Apart from using this object as a whole, you can use each block separately as a vector, using the block() function. There is a single caveat: if you have changed the size of one or several blocks, you must call the function collect_sizes() of the block vector to update its internal structures.

Attention: Warning: If you change the sizes of single blocks without calling collect_sizes(), results may be unpredictable. The debug version does not check consistency here for performance reasons!

See also: Block (linear algebra)

Definition at line 441 of file block_vector_base.h.

Member Typedef Documentation

◆ BlockType

template<typename VectorType >

using BlockVectorBase< VectorType >::BlockType = VectorType

Typedef the type of the underlying vector.

Definition at line 448 of file block_vector_base.h.

◆ value_type

template<typename VectorType >

using BlockVectorBase< VectorType >::value_type = typename BlockType::value_type

Definition at line 460 of file block_vector_base.h.

◆ pointer

template<typename VectorType >

using BlockVectorBase< VectorType >::pointer = value_type *

Definition at line 461 of file block_vector_base.h.

◆ const_pointer

template<typename VectorType >

using BlockVectorBase< VectorType >::const_pointer = const value_type *

Definition at line 462 of file block_vector_base.h.

◆ iterator

template<typename VectorType >

using BlockVectorBase< VectorType >::iterator

Initial value:

::internal::BlockVectorIterators::Iterator<BlockVectorBase, false>

internal::BlockVectorIterators::Iterator

Definition block_vector_base.h:122

Definition at line 463 of file block_vector_base.h.

◆ const_iterator

template<typename VectorType >

using BlockVectorBase< VectorType >::const_iterator

Initial value:

::internal::BlockVectorIterators::Iterator<BlockVectorBase, true>

Definition at line 465 of file block_vector_base.h.

◆ reference

template<typename VectorType >

using BlockVectorBase< VectorType >::reference = typename BlockType::reference

Definition at line 467 of file block_vector_base.h.

◆ const_reference

template<typename VectorType >

using BlockVectorBase< VectorType >::const_reference = typename BlockType::const_reference

Definition at line 468 of file block_vector_base.h.

◆ size_type

template<typename VectorType >

using BlockVectorBase< VectorType >::size_type = types::global_dof_index

Definition at line 469 of file block_vector_base.h.

◆ real_type

template<typename VectorType >

using BlockVectorBase< VectorType >::real_type = typename BlockType::real_type

Declare a type that has holds real-valued numbers with the same precision as the template argument to this class. If the template argument of this class is a real data type, then real_type equals the template argument. If the template argument is a std::complex type then real_type equals the type underlying the complex numbers.

This alias is used to represent the return type of norms.

Definition at line 480 of file block_vector_base.h.

◆ map_value_type

using Subscriptor::map_value_type = decltype(counter_map)::value_type

privateinherited

The data type used in counter_map.

Definition at line 229 of file subscriptor.h.

◆ map_iterator

using Subscriptor::map_iterator = decltype(counter_map)::iterator

privateinherited

The iterator type used in counter_map.

Definition at line 234 of file subscriptor.h.

Constructor & Destructor Documentation

◆ BlockVectorBase() [1/3]

template<typename VectorType >

BlockVectorBase< VectorType >::BlockVectorBase ( )

default

Default constructor.

◆ BlockVectorBase() [2/3]

template<typename VectorType >

BlockVectorBase< VectorType >::BlockVectorBase ( const BlockVectorBase< VectorType > & )

default

Copy constructor.

◆ BlockVectorBase() [3/3]

template<typename VectorType >

BlockVectorBase< VectorType >::BlockVectorBase ( BlockVectorBase< VectorType > && )

defaultnoexcept

Move constructor. Each block of the argument vector is moved into the current object if the underlying VectorType is move-constructible, otherwise they are copied.

Member Function Documentation

◆ collect_sizes()

template<typename VectorType >

void BlockVectorBase< VectorType >::collect_sizes ( )

Update internal structures after resizing vectors. Whenever you reinited a block of a block vector, the internal data structures are corrupted. Therefore, you should call this function after all blocks got their new size.

◆ compress()

template<typename VectorType >

void BlockVectorBase< VectorType >::compress ( VectorOperation::values operation )

Call the compress() function on all the subblocks of the vector.

This functionality only needs to be called if using MPI based vectors and exists in other objects for compatibility.

See Compressing distributed objects for more information.

◆ block() [1/2]

template<typename VectorType >

BlockType & BlockVectorBase< VectorType >::block ( const unsigned int i )

Access to a single block.

◆ block() [2/2]

template<typename VectorType >

const BlockType & BlockVectorBase< VectorType >::block ( const unsigned int i ) const

Read-only access to a single block.

◆ get_block_indices()

template<typename VectorType >

const BlockIndices & BlockVectorBase< VectorType >::get_block_indices ( ) const

Return a reference on the object that describes the mapping between block and global indices. The use of this function is highly deprecated and it should vanish in one of the next versions

◆ n_blocks()

template<typename VectorType >

unsigned int BlockVectorBase< VectorType >::n_blocks ( ) const

Number of blocks.

◆ size()

template<typename VectorType >

virtual size_type BlockVectorBase< VectorType >::size ( ) const

overridevirtual

Return dimension of the vector. This is the sum of the dimensions of all components.

Implements ReadVector< VectorType::value_type >.

Reimplemented in LinearAlgebra::distributed::BlockVector< Number >.

◆ locally_owned_size()

template<typename VectorType >

std::size_t BlockVectorBase< VectorType >::locally_owned_size ( ) const

Return local dimension of the vector. This is the sum of the local dimensions (i.e., values stored on the current processor) of all components.

◆ locally_owned_elements()

template<typename VectorType >

IndexSet BlockVectorBase< VectorType >::locally_owned_elements ( ) const

Return an index set that describes which elements of this vector are owned by the current processor. Note that this index set does not include elements this vector may store locally as ghost elements but that are in fact owned by another processor. As a consequence, the index sets returned on different processors if this is a distributed vector will form disjoint sets that add up to the complete index set. Obviously, if a vector is created on only one processor, then the result would satisfy

vec.locally_owned_elements() == complete_index_set (vec.size())

complete_index_set

IndexSet complete_index_set(const IndexSet::size_type N)

Definition index_set.h:1204

For block vectors, this function returns the union of the locally owned elements of the individual blocks, shifted by their respective index offsets.

◆ begin() [1/2]

template<typename VectorType >

iterator BlockVectorBase< VectorType >::begin ( )

Return an iterator pointing to the first element.

◆ begin() [2/2]

template<typename VectorType >

const_iterator BlockVectorBase< VectorType >::begin ( ) const

Return an iterator pointing to the first element of a constant block vector.

◆ end() [1/2]

template<typename VectorType >

iterator BlockVectorBase< VectorType >::end ( )

Return an iterator pointing to the element past the end.

◆ end() [2/2]

template<typename VectorType >

const_iterator BlockVectorBase< VectorType >::end ( ) const

Return an iterator pointing to the element past the end of a constant block vector.

◆ operator()() [1/2]

template<typename VectorType >

value_type BlockVectorBase< VectorType >::operator() ( const size_type i ) const

Access components, returns U(i).

◆ operator()() [2/2]

template<typename VectorType >

reference BlockVectorBase< VectorType >::operator() ( const size_type i )

Access components, returns U(i) as a writeable reference.

◆ operator[]() [1/2]

template<typename VectorType >

value_type BlockVectorBase< VectorType >::operator[] ( const size_type i ) const

Access components, returns U(i).

Exactly the same as operator().

◆ operator[]() [2/2]

template<typename VectorType >

reference BlockVectorBase< VectorType >::operator[] ( const size_type i )

Access components, returns U(i) as a writeable reference.

Exactly the same as operator().

◆ extract_subvector_to() [1/4]

template<typename VectorType >

template<typename OtherNumber >

void BlockVectorBase< VectorType >::extract_subvector_to	(	const std::vector< size_type > &	indices,
		std::vector< OtherNumber > &	values ) const

Instead of getting individual elements of a vector via operator(), this function allows getting a whole set of elements at once. The indices of the elements to be read are stated in the first argument, the corresponding values are returned in the second.

If the current vector is called v, then this function is the equivalent to the code

for (unsigned int i=0; i<indices.size(); ++i)

values[i] = v[indices[i]];

Precondition: The sizes of the indices and values arrays must be identical.

◆ extract_subvector_to() [2/4]

template<typename VectorType >

virtual void BlockVectorBase< VectorType >::extract_subvector_to	(	const ArrayView< const types::global_dof_index > &	indices,
		ArrayView< value_type > &	entries ) const

overridevirtual

◆ extract_subvector_to() [3/4]

template<typename VectorType >

template<typename ForwardIterator , typename OutputIterator >

void BlockVectorBase< VectorType >::extract_subvector_to	(	ForwardIterator	indices_begin,
		const ForwardIterator	indices_end,
		OutputIterator	values_begin ) const

Instead of getting individual elements of a vector via operator(), this function allows getting a whole set of elements at once. In contrast to the previous function, this function obtains the indices of the elements by dereferencing all elements of the iterator range provided by the first two arguments, and puts the vector values into memory locations obtained by dereferencing a range of iterators starting at the location pointed to by the third argument.

If the current vector is called v, then this function is the equivalent to the code

ForwardIterator indices_p = indices_begin;
OutputIterator  values_p  = values_begin;
while (indices_p != indices_end)
{
  *values_p = v[*indices_p];
  ++indices_p;
  ++values_p;
}

Precondition: It must be possible to write into as many memory locations starting at values_begin as there are iterators between indices_begin and indices_end.

◆ operator=() [1/5]

template<typename VectorType >

BlockVectorBase & BlockVectorBase< VectorType >::operator= ( const value_type s )

Copy operator: fill all components of the vector with the given scalar value.

◆ operator=() [2/5]

template<typename VectorType >

BlockVectorBase & BlockVectorBase< VectorType >::operator= ( const BlockVectorBase< VectorType > & V )

Copy operator for arguments of the same type.

◆ operator=() [3/5]

template<typename VectorType >

BlockVectorBase & BlockVectorBase< VectorType >::operator= ( BlockVectorBase< VectorType > && )

default

Move assignment operator. Move each block of the given argument vector into the current object if VectorType is move-constructible, otherwise copy them.

◆ operator=() [4/5]

template<typename VectorType >

template<typename VectorType2 >

BlockVectorBase & BlockVectorBase< VectorType >::operator= ( const BlockVectorBase< VectorType2 > & V )

Copy operator for template arguments of different types.

◆ operator=() [5/5]

template<typename VectorType >

BlockVectorBase & BlockVectorBase< VectorType >::operator= ( const VectorType & v )

Copy operator from non-block vectors to block vectors.

◆ operator==()

template<typename VectorType >

template<typename VectorType2 >

bool BlockVectorBase< VectorType >::operator== ( const BlockVectorBase< VectorType2 > & v ) const

Check for equality of two block vector types. This operation is only allowed if the two vectors already have the same block structure.

◆ operator*()

template<typename VectorType >

value_type BlockVectorBase< VectorType >::operator* ( const BlockVectorBase< VectorType > & V ) const

\(U = U * V\): scalar product.

◆ norm_sqr()

template<typename VectorType >

real_type BlockVectorBase< VectorType >::norm_sqr ( ) const

Return the square of the \(l_2\)-norm.

◆ mean_value()

template<typename VectorType >

value_type BlockVectorBase< VectorType >::mean_value ( ) const

Return the mean value of the elements of this vector.

◆ l1_norm()

template<typename VectorType >

real_type BlockVectorBase< VectorType >::l1_norm ( ) const

Return the \(l_1\)-norm of the vector, i.e. the sum of the absolute values.

◆ l2_norm()

template<typename VectorType >

real_type BlockVectorBase< VectorType >::l2_norm ( ) const

Return the \(l_2\)-norm of the vector, i.e. the square root of the sum of the squares of the elements.

◆ linfty_norm()

template<typename VectorType >

real_type BlockVectorBase< VectorType >::linfty_norm ( ) const

Return the maximum absolute value of the elements of this vector, which is the \(l_\infty\)-norm of a vector.

◆ add_and_dot()

template<typename VectorType >

value_type BlockVectorBase< VectorType >::add_and_dot	(	const value_type	a,
		const BlockVectorBase< VectorType > &	V,
		const BlockVectorBase< VectorType > &	W )

Performs a combined operation of a vector addition and a subsequent inner product, returning the value of the inner product. In other words, the result of this function is the same as if the user called

this->add(a, V);

return_value = *this * W;

BlockVectorBase::add

void add(const std::vector< size_type > &indices, const std::vector< Number > &values)

The reason this function exists is that this operation involves less memory transfer than calling the two functions separately on deal.II's vector classes (Vector<Number> and LinearAlgebra::distributed::Vector<double>). This method only needs to load three vectors, this, V, W, whereas calling separate methods means to load the calling vector this twice. Since most vector operations are memory transfer limited, this reduces the time by 25% (or 50% if W equals this).

For complex-valued vectors, the scalar product in the second step is implemented as \(\left<v,w\right>=\sum_i v_i \bar{w_i}\).

◆ in_local_range()

template<typename VectorType >

bool BlockVectorBase< VectorType >::in_local_range ( const size_type global_index ) const

Return true if the given global index is in the local range of this processor. Asks the corresponding block.

◆ all_zero()

template<typename VectorType >

bool BlockVectorBase< VectorType >::all_zero ( ) const

Return whether the vector contains only elements with value zero. This function is mainly for internal consistency check and should seldom be used when not in debug mode since it uses quite some time.

◆ is_non_negative()

template<typename VectorType >

bool BlockVectorBase< VectorType >::is_non_negative ( ) const

Return true if the vector has no negative entries, i.e. all entries are zero or positive. This function is used, for example, to check whether refinement indicators are really all positive (or zero).

◆ operator+=()

template<typename VectorType >

BlockVectorBase & BlockVectorBase< VectorType >::operator+= ( const BlockVectorBase< VectorType > & V )

Addition operator. Fast equivalent to U.add(1, V).

◆ operator-=()

template<typename VectorType >

BlockVectorBase & BlockVectorBase< VectorType >::operator-= ( const BlockVectorBase< VectorType > & V )

Subtraction operator. Fast equivalent to U.add(-1, V).

◆ add() [1/6]

template<typename VectorType >

template<typename Number >

void BlockVectorBase< VectorType >::add	(	const std::vector< size_type > &	indices,
		const std::vector< Number > &	values )

A collective add operation: This function adds a whole set of values stored in values to the vector components specified by indices.

◆ add() [2/6]

template<typename VectorType >

template<typename Number >

void BlockVectorBase< VectorType >::add	(	const std::vector< size_type > &	indices,
		const Vector< Number > &	values )

This is a second collective add operation. As a difference, this function takes a deal.II vector of values.

◆ add() [3/6]

template<typename VectorType >

template<typename Number >

void BlockVectorBase< VectorType >::add	(	const size_type	n_elements,
		const size_type *	indices,
		const Number *	values )

Take an address where n_elements are stored contiguously and add them into the vector. Handles all cases which are not covered by the other two add() functions above.

◆ add() [4/6]

template<typename VectorType >

void BlockVectorBase< VectorType >::add ( const value_type s )

\(U(0-DIM)+=s\). Addition of s to all components. Note that s is a scalar and not a vector.

◆ add() [5/6]

template<typename VectorType >

void BlockVectorBase< VectorType >::add	(	const value_type	a,
		const BlockVectorBase< VectorType > &	V )

U+=a*V. Simple addition of a scaled vector.

◆ add() [6/6]

template<typename VectorType >

void BlockVectorBase< VectorType >::add	(	const value_type	a,
		const BlockVectorBase< VectorType > &	V,
		const value_type	b,
		const BlockVectorBase< VectorType > &	W )

U+=a*V+b*W. Multiple addition of scaled vectors.

◆ sadd() [1/4]

template<typename VectorType >

void BlockVectorBase< VectorType >::sadd	(	const value_type	s,
		const BlockVectorBase< VectorType > &	V )

U=s*U+V. Scaling and simple vector addition.

◆ sadd() [2/4]

template<typename VectorType >

void BlockVectorBase< VectorType >::sadd	(	const value_type	s,
		const value_type	a,
		const BlockVectorBase< VectorType > &	V )

U=s*U+a*V. Scaling and simple addition.

◆ sadd() [3/4]

template<typename VectorType >

void BlockVectorBase< VectorType >::sadd	(	const value_type	s,
		const value_type	a,
		const BlockVectorBase< VectorType > &	V,
		const value_type	b,
		const BlockVectorBase< VectorType > &	W )

U=s*U+a*V+b*W. Scaling and multiple addition.

◆ sadd() [4/4]

template<typename VectorType >

void BlockVectorBase< VectorType >::sadd	(	const value_type	s,
		const value_type	a,
		const BlockVectorBase< VectorType > &	V,
		const value_type	b,
		const BlockVectorBase< VectorType > &	W,
		const value_type	c,
		const BlockVectorBase< VectorType > &	X )

U=s*U+a*V+b*W+c*X. Scaling and multiple addition.

◆ operator*=()

template<typename VectorType >

BlockVectorBase & BlockVectorBase< VectorType >::operator*= ( const value_type factor )

Scale each element of the vector by a constant value.

◆ operator/=()

template<typename VectorType >

BlockVectorBase & BlockVectorBase< VectorType >::operator/= ( const value_type factor )

Scale each element of the vector by the inverse of the given value.

◆ scale()

template<typename VectorType >

template<class BlockVector2 >

void BlockVectorBase< VectorType >::scale ( const BlockVector2 & v )

Multiply each element of this vector by the corresponding element of v.

◆ equ()

template<typename VectorType >

template<class BlockVector2 >

void BlockVectorBase< VectorType >::equ	(	const value_type	a,
		const BlockVector2 &	V )

U=a*V. Assignment.

◆ update_ghost_values()

template<typename VectorType >

void BlockVectorBase< VectorType >::update_ghost_values ( ) const

Update the ghost values by calling update_ghost_values for each block.

◆ memory_consumption()

template<typename VectorType >

std::size_t BlockVectorBase< VectorType >::memory_consumption ( ) const

Determine an estimate for the memory consumption (in bytes) of this object.

◆ subscribe()

void Subscriptor::subscribe	(	std::atomic< bool > *const	validity,
		const std::string &	identifier = "" ) const

inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 135 of file subscriptor.cc.

◆ unsubscribe()

void Subscriptor::unsubscribe	(	std::atomic< bool > *const	validity,
		const std::string &	identifier = "" ) const

inherited

Unsubscribes a user from the object.

Note: The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 155 of file subscriptor.cc.

◆ n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const

inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 300 of file subscriptor.h.

◆ list_subscribers() [1/2]

template<typename StreamType >

void Subscriptor::list_subscribers ( StreamType & stream ) const

inlineinherited

List the subscribers to the input stream.

Definition at line 317 of file subscriptor.h.

◆ list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const

inherited

List the subscribers to deallog.

Definition at line 203 of file subscriptor.cc.

◆ serialize()

template<class Archive >

void Subscriptor::serialize	(	Archive &	ar,
		const unsigned int	version )

inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 309 of file subscriptor.h.

◆ check_no_subscribers()

void Subscriptor::check_no_subscribers ( ) const

privatenoexceptinherited

Check that there are no objects subscribing to this object. If this check passes then it is safe to destroy the current object. It this check fails then this function will either abort or print an error message to deallog (by using the AssertNothrow mechanism), but will not throw an exception.

Note: Since this function is just a consistency check it does nothing in release mode.; If this function is called when there is an uncaught exception then, rather than aborting, this function prints an error message to the standard error stream and returns.

Definition at line 52 of file subscriptor.cc.

◆ extract_subvector_to() [4/4]

virtual void ReadVector< VectorType::value_type >::extract_subvector_to	(	const ArrayView< const types::global_dof_index > &	indices,
		ArrayView< VectorType::value_type > &	elements ) const

pure virtualinherited

Extract a subset of the vector specified by indices into the output array elements.

Friends And Related Symbol Documentation

◆ ::internal::BlockVectorIterators::Iterator

template<typename VectorType >

template<typename N , bool C>

friend class ::internal::BlockVectorIterators::Iterator

friend

Definition at line 973 of file block_vector_base.h.

◆ BlockVectorBase

template<typename VectorType >

template<typename >

friend class BlockVectorBase

friend

Definition at line 976 of file block_vector_base.h.

Member Data Documentation

◆ components

template<typename VectorType >

std::vector<VectorType> BlockVectorBase< VectorType >::components

protected

Pointer to the array of components.

Definition at line 963 of file block_vector_base.h.

◆ block_indices

template<typename VectorType >

BlockIndices BlockVectorBase< VectorType >::block_indices

protected

Object managing the transformation between global indices and indices within the different blocks.

Definition at line 969 of file block_vector_base.h.

◆ counter

std::atomic<unsigned int> Subscriptor::counter

mutableprivateinherited

Store the number of objects which subscribed to this object. Initially, this number is zero, and upon destruction it shall be zero again (i.e. all objects which subscribed should have unsubscribed again).

The creator (and owner) of an object is counted in the map below if HE manages to supply identification.

We use the mutable keyword in order to allow subscription to constant objects also.

This counter may be read from and written to concurrently in multithreaded code: hence we use the std::atomic class template.

Definition at line 218 of file subscriptor.h.

◆ counter_map

std::map<std::string, unsigned int> Subscriptor::counter_map

mutableprivateinherited

In this map, we count subscriptions for each different identification string supplied to subscribe().

Definition at line 224 of file subscriptor.h.

◆ validity_pointers

std::vector<std::atomic<bool> *> Subscriptor::validity_pointers

mutableprivateinherited

In this vector, we store pointers to the validity bool in the SmartPointer objects that subscribe to this class.

Definition at line 240 of file subscriptor.h.

◆ object_info

const std::type_info* Subscriptor::object_info

mutableprivateinherited

Pointer to the typeinfo object of this object, from which we can later deduce the class name. Since this information on the derived class is neither available in the destructor, nor in the constructor, we obtain it in between and store it here.

Definition at line 248 of file subscriptor.h.

◆ mutex

std::mutex Subscriptor::mutex

staticprivateinherited

A mutex used to ensure data consistency when accessing the mutable members of this class. This lock is used in the subscribe() and unsubscribe() functions, as well as in list_subscribers().

Definition at line 271 of file subscriptor.h.

The documentation for this class was generated from the following file:

include/deal.II/lac/block_vector_base.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Accessing individual blocks, and resizing vectors

Member Typedef Documentation

◆ BlockType

◆ value_type

◆ pointer

◆ const_pointer

◆ iterator

◆ const_iterator

◆ reference

◆ const_reference

◆ size_type

◆ real_type

◆ map_value_type

◆ map_iterator

Constructor & Destructor Documentation

◆ BlockVectorBase() [1/3]

◆ BlockVectorBase() [2/3]

◆ BlockVectorBase() [3/3]

Member Function Documentation

◆ collect_sizes()

◆ compress()

◆ block() [1/2]

◆ block() [2/2]

◆ get_block_indices()

◆ n_blocks()

◆ size()

◆ locally_owned_size()

◆ locally_owned_elements()

◆ begin() [1/2]

◆ begin() [2/2]

◆ end() [1/2]

◆ end() [2/2]

◆ operator()() [1/2]

◆ operator()() [2/2]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ extract_subvector_to() [1/4]

◆ extract_subvector_to() [2/4]

◆ extract_subvector_to() [3/4]

◆ operator=() [1/5]

◆ operator=() [2/5]

◆ operator=() [3/5]

◆ operator=() [4/5]

◆ operator=() [5/5]

◆ operator==()

◆ operator*()

◆ norm_sqr()

◆ mean_value()

◆ l1_norm()

◆ l2_norm()

◆ linfty_norm()

◆ add_and_dot()

◆ in_local_range()

◆ all_zero()

◆ is_non_negative()

◆ operator+=()

◆ operator-=()

◆ add() [1/6]

◆ add() [2/6]

◆ add() [3/6]

◆ add() [4/6]

◆ add() [5/6]

◆ add() [6/6]

◆ sadd() [1/4]

◆ sadd() [2/4]

◆ sadd() [3/4]

◆ sadd() [4/4]

◆ operator*=()

◆ operator/=()

◆ scale()
