BlockSparsityPatternBase< SparsityPatternType > Class Template Reference

#include <deal.II/lac/block_sparsity_pattern.h>

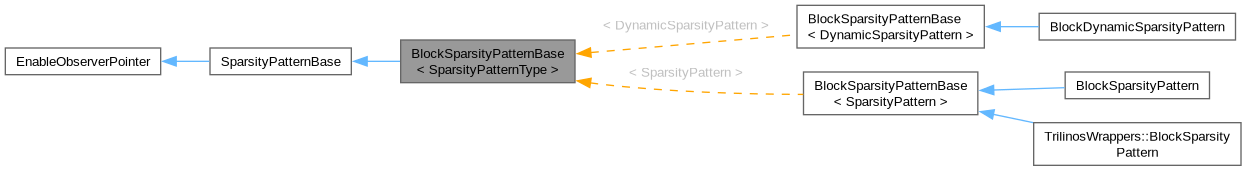

Inheritance diagram for BlockSparsityPatternBase< SparsityPatternType >:
[legend]

Public Types

using size_type = types::global_dof_index


Public Member Functions

 BlockSparsityPatternBase ()

 BlockSparsityPatternBase (const size_type n_block_rows, const size_type n_block_columns)

 BlockSparsityPatternBase (const BlockSparsityPatternBase &bsp)

void reinit (const size_type n_block_rows, const size_type n_block_columns)

BlockSparsityPatternBaseoperator= (const BlockSparsityPatternBase &)

void collect_sizes ()

SparsityPatternType & block (const size_type row, const size_type column)

const SparsityPatternType & block (const size_type row, const size_type column) const

const BlockIndicesget_row_indices () const

const BlockIndicesget_column_indices () const

void compress ()

size_type n_block_rows () const

size_type n_block_cols () const

bool empty () const

size_type max_entries_per_row () const

void add (const size_type i, const size_type j)

template<typename ForwardIterator >
void add_entries (const size_type row, ForwardIterator begin, ForwardIterator end, const bool indices_are_sorted=false)

virtual void add_row_entries (const size_type &row, const ArrayView< const size_type > &columns, const bool indices_are_sorted=false) override

bool exists (const size_type i, const size_type j) const

unsigned int row_length (const size_type row) const

size_type n_nonzero_elements () const

void print (std::ostream &out) const

void print_gnuplot (std::ostream &out) const

void print_svg (std::ostream &out) const

std::size_t memory_consumption () const

virtual void add_entries (const ArrayView< const std::pair< size_type, size_type > > &entries)

size_type n_rows () const

size_type n_cols () const

template<class Archive >
void serialize (Archive &ar, const unsigned int version)

Subscriptor functionality

Classes derived from Subscriptor provide a facility to subscribe to this object. This is mostly used by the SmartPointer class.

void subscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

void unsubscribe (std::atomic< bool > *const validity, const std::string &identifier="") const

unsigned int n_subscriptions () const

template<typename StreamType >
void list_subscribers (StreamType &stream) const

void list_subscribers () const


Static Public Member Functions

static ::ExceptionBaseExcNeedsCollectSizes ()

static ::ExceptionBaseExcIncompatibleRowNumbers (int arg1, int arg2, int arg3, int arg4)

static ::ExceptionBaseExcIncompatibleColNumbers (int arg1, int arg2, int arg3, int arg4)

static ::ExceptionBaseExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBaseExcNoSubscriber (std::string arg1, std::string arg2)


Static Public Attributes

static const size_type invalid_entry = SparsityPattern::invalid_entry


Protected Member Functions

virtual void resize (const size_type rows, const size_type cols)


Protected Attributes

size_type block_rows

size_type block_columns

Table< 2, std::unique_ptr< SparsityPatternType > > sub_objects

BlockIndices row_indices

BlockIndices column_indices

size_type rows

size_type cols


Private Types

using map_value_type = decltype(counter_map)::value_type

using map_iterator = decltype(counter_map)::iterator


Private Member Functions

size_type compute_n_rows () const

size_type compute_n_cols () const

void check_no_subscribers () const noexcept


Private Attributes

std::vector< size_typecounter_within_block

std::vector< std::vector< size_type > > block_column_indices

std::atomic< unsigned intcounter

std::map< std::string, unsigned intcounter_map

std::vector< std::atomic< bool > * > validity_pointers

const std::type_info * object_info


Static Private Attributes

static std::mutex mutex


Friends

template<typename number >
class BlockSparseMatrix


Detailed Description

template<typename SparsityPatternType>
class BlockSparsityPatternBase< SparsityPatternType >

This is the base class for block versions of the sparsity pattern and dynamic sparsity pattern classes. It has not much functionality, but only administrates an array of sparsity pattern objects and delegates work to them. It has mostly the same interface as has the SparsityPattern, and DynamicSparsityPattern, and simply transforms calls to its member functions to calls to the respective member functions of the member sparsity patterns.

The largest difference between the SparsityPattern and DynamicSparsityPattern classes and this class is that mostly, the matrices have different properties and you will want to work on the blocks making up the matrix rather than the whole matrix. You can access the different blocks using the block(row,col) function.

Attention: this object is not automatically notified if the size of one of its subobjects' size is changed. After you initialize the sizes of the subobjects, you will therefore have to call the collect_sizes() function of this class! Note that, of course, all sub-matrices in a (block-)row have to have the same number of rows, and that all sub-matrices in a (block-)column have to have the same number of columns.

You will in general not want to use this class, but one of the derived classes.

Todo:
Handle optimization of diagonal elements of the underlying SparsityPattern correctly.
See also
Block (linear algebra)

Definition at line 80 of file block_sparsity_pattern.h.

Member Typedef Documentation

◆ size_type

template<typename SparsityPatternType >
using BlockSparsityPatternBase< SparsityPatternType >::size_type = types::global_dof_index

Declare type for container size.

Definition at line 86 of file block_sparsity_pattern.h.

◆ map_value_type

using Subscriptor::map_value_type = decltype(counter_map)::value_type
privateinherited

The data type used in counter_map.

Definition at line 230 of file subscriptor.h.

◆ map_iterator

using Subscriptor::map_iterator = decltype(counter_map)::iterator
privateinherited

The iterator type used in counter_map.

Definition at line 235 of file subscriptor.h.

Constructor & Destructor Documentation

◆ BlockSparsityPatternBase() [1/3]

template<class SparsityPatternType >
BlockSparsityPatternBase< SparsityPatternType >::BlockSparsityPatternBase

Initialize the matrix empty, that is with no memory allocated. This is useful if you want such objects as member variables in other classes. You can make the structure usable by calling the reinit() function.

Definition at line 25 of file block_sparsity_pattern.cc.

◆ BlockSparsityPatternBase() [2/3]

template<class SparsityPatternType >
BlockSparsityPatternBase< SparsityPatternType >::BlockSparsityPatternBase ( const size_type  n_block_rows,
const size_type  n_block_columns
)

Initialize the matrix with the given number of block rows and columns. The blocks themselves are still empty, and you have to call collect_sizes() after you assign them sizes.

Definition at line 33 of file block_sparsity_pattern.cc.

◆ BlockSparsityPatternBase() [3/3]

template<class SparsityPatternType >
BlockSparsityPatternBase< SparsityPatternType >::BlockSparsityPatternBase ( const BlockSparsityPatternBase< SparsityPatternType > &  bsp)

Copy constructor. This constructor is only allowed to be called if the sparsity pattern to be copied is empty, i.e. there are no block allocated at present. This is for the same reason as for the SparsityPattern, see there for the details.

Definition at line 44 of file block_sparsity_pattern.cc.

Member Function Documentation

◆ reinit()

template<class SparsityPatternType >
void BlockSparsityPatternBase< SparsityPatternType >::reinit ( const size_type  n_block_rows,
const size_type  n_block_columns
)

Resize the matrix, by setting the number of block rows and columns. This deletes all blocks and replaces them with uninitialized ones, i.e. ones for which also the sizes are not yet set. You have to do that by calling the reinit() functions of the blocks themselves. Do not forget to call collect_sizes() after that on this object.

The reason that you have to set sizes of the blocks yourself is that the sizes may be varying, the maximum number of elements per row may be varying, etc. It is simpler not to reproduce the interface of the SparsityPattern class here but rather let the user call whatever function they desire.

Definition at line 60 of file block_sparsity_pattern.cc.

◆ operator=()

template<class SparsityPatternType >
BlockSparsityPatternBase< SparsityPatternType > & BlockSparsityPatternBase< SparsityPatternType >::operator= ( const BlockSparsityPatternBase< SparsityPatternType > &  bsp)

Copy operator. For this the same holds as for the copy constructor: it is declared, defined and fine to be called, but the latter only for empty objects.

Definition at line 78 of file block_sparsity_pattern.cc.

◆ collect_sizes()

template<class SparsityPatternType >
void BlockSparsityPatternBase< SparsityPatternType >::collect_sizes

This function collects the sizes of the sub-objects and stores them in internal arrays, in order to be able to relay global indices into the matrix to indices into the subobjects. You must call this function each time after you have changed the size of the sub-objects.

Definition at line 125 of file block_sparsity_pattern.cc.

◆ block() [1/2]

template<typename SparsityPatternType >
SparsityPatternType & BlockSparsityPatternBase< SparsityPatternType >::block ( const size_type  row,
const size_type  column
)
inline

Access the block with the given coordinates.

Definition at line 781 of file block_sparsity_pattern.h.

◆ block() [2/2]

template<typename SparsityPatternType >
const SparsityPatternType & BlockSparsityPatternBase< SparsityPatternType >::block ( const size_type  row,
const size_type  column
) const
inline

Access the block with the given coordinates. Version for constant objects.

Definition at line 793 of file block_sparsity_pattern.h.

◆ get_row_indices()

template<typename SparsityPatternType >
const BlockIndices & BlockSparsityPatternBase< SparsityPatternType >::get_row_indices
inline

Grant access to the object describing the distribution of row indices to the individual blocks.

Definition at line 806 of file block_sparsity_pattern.h.

◆ get_column_indices()

template<typename SparsityPatternType >
const BlockIndices & BlockSparsityPatternBase< SparsityPatternType >::get_column_indices
inline

Grant access to the object describing the distribution of column indices to the individual blocks.

Definition at line 815 of file block_sparsity_pattern.h.

◆ compress()

template<class SparsityPatternType >
void BlockSparsityPatternBase< SparsityPatternType >::compress

This function compresses the sparsity structures that this object represents. It simply calls compress for all sub-objects.

Definition at line 170 of file block_sparsity_pattern.cc.

◆ n_block_rows()

template<typename SparsityPatternType >
BlockSparsityPatternBase< SparsityPatternType >::size_type BlockSparsityPatternBase< SparsityPatternType >::n_block_rows
inline

Return the number of blocks in a column.

Definition at line 1044 of file block_sparsity_pattern.h.

◆ n_block_cols()

template<typename SparsityPatternType >
BlockSparsityPatternBase< SparsityPatternType >::size_type BlockSparsityPatternBase< SparsityPatternType >::n_block_cols
inline

Return the number of blocks in a row.

Definition at line 1035 of file block_sparsity_pattern.h.

◆ empty()

template<class SparsityPatternType >
bool BlockSparsityPatternBase< SparsityPatternType >::empty

Return whether the object is empty. It is empty if no memory is allocated, which is the same as that both dimensions are zero. This function is just the concatenation of the respective call to all sub- matrices.

Definition at line 181 of file block_sparsity_pattern.cc.

◆ max_entries_per_row()

template<class SparsityPatternType >
BlockSparsityPatternBase< SparsityPatternType >::size_type BlockSparsityPatternBase< SparsityPatternType >::max_entries_per_row

Return the maximum number of entries per row. It returns the maximal number of entries per row accumulated over all blocks in a row, and the maximum over all rows.

Definition at line 194 of file block_sparsity_pattern.cc.

◆ add()

template<typename SparsityPatternType >
void BlockSparsityPatternBase< SparsityPatternType >::add ( const size_type  i,
const size_type  j
)
inline

Add a nonzero entry to the matrix. This function may only be called for non-compressed sparsity patterns.

If the entry already exists, nothing bad happens.

This function simply finds out to which block (i,j) belongs and then relays to that block.

Definition at line 824 of file block_sparsity_pattern.h.

◆ add_entries() [1/2]

template<typename SparsityPatternType >
template<typename ForwardIterator >
void BlockSparsityPatternBase< SparsityPatternType >::add_entries ( const size_type  row,
ForwardIterator  begin,
ForwardIterator  end,
const bool  indices_are_sorted = false
)

Add several nonzero entries to the specified matrix row. This function may only be called for non-compressed sparsity patterns.

If some of the entries already exist, nothing bad happens.

This function simply finds out to which blocks (row,col) for col in the iterator range belong and then relays to those blocks.

Definition at line 843 of file block_sparsity_pattern.h.

◆ add_row_entries()

template<typename SparsityPatternType >
void BlockSparsityPatternBase< SparsityPatternType >::add_row_entries ( const size_type row,
const ArrayView< const size_type > &  columns,
const bool  indices_are_sorted = false
)
overridevirtual

Add several nonzero entries to the specified matrix row. This function may only be called for non-compressed sparsity patterns and works the same way as the overload which takes iterators.

Implements SparsityPatternBase.

Definition at line 987 of file block_sparsity_pattern.h.

◆ exists()

template<typename SparsityPatternType >
bool BlockSparsityPatternBase< SparsityPatternType >::exists ( const size_type  i,
const size_type  j
) const
inline

Check if a value at a certain position may be non-zero.

Definition at line 999 of file block_sparsity_pattern.h.

◆ row_length()

template<typename SparsityPatternType >
unsigned int BlockSparsityPatternBase< SparsityPatternType >::row_length ( const size_type  row) const
inline

Number of entries in a specific row, added up over all the blocks that form this row.

Definition at line 1017 of file block_sparsity_pattern.h.

◆ n_nonzero_elements()

template<class SparsityPatternType >
BlockSparsityPatternBase< SparsityPatternType >::size_type BlockSparsityPatternBase< SparsityPatternType >::n_nonzero_elements

Return the number of nonzero elements of this matrix. Actually, it returns the number of entries in the sparsity pattern; if any of the entries should happen to be zero, it is counted anyway.

This function may only be called if the matrix struct is compressed. It does not make too much sense otherwise anyway.

In the present context, it is the sum of the values as returned by the sub-objects.

Definition at line 213 of file block_sparsity_pattern.cc.

◆ print()

template<class SparsityPatternType >
void BlockSparsityPatternBase< SparsityPatternType >::print ( std::ostream &  out) const

Print the sparsity of the matrix. The output consists of one line per row of the format [i,j1,j2,j3,...]. i is the row number and jn are the allocated columns in this row.

Definition at line 226 of file block_sparsity_pattern.cc.

◆ print_gnuplot()

template<class SparsityPatternType >
void BlockSparsityPatternBase< SparsityPatternType >::print_gnuplot ( std::ostream &  out) const

Print the sparsity of the matrix in a format that gnuplot understands and which can be used to plot the sparsity pattern in a graphical way. This is the same functionality implemented for usual sparsity patterns, see SparsityPattern::print_gnuplot().

Definition at line 283 of file block_sparsity_pattern.cc.

◆ print_svg()

template<class SparsityPatternType >
void BlockSparsityPatternBase< SparsityPatternType >::print_svg ( std::ostream &  out) const

Print the sparsity of the matrix in svg format. This is the same functionality implemented for usual sparsity patterns, see SparsityPattern::print_svg().

Definition at line 310 of file block_sparsity_pattern.cc.

◆ memory_consumption()

template<class SparsityPatternType >
std::size_t BlockSparsityPatternBase< SparsityPatternType >::memory_consumption

Determine an estimate for the memory consumption (in bytes) of this object.

Definition at line 351 of file block_sparsity_pattern.cc.

◆ compute_n_rows()

template<class SparsityPatternType >
BlockSparsityPatternBase< SparsityPatternType >::size_type BlockSparsityPatternBase< SparsityPatternType >::compute_n_rows
private

Internal utility function for computing the number of rows.

Definition at line 97 of file block_sparsity_pattern.cc.

◆ compute_n_cols()

template<class SparsityPatternType >
BlockSparsityPatternBase< SparsityPatternType >::size_type BlockSparsityPatternBase< SparsityPatternType >::compute_n_cols
private

Internal utility function for computing the number of columns.

Definition at line 111 of file block_sparsity_pattern.cc.

◆ add_entries() [2/2]

template<typename SparsityPatternType >
void SparsityPatternBase::add_entries ( const ArrayView< const std::pair< size_type, size_type > > &  entries)
virtual

General function for adding new entries from an unsorted list of pairs.

This function is useful when multiple entries need to be added which do not correspond to a particular row, e.g., when assembling a flux sparsity pattern.

Reimplemented from SparsityPatternBase.

Definition at line 110 of file sparsity_pattern_base.cc.

◆ n_rows()

template<typename SparsityPatternType >
size_type SparsityPatternBase::n_rows ( ) const

Return number of rows of this matrix, which equals the dimension of the image space. It is the sum of rows of the (block-)rows of sub-matrices.

◆ n_cols()

template<typename SparsityPatternType >
size_type SparsityPatternBase::n_cols ( ) const

Return number of columns of this matrix, which equals the dimension of the range space. It is the sum of columns of the (block-)columns of sub- matrices.

◆ resize()

virtual void SparsityPatternBase::resize ( const size_type  rows,
const size_type  cols
)
protectedvirtualinherited

Internal function for updating the stored size of the sparsity pattern.

◆ subscribe()

void Subscriptor::subscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Subscribes a user of the object by storing the pointer validity. The subscriber may be identified by text supplied as identifier.

Definition at line 136 of file subscriptor.cc.

◆ unsubscribe()

void Subscriptor::unsubscribe ( std::atomic< bool > *const  validity,
const std::string &  identifier = ""
) const
inherited

Unsubscribes a user from the object.

Note
The identifier and the validity pointer must be the same as the one supplied to subscribe().

Definition at line 156 of file subscriptor.cc.

◆ n_subscriptions()

unsigned int Subscriptor::n_subscriptions ( ) const
inlineinherited

Return the present number of subscriptions to this object. This allows to use this class for reference counted lifetime determination where the last one to unsubscribe also deletes the object.

Definition at line 300 of file subscriptor.h.

◆ list_subscribers() [1/2]

template<typename StreamType >
void Subscriptor::list_subscribers ( StreamType &  stream) const
inlineinherited

List the subscribers to the input stream.

Definition at line 317 of file subscriptor.h.

◆ list_subscribers() [2/2]

void Subscriptor::list_subscribers ( ) const
inherited

List the subscribers to deallog.

Definition at line 204 of file subscriptor.cc.

◆ serialize()

template<class Archive >
void Subscriptor::serialize ( Archive &  ar,
const unsigned int  version
)
inlineinherited

Read or write the data of this object to or from a stream for the purpose of serialization using the BOOST serialization library.

This function does not actually serialize any of the member variables of this class. The reason is that what this class stores is only who subscribes to this object, but who does so at the time of storing the contents of this object does not necessarily have anything to do with who subscribes to the object when it is restored. Consequently, we do not want to overwrite the subscribers at the time of restoring, and then there is no reason to write the subscribers out in the first place.

Definition at line 309 of file subscriptor.h.

◆ check_no_subscribers()

void Subscriptor::check_no_subscribers ( ) const
privatenoexceptinherited

Check that there are no objects subscribing to this object. If this check passes then it is safe to destroy the current object. It this check fails then this function will either abort or print an error message to deallog (by using the AssertNothrow mechanism), but will not throw an exception.

Note
Since this function is just a consistency check it does nothing in release mode.
If this function is called when there is an uncaught exception then, rather than aborting, this function prints an error message to the standard error stream and returns.

Definition at line 53 of file subscriptor.cc.

Friends And Related Symbol Documentation

◆ BlockSparseMatrix

template<typename SparsityPatternType >
template<typename number >
friend class BlockSparseMatrix
friend

Typedef describing sparse matrices that consist of multiple blocks.

Typedef for the type used to describe sparse matrices that consist of multiple blocks.

Definition at line 423 of file block_sparsity_pattern.h.

Member Data Documentation

◆ invalid_entry

template<typename SparsityPatternType >
const size_type BlockSparsityPatternBase< SparsityPatternType >::invalid_entry = SparsityPattern::invalid_entry
static

Define a value which is used to indicate that a certain value in the colnums array is unused, i.e. does not represent a certain column number index.

This value is only an alias to the respective value of the SparsityPattern class.

Definition at line 96 of file block_sparsity_pattern.h.

◆ block_rows

template<typename SparsityPatternType >
size_type BlockSparsityPatternBase< SparsityPatternType >::block_rows
protected

Number of block rows.

Definition at line 371 of file block_sparsity_pattern.h.

◆ block_columns

template<typename SparsityPatternType >
size_type BlockSparsityPatternBase< SparsityPatternType >::block_columns
protected

Number of block columns.

Definition at line 376 of file block_sparsity_pattern.h.

◆ sub_objects

template<typename SparsityPatternType >
Table<2, std::unique_ptr<SparsityPatternType> > BlockSparsityPatternBase< SparsityPatternType >::sub_objects
protected

Array of sparsity patterns.

Definition at line 381 of file block_sparsity_pattern.h.

◆ row_indices

template<typename SparsityPatternType >
BlockIndices BlockSparsityPatternBase< SparsityPatternType >::row_indices
protected

Object storing and managing the transformation of row indices to indices of the sub-objects.

Definition at line 387 of file block_sparsity_pattern.h.

◆ column_indices

template<typename SparsityPatternType >
BlockIndices BlockSparsityPatternBase< SparsityPatternType >::column_indices
protected

Object storing and managing the transformation of column indices to indices of the sub-objects.

Definition at line 393 of file block_sparsity_pattern.h.

◆ counter_within_block

template<typename SparsityPatternType >
std::vector<size_type> BlockSparsityPatternBase< SparsityPatternType >::counter_within_block
private

Temporary vector for counting the elements written into the individual blocks when doing a collective add or set.

Definition at line 412 of file block_sparsity_pattern.h.

◆ block_column_indices

template<typename SparsityPatternType >
std::vector<std::vector<size_type> > BlockSparsityPatternBase< SparsityPatternType >::block_column_indices
private

Temporary vector for column indices on each block when writing local to global data on each sparse matrix.

Definition at line 418 of file block_sparsity_pattern.h.

◆ rows

size_type SparsityPatternBase::rows
protectedinherited

Number of rows that this sparsity pattern shall represent.

Definition at line 122 of file sparsity_pattern_base.h.

◆ cols

size_type SparsityPatternBase::cols
protectedinherited

Number of columns that this sparsity pattern shall represent.

Definition at line 127 of file sparsity_pattern_base.h.

◆ counter

std::atomic<unsigned int> Subscriptor::counter
mutableprivateinherited

Store the number of objects which subscribed to this object. Initially, this number is zero, and upon destruction it shall be zero again (i.e. all objects which subscribed should have unsubscribed again).

The creator (and owner) of an object is counted in the map below if HE manages to supply identification.

We use the mutable keyword in order to allow subscription to constant objects also.

This counter may be read from and written to concurrently in multithreaded code: hence we use the std::atomic class template.

Definition at line 219 of file subscriptor.h.

◆ counter_map

std::map<std::string, unsigned int> Subscriptor::counter_map
mutableprivateinherited

In this map, we count subscriptions for each different identification string supplied to subscribe().

Definition at line 225 of file subscriptor.h.

◆ validity_pointers

std::vector<std::atomic<bool> *> Subscriptor::validity_pointers
mutableprivateinherited

In this vector, we store pointers to the validity bool in the SmartPointer objects that subscribe to this class.

Definition at line 241 of file subscriptor.h.

◆ object_info

const std::type_info* Subscriptor::object_info
mutableprivateinherited

Pointer to the typeinfo object of this object, from which we can later deduce the class name. Since this information on the derived class is neither available in the destructor, nor in the constructor, we obtain it in between and store it here.

Definition at line 249 of file subscriptor.h.

◆ mutex

std::mutex Subscriptor::mutex
staticprivateinherited

A mutex used to ensure data consistency when printing out the list of subscribers.

Definition at line 271 of file subscriptor.h.


The documentation for this class was generated from the following files:
