#include <deal.II/base/polynomials_barycentric.h>

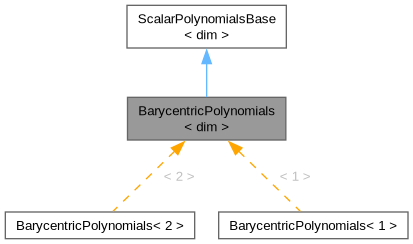

Inheritance diagram for BarycentricPolynomials< dim >:

[legend]

Public Types
using	PolyType = BarycentricPolynomial<dim>

using	GradType = std::array<PolyType, dim>

using	HessianType = std::array<GradType, dim>

using	ThirdDerivativesType = std::array<HessianType, dim>

using	FourthDerivativesType = std::array<ThirdDerivativesType, dim>

Public Member Functions
	BarycentricPolynomials (const std::vector< BarycentricPolynomial< dim > > &polynomials)

const BarycentricPolynomial< dim > &	operator[] (const std::size_t i) const

void	evaluate (const Point< dim > &unit_point, std::vector< double > &values, std::vector< Tensor< 1, dim > > &grads, std::vector< Tensor< 2, dim > > &grad_grads, std::vector< Tensor< 3, dim > > &third_derivatives, std::vector< Tensor< 4, dim > > &fourth_derivatives) const override

double	compute_value (const unsigned int i, const Point< dim > &p) const override

Tensor< 1, dim >	compute_1st_derivative (const unsigned int i, const Point< dim > &p) const override

Tensor< 2, dim >	compute_2nd_derivative (const unsigned int i, const Point< dim > &p) const override

Tensor< 3, dim >	compute_3rd_derivative (const unsigned int i, const Point< dim > &p) const override

Tensor< 4, dim >	compute_4th_derivative (const unsigned int i, const Point< dim > &p) const override

Tensor< 1, dim >	compute_grad (const unsigned int i, const Point< dim > &p) const override

Tensor< 2, dim >	compute_grad_grad (const unsigned int i, const Point< dim > &p) const override

virtual std::size_t	memory_consumption () const override

std::string	name () const override

virtual std::unique_ptr< ScalarPolynomialsBase< dim > >	clone () const override

template<int order>
Tensor< order, dim >	compute_derivative (const unsigned int i, const Point< dim > &p) const

unsigned int	n () const

virtual unsigned int	degree () const

Static Public Member Functions
static BarycentricPolynomials< dim >	get_fe_p_basis (const unsigned int degree)

Static Public Attributes
static constexpr unsigned int	dimension = dim

Protected Attributes
std::vector< PolyType >	polys

std::vector< GradType >	poly_grads

std::vector< HessianType >	poly_hessians

std::vector< ThirdDerivativesType >	poly_third_derivatives

std::vector< FourthDerivativesType >	poly_fourth_derivatives

Private Attributes
const unsigned int	polynomial_degree

const unsigned int	n_pols

Detailed Description

template<int dim>
class BarycentricPolynomials< dim >

Scalar polynomial space based on barycentric polynomials.

Definition at line 216 of file polynomials_barycentric.h.

Member Typedef Documentation

◆ PolyType

template<int dim>

using BarycentricPolynomials< dim >::PolyType = BarycentricPolynomial<dim>

Alias for polynomial type.

Definition at line 222 of file polynomials_barycentric.h.

◆ GradType

template<int dim>

using BarycentricPolynomials< dim >::GradType = std::array<PolyType, dim>

Alias for polynomial gradient type.

Definition at line 227 of file polynomials_barycentric.h.

◆ HessianType

template<int dim>

using BarycentricPolynomials< dim >::HessianType = std::array<GradType, dim>

Alias for polynomial hessian type.

Definition at line 232 of file polynomials_barycentric.h.

◆ ThirdDerivativesType

template<int dim>

using BarycentricPolynomials< dim >::ThirdDerivativesType = std::array<HessianType, dim>

Alias for polynomial third derivatives type.

Definition at line 237 of file polynomials_barycentric.h.

◆ FourthDerivativesType

template<int dim>

using BarycentricPolynomials< dim >::FourthDerivativesType = std::array<ThirdDerivativesType, dim>

Alias for polynomial fourth derivatives type.

Definition at line 242 of file polynomials_barycentric.h.

Constructor & Destructor Documentation

◆ BarycentricPolynomials()

template<int dim>

BarycentricPolynomials< dim >::BarycentricPolynomials ( const std::vector< BarycentricPolynomial< dim > > & polynomials )

Constructor taking the polynomial degree as input.

Definition at line 155 of file polynomials_barycentric.cc.

Member Function Documentation

◆ get_fe_p_basis()

template<int dim>

BarycentricPolynomials< dim > BarycentricPolynomials< dim >::get_fe_p_basis ( const unsigned int degree )

static

Get the standard Lagrange basis for a specified degree.

Definition at line 59 of file polynomials_barycentric.cc.

◆ operator[]()

template<int dim>

const BarycentricPolynomial< dim > & BarycentricPolynomials< dim >::operator[] ( const std::size_t i ) const

Access operator.

Definition at line 732 of file polynomials_barycentric.h.

◆ evaluate()

template<int dim>

void BarycentricPolynomials< dim >::evaluate	(	const Point< dim > &	unit_point,
		std::vector< double > &	values,
		std::vector< Tensor< 1, dim > > &	grads,
		std::vector< Tensor< 2, dim > > &	grad_grads,
		std::vector< Tensor< 3, dim > > &	third_derivatives,
		std::vector< Tensor< 4, dim > > &	fourth_derivatives ) const

overridevirtual

Compute the value and the derivatives of the polynomials at unit_point.

The size of the vectors must either be zero or equal n(). In the first case, the function will not compute these values.

If you need values or derivatives of all polynomials then use this function, rather than using any of the compute_value, compute_grad or compute_grad_grad functions, see below, in a loop over all tensor product polynomials.

Implements ScalarPolynomialsBase< dim >.

Definition at line 198 of file polynomials_barycentric.cc.

◆ compute_value()

template<int dim>

double BarycentricPolynomials< dim >::compute_value	(	const unsigned int	i,
		const Point< dim > &	p ) const

overridevirtual

Compute the value of the ith polynomial at unit point p.

Consider using evaluate() instead.

Implements ScalarPolynomialsBase< dim >.

Definition at line 256 of file polynomials_barycentric.cc.

◆ compute_1st_derivative()

template<int dim>

Tensor< 1, dim > BarycentricPolynomials< dim >::compute_1st_derivative	(	const unsigned int	i,
		const Point< dim > &	p ) const

overridevirtual

Compute the first derivative of the ith polynomial at unit point p.

Consider using evaluate() instead.

Implements ScalarPolynomialsBase< dim >.

Definition at line 267 of file polynomials_barycentric.cc.

◆ compute_2nd_derivative()

template<int dim>

Tensor< 2, dim > BarycentricPolynomials< dim >::compute_2nd_derivative	(	const unsigned int	i,
		const Point< dim > &	p ) const

overridevirtual

Compute the second derivative of the ith polynomial at unit point p.

Consider using evaluate() instead.

Implements ScalarPolynomialsBase< dim >.

Definition at line 280 of file polynomials_barycentric.cc.

◆ compute_3rd_derivative()

template<int dim>

Tensor< 3, dim > BarycentricPolynomials< dim >::compute_3rd_derivative	(	const unsigned int	i,
		const Point< dim > &	p ) const

overridevirtual

Compute the third derivative of the ith polynomial at unit point p.

Consider using evaluate() instead.

Implements ScalarPolynomialsBase< dim >.

Definition at line 295 of file polynomials_barycentric.cc.

◆ compute_4th_derivative()

template<int dim>

Tensor< 4, dim > BarycentricPolynomials< dim >::compute_4th_derivative	(	const unsigned int	i,
		const Point< dim > &	p ) const

overridevirtual

Compute the fourth derivative of the ith polynomial at unit point p.

Consider using evaluate() instead.

Implements ScalarPolynomialsBase< dim >.

Definition at line 311 of file polynomials_barycentric.cc.

◆ compute_grad()

template<int dim>

Tensor< 1, dim > BarycentricPolynomials< dim >::compute_grad	(	const unsigned int	i,
		const Point< dim > &	p ) const

overridevirtual

Compute the gradient of the ith polynomial at unit point p.

Consider using evaluate() instead.

Implements ScalarPolynomialsBase< dim >.

Definition at line 329 of file polynomials_barycentric.cc.

◆ compute_grad_grad()

template<int dim>

Tensor< 2, dim > BarycentricPolynomials< dim >::compute_grad_grad	(	const unsigned int	i,
		const Point< dim > &	p ) const

overridevirtual

Compute the second derivative (grad_grad) of the ith polynomial at unit point p.

Consider using evaluate() instead.

Implements ScalarPolynomialsBase< dim >.

Definition at line 339 of file polynomials_barycentric.cc.

◆ memory_consumption()

template<int dim>

std::size_t BarycentricPolynomials< dim >::memory_consumption ( ) const

overridevirtual

Return an estimate (in bytes) for the memory consumption of this object.

Reimplemented from ScalarPolynomialsBase< dim >.

Definition at line 367 of file polynomials_barycentric.cc.

◆ name()

template<int dim>

std::string BarycentricPolynomials< dim >::name ( ) const

overridevirtual

Return the name of the space.

Implements ScalarPolynomialsBase< dim >.

Definition at line 358 of file polynomials_barycentric.cc.

◆ clone()

template<int dim>

std::unique_ptr< ScalarPolynomialsBase< dim > > BarycentricPolynomials< dim >::clone ( ) const

overridevirtual

A sort of virtual copy constructor, this function returns a copy of the polynomial space object. Derived classes need to override the function here in this base class and return an object of the same type as the derived class.

Some places in the library, for example the constructors of FE_Poly, need to make copies of polynomial spaces without knowing their exact type. They do so through this function.

Implements ScalarPolynomialsBase< dim >.

Definition at line 349 of file polynomials_barycentric.cc.

◆ compute_derivative()

template<int dim>

template<int order>

Tensor< order, dim > ScalarPolynomialsBase< dim >::compute_derivative	(	const unsigned int	i,
		const Point< dim > &	p ) const

inlineinherited

Compute the orderth derivative of the ith polynomial at unit point p.

Consider using evaluate() instead.

Template Parameters

order The order of the derivative.

Definition at line 258 of file scalar_polynomials_base.h.

◆ n()

template<int dim>

unsigned int ScalarPolynomialsBase< dim >::n ( ) const

inlineinherited

Return the number of polynomials.

Definition at line 239 of file scalar_polynomials_base.h.

◆ degree()

template<int dim>

unsigned int ScalarPolynomialsBase< dim >::degree ( ) const

inlinevirtualinherited

Return the highest polynomial degree of polynomials represented by this class. A derived class may override this if its value is different from my_degree.

Reimplemented in PolynomialsP< dim >.

Definition at line 248 of file scalar_polynomials_base.h.

Member Data Documentation

◆ dimension

template<int dim>

unsigned int BarycentricPolynomials< dim >::dimension = dim

staticconstexpr

Make the dimension available to the outside.

Definition at line 247 of file polynomials_barycentric.h.

◆ polys

template<int dim>

std::vector<PolyType> BarycentricPolynomials< dim >::polys

protected

Definition at line 343 of file polynomials_barycentric.h.

◆ poly_grads

template<int dim>

std::vector<GradType> BarycentricPolynomials< dim >::poly_grads

protected

Definition at line 344 of file polynomials_barycentric.h.

◆ poly_hessians

template<int dim>

std::vector<HessianType> BarycentricPolynomials< dim >::poly_hessians

protected

Definition at line 345 of file polynomials_barycentric.h.

◆ poly_third_derivatives

template<int dim>

std::vector<ThirdDerivativesType> BarycentricPolynomials< dim >::poly_third_derivatives

protected

Definition at line 346 of file polynomials_barycentric.h.

◆ poly_fourth_derivatives

template<int dim>

std::vector<FourthDerivativesType> BarycentricPolynomials< dim >::poly_fourth_derivatives

protected

Definition at line 347 of file polynomials_barycentric.h.

◆ polynomial_degree

template<int dim>

const unsigned int ScalarPolynomialsBase< dim >::polynomial_degree

privateinherited

The highest polynomial degree of this functions represented by this object.

Definition at line 227 of file scalar_polynomials_base.h.

◆ n_pols

template<int dim>

const unsigned int ScalarPolynomialsBase< dim >::n_pols

privateinherited

The number of polynomials represented by this object.

Definition at line 232 of file scalar_polynomials_base.h.

The documentation for this class was generated from the following files:

include/deal.II/base/polynomials_barycentric.h
source/base/polynomials_barycentric.cc

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Attributes

Private Attributes

Detailed Description

Member Typedef Documentation

◆ PolyType

◆ GradType

◆ HessianType

◆ ThirdDerivativesType

◆ FourthDerivativesType

Constructor & Destructor Documentation

◆ BarycentricPolynomials()

Member Function Documentation

◆ get_fe_p_basis()

◆ operator[]()

◆ evaluate()

◆ compute_value()

◆ compute_1st_derivative()

◆ compute_2nd_derivative()

◆ compute_3rd_derivative()

◆ compute_4th_derivative()

◆ compute_grad()

◆ compute_grad_grad()

◆ memory_consumption()

◆ name()

◆ clone()

◆ compute_derivative()

◆ n()

◆ degree()

Member Data Documentation

◆ dimension

◆ polys

◆ poly_grads

◆ poly_hessians

◆ poly_third_derivatives

◆ poly_fourth_derivatives

◆ polynomial_degree

◆ n_pols
