internal::TriangulationImplementation::CellTypeBase Struct Reference

#include <deal.II/grid/connectivity.h>

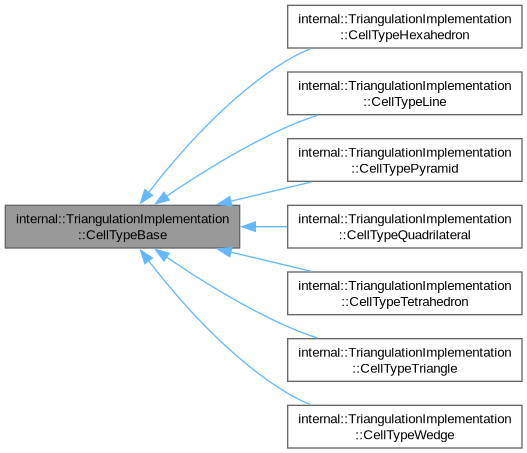

Inheritance diagram for internal::TriangulationImplementation::CellTypeBase:

Public Member Functions

virtual ~CellTypeBase ()=default

virtual unsigned int n_entities (const unsigned int d) const

virtual ::ArrayView< const unsigned intvertices_of_entity (const unsigned int d, const unsigned int e) const

virtual ReferenceCell type_of_entity (const unsigned int d, const unsigned int e) const

virtual unsigned int n_lines_of_surface (const unsigned int face) const

virtual unsigned int nth_line_of_surface (const unsigned int line, const unsigned int face) const

virtual const std::array< unsigned int, 2 > & vertices_of_nth_line_of_surface (const unsigned int line, const unsigned int face) const


Detailed Description

Interface of geometric cell entities with the focus on creating a reduced connectivity table.

Definition at line 39 of file connectivity.h.

Constructor & Destructor Documentation

◆ ~CellTypeBase()

virtual internal::TriangulationImplementation::CellTypeBase::~CellTypeBase ( )
virtualdefault

Default destructor.

Member Function Documentation

◆ n_entities()

◆ vertices_of_entity()

virtual ::ArrayView< const unsigned int > internal::TriangulationImplementation::CellTypeBase::vertices_of_entity ( const unsigned int d,
const unsigned int e ) const
inline

Number of vertices of the e-th sub-entity of dimension d.

Definition at line 62 of file connectivity.h.

◆ type_of_entity()

◆ n_lines_of_surface()

virtual unsigned int internal::TriangulationImplementation::CellTypeBase::n_lines_of_surface ( const unsigned int face) const
inlinevirtual

◆ nth_line_of_surface()

virtual unsigned int internal::TriangulationImplementation::CellTypeBase::nth_line_of_surface ( const unsigned int line,
const unsigned int face ) const
inlinevirtual

◆ vertices_of_nth_line_of_surface()

virtual const std::array< unsigned int, 2 > & internal::TriangulationImplementation::CellTypeBase::vertices_of_nth_line_of_surface ( const unsigned int line,
const unsigned int face ) const
inlinevirtual

The documentation for this struct was generated from the following file:
