Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload Class Reference

#include <deal.II/base/mpi_compute_index_owner_internal.h>

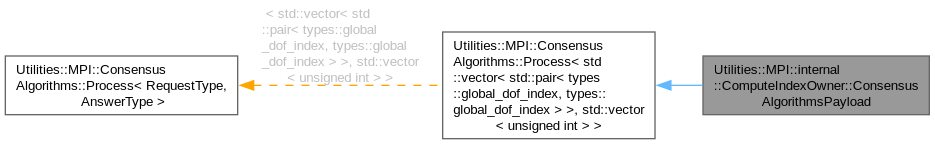

Inheritance diagram for Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload:

Public Member Functions
	ConsensusAlgorithmsPayload (const IndexSet &owned_indices, const IndexSet &indices_to_look_up, const MPI_Comm comm, std::vector< unsigned int > &owning_ranks, const bool track_index_requests=false)
virtual void	answer_request (const unsigned int other_rank, const std::vector< std::pair< types::global_dof_index, types::global_dof_index > > &buffer_recv, std::vector< unsigned int > &request_buffer) override
virtual std::vector< unsigned int >	compute_targets () override
virtual void	create_request (const unsigned int other_rank, std::vector< std::pair< types::global_dof_index, types::global_dof_index > > &send_buffer) override
virtual void	read_answer (const unsigned int other_rank, const std::vector< unsigned int > &recv_buffer) override
std::map< unsigned int, IndexSet >	get_requesters ()

Public Attributes
const IndexSet &	owned_indices
const IndexSet &	indices_to_look_up
const MPI_Comm	comm
const unsigned int	my_rank
const unsigned int	n_procs
const bool	track_index_requests
std::vector< unsigned int > &	owning_ranks
std::vector< std::vector< std::pair< unsigned int, std::vector< std::pair< types::global_dof_index, types::global_dof_index > > > > >	requesters
Dictionary	dict
std::map< unsigned int, std::pair< std::vector< types::global_dof_index >, std::vector< unsigned int > > >	indices_to_look_up_by_dict_rank

Private Member Functions
void	append_index_origin (const types::global_dof_index index_within_dictionary, const unsigned int rank_of_request, const unsigned int rank_of_owner, unsigned int &owner_index_guess)

Detailed Description

Specialization of ConsensusAlgorithms::Process for the context of Utilities::MPI::compute_index_owner() and Utilities::MPI::Partitioner::set_ghost_indices() with additional payload.

Definition at line 216 of file mpi_compute_index_owner_internal.h.

Constructor & Destructor Documentation

ConsensusAlgorithmsPayload()

Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::ConsensusAlgorithmsPayload	(	const IndexSet &	owned_indices,
		const IndexSet &	indices_to_look_up,
		const MPI_Comm	comm,
		std::vector< unsigned int > &	owning_ranks,
		const bool	track_index_requests = false )

Constructor.

Definition at line 455 of file mpi_compute_index_owner_internal.cc.

Member Function Documentation

answer_request()

void Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::answer_request ( const unsigned int other_rank, const std::vector< std::pair< types::global_dof_index, types::global_dof_index > > & buffer_recv, std::vector< unsigned int > & request_buffer )

overridevirtual

Implementation of Utilities::MPI::ConsensusAlgorithms::Process::answer_request(), adding the owner of a particular index in request_buffer (and keeping track of who requested a particular index in case that information is also desired).

Reimplemented from Utilities::MPI::ConsensusAlgorithms::Process< std::vector< std::pair< types::global_dof_index, types::global_dof_index > >, std::vector< unsigned int > >.

Definition at line 476 of file mpi_compute_index_owner_internal.cc.

compute_targets()

std::vector< unsigned int > Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::compute_targets ( )

overridevirtual

Implementation of Utilities::MPI::ConsensusAlgorithms::Process::compute_targets().

Implements Utilities::MPI::ConsensusAlgorithms::Process< std::vector< std::pair< types::global_dof_index, types::global_dof_index > >, std::vector< unsigned int > >.

Definition at line 501 of file mpi_compute_index_owner_internal.cc.

create_request()

void Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::create_request ( const unsigned int other_rank, std::vector< std::pair< types::global_dof_index, types::global_dof_index > > & send_buffer )

overridevirtual

Implementation of Utilities::MPI::ConsensusAlgorithms::Process::create_request().

Reimplemented from Utilities::MPI::ConsensusAlgorithms::Process< std::vector< std::pair< types::global_dof_index, types::global_dof_index > >, std::vector< unsigned int > >.

Definition at line 541 of file mpi_compute_index_owner_internal.cc.

read_answer()

void Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::read_answer ( const unsigned int other_rank, const std::vector< unsigned int > & recv_buffer )

overridevirtual

Implementation of Utilities::MPI::ConsensusAlgorithms::Process::read_answer().

Reimplemented from Utilities::MPI::ConsensusAlgorithms::Process< std::vector< std::pair< types::global_dof_index, types::global_dof_index > >, std::vector< unsigned int > >.

Definition at line 561 of file mpi_compute_index_owner_internal.cc.

get_requesters()

std::map< unsigned int, IndexSet > Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::get_requesters

(

)

Resolve the origin of the requests by sending the information accumulated in terms of the dictionary owners during the run of the consensus algorithm back to the owner in the original IndexSet. This requires some point-to-point communication.

Returns

Map of processors and associated ranges of indices that are requested from the current rank

Definition at line 575 of file mpi_compute_index_owner_internal.cc.

append_index_origin()

void Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::append_index_origin ( const types::global_dof_index index_within_dictionary, const unsigned int rank_of_request, const unsigned int rank_of_owner, unsigned int & owner_index_guess )

private

Stores the index request in the requesters field. Given the rank of the owner, we start with a guess for the index at the owner's site. This is because we typically might look up on the same rank several times in a row, hence avoiding the binary search in Dictionary::get_owning_rank_index()). Once we know the index at the owner, we fill the vector entry with the rank of the request. Here, we utilize the fact that requests are processed rank-by-rank, so we can simply look at the end of the vector whether there is already some data stored or not. Finally, we build ranges, again using that the index list is sorted and we therefore only need to append at the end.

Definition at line 740 of file mpi_compute_index_owner_internal.cc.

Member Data Documentation

owned_indices

const IndexSet& Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::owned_indices

The index space which describes the locally owned space.

Definition at line 235 of file mpi_compute_index_owner_internal.h.

indices_to_look_up

const IndexSet& Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::indices_to_look_up

The indices which are "ghosts" on a given rank and should be looked up in terms of their owner rank from owned_indices.

Definition at line 241 of file mpi_compute_index_owner_internal.h.

comm

const MPI_Comm Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::comm

The underlying MPI communicator.

Definition at line 246 of file mpi_compute_index_owner_internal.h.

my_rank

const unsigned int Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::my_rank

The present MPI rank.

Definition at line 251 of file mpi_compute_index_owner_internal.h.

n_procs

const unsigned int Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::n_procs

The total number of ranks participating in the MPI communicator comm.

Definition at line 257 of file mpi_compute_index_owner_internal.h.

track_index_requests

const bool Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::track_index_requests

Controls whether we should record a list of ranks who sent requests to the present MPI process when looking up their remote indices, and what those indices were. If true, it will be added into requesters and can be queried by get_requesters().

Definition at line 265 of file mpi_compute_index_owner_internal.h.

owning_ranks

std::vector<unsigned int>& Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::owning_ranks

The result of the index owner computation: To each index contained in indices_to_look_up, this vector contains the MPI rank of the owner in owned_indices.

Definition at line 272 of file mpi_compute_index_owner_internal.h.

requesters

std::vector<std::vector< std::pair<unsigned int, std::vector<std::pair<types::global_dof_index, types::global_dof_index> > > > > Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::requesters

Keeps track of the origin of the requests. The layout of the data structure is as follows: The outermost vector has as many entries as Dictionary::actually_owning_rank_list and represents the information we should send back to the owners from the present dictionary entry. The second vector then collects a list of MPI ranks that have requested data, using the rank in the first pair entry and a list of index ranges as the second entry.

Definition at line 287 of file mpi_compute_index_owner_internal.h.

dict

Dictionary Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::dict

The dictionary handling the requests.

Definition at line 292 of file mpi_compute_index_owner_internal.h.

indices_to_look_up_by_dict_rank

std::map<unsigned int, std::pair<std::vector<types::global_dof_index>, std::vector<unsigned int> > > Utilities::MPI::internal::ComputeIndexOwner::ConsensusAlgorithmsPayload::indices_to_look_up_by_dict_rank

Array to collect the indices to look up (first vector) and their local index among indices (second vector), sorted by the rank in the dictionary.

Definition at line 302 of file mpi_compute_index_owner_internal.h.

---

The documentation for this class was generated from the following files:

• include/deal.II/base/mpi_compute_index_owner_internal.h
• source/base/mpi_compute_index_owner_internal.cc
